ABB 1SFA619500R1072 Machine Stop - IP66 Front, 24–300 V
Part Number: 1SFA619500R1072
Quick Summary
Machine Stop from ABB is a compact, maintained mushroom push button for safe machine shutdown in control panels. Its compact form reduces wiring time and cabinet space, addressing the common challenge of integrating emergency-stop devices in cramped layouts. It carries CE and UKCA declarations and front protection up to IP66, plus robust EN safety and environmental ratings for harsh industrial environments. Designed for 24 to 300 V operation with 1NO+1NC contacts, it supports both DC and AC control schemes across standard industrial networks. As part of ABB's pilot devices family, it enables quick installation, predictable stop behavior, and scalable integration with automation systems.
Product Information
Extended Description

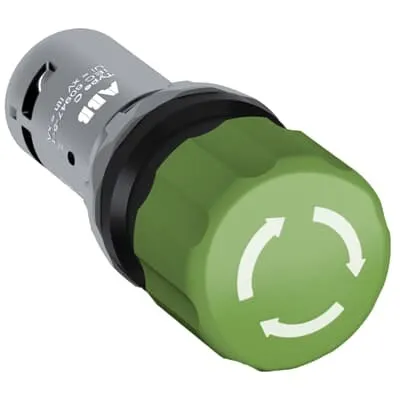

1SFA619500R1072 ABB: The CE3T-10G-11 Machine Stop is: Compact - Machine Stop - Twist release - Maintained - Mushroom 30mm - Green - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 24 ... 300 V
This Machine Stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536500000
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.038 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Actuator Type
Mushroom 30mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Twist release
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
39f1bca0-7fc0-4490-8c0a-2a34efdbc81a Sweden (SE)
Simplified SCIP
6a704f1a-a340-4503-8391-a4852e3e7f6d Germany (DE) | 6c1a5a65-0778-41a0-a310-ccb58831a6e5 Germany (DE) | f12f049a-1fe8-484f-b35e-8a2f817a364a Germany (DE) | 66b4813d-a2af-471b-ad1e-2361a9b771d5 Germany (DE) | a4358fe0-7ef9-4f3d-8ed6-4aa4eaa78682 France (FR) | 45fa71ef-53bd-4aa8-8944-cd75fe322ee8 Hungary (HU) | 41584d25-06d1-48b6-a507-cae20637c06d Spain (ES) | 8e9c3d94-177c-4c9e-97ba-608f0645cd5f France (FR) | 0d3a2de7-91d2-407d-922c-89acf5fcb71c Belgium (BE) | 6b7decd8-cd79-4c0c-b207-ff081b2d5635 Estonia (EE) | fd489a47-be42-4106-a348-7ead92946115 Czech Republic (CZ) | 976246e7-3fcf-4e77-843f-996a9f1f6cc1 Greece (GR) | edead3a5-8459-4eb6-870a-e40481529047 Netherlands (NL) | a5db6e3b-cce1-4fcd-aaab-35256608fb10 Hungary (HU) | 8e23c1ee-c913-41a5-8cd3-a4ec7fef28c1 Poland (PL) | d47ff92c-de72-409b-96ab-7ab4792d0b11 Bulgaria (BG) | 7411ff55-ee61-40a9-9a29-fcd0573f924d Portugal (PT) | 3c06a441-e0b0-4d2e-8231-175850861515 Sweden (SE) | a3504f2e-f9dc-4f57-8ff9-c99b69aa8ac5 Poland (PL) | 2c21bf10-f1c3-4656-98c5-7409aba0fbd1 Belgium (BE) | 06ecb972-6427-4f46-8890-dbe01d951826 Norway (NO) | e743a7ff-d851-405b-98f2-57259cb0ab7a Poland (PL) | 5fa976ce-f37a-4c3d-b840-671567f26937 Italy (IT) | 2196f282-80f2-405d-b680-e322ccd13f68 Finland (FI) | 49a56ea8-c1b1-484a-8dcf-c80e9058a16d Croatia (HR) | 95258ecb-47d8-4780-8fc2-e11c739cc09a Germany (DE) | 7dcf540e-edd6-4528-9840-ece1ac915913 Denmark (DK)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
7320500308585
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature: 30 mm mushroom actuator and compact housing provide a space-saving footprint for safety circuits in dense control panels. Impact: Reduces cabinet size and wiring effort, cutting installation time and labor costs. Application: Ideal for ABB pilot devices ecosystems and any panel where quick, reliable emergency-stop access is required. Feature: 1NO+1NC contact configuration with a rated operational voltage of 24–300 V and screw clamp terminals. Impact: Enables flexible wiring for both DC and AC control circuits, supports safe interlocking, and preserves signal integrity in vibration-prone environments. Application: Suitable for safety circuits in conveyors, presses, and packaging lines that demand reliable fail-safe behavior. Feature: Front protection with IP66/IP67/IP69K ratings and robust dust/water resistance. Impact: Delivers dependable performance in washdown zones and dusty production floors, reducing enclosure damage and maintenance cycles. Application: Preferred in manufacturing cells and harsh environments where environmental sealing matters. Feature: Maintained operation with twist-release action. Impact: Minimizes accidental stops and ensures deliberate operator input, improving process stability and start-up reliability. Application: Critical in safety interlocks and restart sequences on high-speed automation lines. Feature: Small power draw (maximum 5 W) and standardised wiring (Screw Terminals, 0.8 N·m torque). Impact: Lowers energy use, reduces heat in control cabinets, and simplifies field installation with predictable torque. Application: Beneficial for OEMs integrating multiple stations across a single line. Feature: Comprehensive certifications and compliance (CE, UKCA, RoHS/REACH, EN safety). Impact: Eases global qualification, supplier audits, and customer acceptance. Application: Ideal for international deployments and regulated industries seeking proven safety compliance.
Get a Quick Quote for a ABB 1SFA619500R1072
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619500R1072?
Enquire Now
FAQs
Begin by selecting a suitable 30 mm mounting position in the control panel. Mount the device, then connect the wiring to the screw clamp terminals using solid or flexible conductors 0.5–1.5 mm² as specified. Tighten terminals to 0.8 N·m and verify the 1NO+1NC wiring is correct for your DC or AC circuit. Confirm front panel protection meets IP66 conditions and test the twist-release mechanism to ensure a deliberate activation. Finally, conduct a functional test to validate safe stop operation within the control system and EN safety standards.
The device uses a 1NO+1NC contact configuration. Rated operational currents include (DC) 0.3 A at 24 V and 0.2 A at 125 V, and (AC) 2 A at 240 V or 220/240 V. It supports a wide operating voltage range of 24–300 V and a maximum power loss of 5 W. These specifications enable reliable signaling across typical safety and control circuits in mixed DC/AC environments.
Yes. The front is rated IP66, with additional IP67/IP69K options in some configurations, meaning it withstands dust intrusion and high-pressure washdown. This makes it well-suited for manufacturing floors, packaging lines, and automated cells where exposure to dust, mist, or water is common. For best results, confirm enclosure sealing and proper panel gaps to maintain the intended rating.
The Machine Stop carries CE and UKCA declarations, along with RoHS/REACH compliance and EN safety certifications. It also features CB and cULus/cURus certificates for global compatibility. These certifications help with regulatory acceptance, supplier audits, and end-user confidence when deploying machines across multinational facilities.
The device offers a compact form factor, low power consumption, and robust environmental sealing, all of which reduce installation time, panel space, and ongoing maintenance. The maintained stop with twist-release minimizes nuisance trips, contributing to fewer unplanned stoppages. Over a line-wide rollout, these factors translate into lower downtime, faster line changes, and a shorter time-to-value for safety-critical automation projects.
