ABB 1SFA619500R1076 Machine Stop - Compact Range
Part Number: 1SFA619500R1076
Quick Summary
Machine Stop ABB 1SFA619500R1076 provides a compact emergency-stop function for safeguarding production lines. Many panels face dust, moisture, or layout constraints that slow installation and increase risk. Certified for CE and UKCA with rugged IP66/IP67/IP69K protection and a 6 kV impulse withstand, it supports safe, compliant operation. As a compact, 30mm mushroom-stop in ABB's range, it reduces wiring, speeds installation, and integrates with modern pilot devices for scalable automation. This translates to shorter project cycles, lower cabling costs, and easier maintenance rounds. Engineers gain confidence knowing the device meets industry standards while delivering dependable performance. It's a practical choice for compliant automation.
Product Information
Extended Description

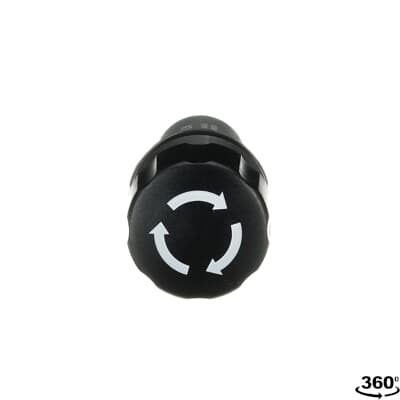

1SFA619500R1076 ABB: The CE3T-10B-11 Machine Stop is: Compact - Machine Stop - Twist release - Maintained - Mushroom 30mm - Black - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 24 ... 300 V
This Machine Stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.038 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Mushroom 30mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Twist release
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
52900c81-4bdc-4e96-b81e-b1b93e61a507 Sweden (SE)
Simplified SCIP
ab15a40f-123f-4724-a24b-b9e00927e1bd Germany (DE) | d660b3e8-7e74-4552-9e07-c1f2639c32bd Poland (PL) | f1118d3f-edbb-459c-b45e-2e6f7afd12a2 Hungary (HU) | edd90d6c-4650-4324-b781-cdb3a6eb98c9 Greece (GR) | 8aa4e284-83c3-4f34-a82d-2ed47474fbab Estonia (EE) | 696fe0d0-9b7d-47e3-b47a-396985ea6d41 Netherlands (NL) | 6e7758f7-4363-4841-85fb-cf18435ce921 Sweden (SE) | 9cab0547-2ace-4cf2-978a-e8643d6479aa Poland (PL) | 0a538e92-bc38-46a9-856b-0658576eb8d2 Portugal (PT) | eefd03cc-cb5c-4f82-94ea-d4923b64cfad Bulgaria (BG) | aaf86cf5-923e-484f-a9b2-c93b5353a70f France (FR) | 031e5353-14c8-4a45-9a86-a4003d8a3944 Germany (DE) | 59f746af-cf8e-4b91-80ba-c197e008129d France (FR) | 551f397f-b999-41c5-9581-6a22bcdbb5a9 Germany (DE) | 256ed527-4013-42c2-a5cc-1d0d3de7a5bf Hungary (HU) | c52011cb-a871-4392-abf7-7578ec3f7417 Spain (ES) | 97ad3a0f-8ec1-47f4-84d2-7d893d7cd949 Belgium (BE) | 4f0eef83-5270-47c9-b69d-7583a5dd92cb Finland (FI) | 0212261c-900e-4400-bfc7-8e8fdcdcd999 Belgium (BE) | 6d9896af-bfeb-4cda-928e-0c4eeaf73627 Italy (IT) | b2169804-6cd9-409b-bbfe-748a9283d22c Germany (DE) | c26c6a5a-0899-4577-8860-4a093d7434ef Norway (NO) | 602357ed-48b7-4a49-8fde-eab12e5db119 Poland (PL) | 2528f401-63bb-47bb-a29c-e4b5126d7b26 Czech Republic (CZ) | 8f29f9bd-ef4f-42a2-9e04-c4930bab4078 Croatia (HR) | 8658e042-7345-4e2a-873b-a9f596213e25 Germany (DE) | a6c07477-700a-4957-80a5-8092014b1993 Denmark (DK)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
7320500260821
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312171
E-Number (Sweden)
3711550
Feature: 30 mm mushroom actuator with maintained twist release delivers a compact, positive-stop operation that fits in tight panels. Business impact: saves space, reduces enclosure depth, and enhances operator confidence with crisp tactile feedback. Application: ideal for safety circuits in small automation cabinets where dependable actuation is critical. The design is non-illuminated, black, and supports 1NO+1NC contacts for versatile wiring. Feature: rated operational voltage 24 to 300 V and flexible current ratings including (24 V) 0.3 A, (125 V) 0.2 A, (240 V) 2 A; electrical path uses screw clamp terminals with 0.8 N·m tightening torque. Business impact: reduces the need for converters and supports direct integration with PLC logic or safety relays, cutting installation time. Application: control panels and machine safety circuits across 24/125/240 V platforms. Feature: rugged front protection IP66, IP67, IP69K and terminal protection IP20; maximum power loss 5 W. Business impact: durability in dusty, wash-down, or high-pressure environments extends service intervals and minimizes downtime. Application: conveyors, packaging lines, food processing, and outdoor equipment where exposure to liquids and dust is common. Feature: strong compatibility with ABB compact range and a simple 1NO+1NC configuration; terminal type Screw Terminals; wire range includes flexible and solid conductors with ferrules; 1 x 0.5...1.5 mm2. Business impact: faster installation with fewer components, safer terminations, and consistent field wiring. Application: scalable across multi-point safety installations in factories. Feature: maintained action and twist release, non-illuminated, 30 mm mushroom stop; easy to reset after actuation; includes robust RoHS/REACH compliance and CE/UKCA declarations for global markets. Business impact: ensures regulatory compliance while delivering reliable machine stoppage and reduced lifecycle costs. Application: suitable for a wide range of machinery safety stops in automotive, packaging, and process industries.
Get a Quick Quote for a ABB 1SFA619500R1076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619500R1076?
Enquire Now
FAQs
The 1SFA619500R1076 is designed for ABB's compact pilot-device range and uses a 30 mm mushroom actuator with 1NO+1NC contacts. It features screw clamp terminals and a tightening torque of 0.8 N·m, enabling straightforward integration with existing ABB control panels and safety relays while minimizing wiring changes during panel upgrades.
Electrical ratings cover 24 to 300 V operating voltage with currents of (24 V) 0.3 A, (125 V) 0.2 A, and (240 V) 2 A. It includes a 6 kV rated impulse withstand and a maximum power loss of 5 W. The device uses screw terminals and supports a 1NO+1NC configuration for versatile wiring in safety circuits.
Yes. The unit offers front protection IP66, IP67, and IP69K, with terminals protected to IP20, making it suitable for dust-prone and washdown environments. This durability supports use in conveyors, packaging lines, and food processing areas where contaminants or moisture are present, reducing maintenance frequency.
The device is CE and UKCA compliant, with CB, cULus and cURus certifications, and RoHS/REACH declarations. It also aligns with CCC and EAC declarations and ABB’s safety standards, facilitating global deployment across regulated industries and ensuring traceable compliance for audits.
Adopting the 1SFA619500R1076 can shorten installation cycles due to its compact form and 1NO+1NC wiring, reduce cabling and component costs, and lower maintenance intervals thanks to robust IP protection. These factors translate to faster time-to-production, fewer field issues, and improved safety metrics across automation lines.
