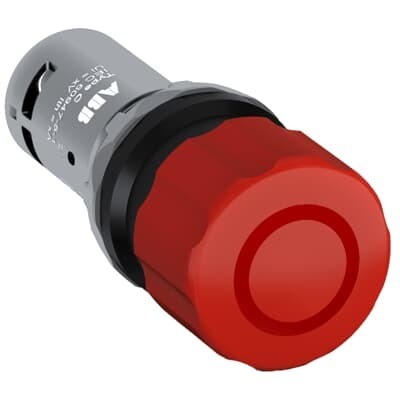

ABB 1SFA619501R1041 Emergency Stop - CE/IP66
Part Number: 1SFA619501R1041
Quick Summary
ABB Emergency Stop 1SFA619501R1041 delivers a compact, reliable stop solution for machine guards, conveyors, and automated lines. In tight control panels, space and wiring time matter, and this 30mm mushroom actuator reduces both. The device carries CE safety conformity with RoHS/REACH compliance and IP66 front protection, along with UL/CSA and UKCA verifications for global use. Maintained operation with a pull-release action and 1 NC contact simplifies control logic while keeping operators safe. Its screw-clamp terminals, small footprint, and lightweight design support quick installation and long-term reliability, helping manufacturers meet uptime targets and reduce panel assembly costs.
Product Information
Extended Description
1SFA619501R1041 ABB: The CE3P-10R-01 Emergency stop is: Compact - Emergency stop - Pull release - Maintained - Mushroom 30mm - Red - Non-illuminated - 0 NO - 1 NC - 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536500000
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.032 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 30mm
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Pull release
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
ecd4629c-2b36-44e4-a296-5dd6d094d18b Sweden (SE)
Simplified SCIP
65a543ec-6561-45e9-bfd2-3e558968ba84 Germany (DE) | 2427b5b4-7937-41c1-930f-d8a6ab6eaff0 Bulgaria (BG) | ec0cf192-82ef-402d-96b1-cc2f44a88a2e Sweden (SE) | 7c7b3e72-c527-4a6e-9afc-aee108bd961c Poland (PL) | 5ae76c6b-9a81-4c6d-8d61-fc0feb48bb3b Germany (DE) | 3d11c3ac-352d-4003-9174-af910c0658d0 France (FR) | 9cf7662a-60a0-46fb-9ef7-a43c47bba32f Belgium (BE) | fa9a3a43-1090-4e1b-8f90-ea1465221b1b Spain (ES) | 39068a6e-0386-424d-bede-9a361387ecfe Hungary (HU) | 95bab49f-3ed7-4037-af51-cfe2ad6f8c55 France (FR) | 9a6479bb-3e37-458a-b002-764b8b73561d Germany (DE) | 45f8226a-a995-4d84-b58a-35fd1c13b2b9 Croatia (HR) | 79b7364d-b32f-4ed5-90e0-4307a71aa704 Poland (PL) | 4561c2b1-e034-4abd-912c-c5bf037665ad Hungary (HU) | 591950df-d6f7-48dd-969e-731afd82c10f Netherlands (NL) | 34976b9b-c336-497b-bd86-d4241c1fd0b0 Czech Republic (CZ) | e60202ab-f905-47b6-a606-ae43fb4dd5db Portugal (PT) | bc003cff-9d63-41a3-840e-e703ab0c07a2 Estonia (EE) | 5b4f6854-9763-4d80-ad9b-93d7873809d9 Greece (GR) | e147e436-d313-4c21-844b-16199e00a4f4 Poland (PL) | 5d64df31-0766-4fb6-ab6f-ed8cb397656d Norway (NO) | 1e38f665-d301-4290-81bd-3aef12f45563 Finland (FI) | d4777088-c085-4344-84ae-45f05e86cd81 Italy (IT) | 76d63a00-49c2-43df-b984-dc2ef51801b8 Belgium (BE) | e7628954-dc73-4639-bafd-c7a8a1c21605 Germany (DE) | cd9578b2-209f-4dd5-bb25-312d15fca13e Germany (DE) | 351ac684-3a4a-4a53-a3aa-682b8e1a274d Denmark (DK)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
7320500260739
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39121545
Feature: 30mm mushroom actuator yields a compact footprint that fits in slim control panels. Business Impact: Frees space for additional safety devices and reduces panel depth, accelerating assembly. Application: Ideal for conveyor lines and small automation cabinets where space is at a premium. Feature: Maintained function with pull-release action prevents accidental resets. Business Impact: Enhances operator safety and ensures a deliberate stop sequence in hazardous operations. Application: Main stop circuits on packaging lines and robotic cells. Feature: Wide electrical range 24–300 V with DC‑13 and AC‑15 ratings. Business Impact: Enables seamless integration into diverse control architectures without extra power stages. Application: Versatile across legacy and modern PLC ecosystems. Feature: Front IP66 protection and multiple NEMA compatibility options. Business Impact: Robust performance in dusty or washdown environments, reducing maintenance costs. Application: Food, beverage, and automotive environments. Feature: Screw clamp terminals and defined wiring parameters. Business Impact: Quicker field installation and reliable terminations, lowering commissioning time. Application: Panel builders and electrician teams. Feature: One NC auxiliary contact with no NO contact. Business Impact: Simplified safety circuit design and reduced wiring complexity. Application: Safety interlocks and emergency-stop logic. Feature: Comprehensive certification footprint (CE, UKCA, UL/CSA, RoHS/REACH). Business Impact: Faster market access and risk mitigation across global operations. Application: Global manufacturing footprints with strict compliance needs.
Get a Quick Quote for a ABB 1SFA619501R1041
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619501R1041?
Enquire Now
FAQs
Wire using the screw clamp terminals rated for flexible or solid conductors from 0.5 to 1.5 mm². Follow the 0.8 N·m tightening torque and 6 mm wire stripping length. The device provides one NC auxiliary contact and no NO contact, suitable for simple safety circuits. Ensure the supply voltage is within 24–300 V and observe proper polarity for DC and AC connections as per the datasheet.
Key specs include Rated Operational Voltage 24–300 V, DC-13 (0.3 A at 24 V; 0.2 A at 125 V) and AC-15 (2 A at 240 V). Power loss is maximum 2.5 W, with impulse withstand up to 6 kV. The device supports 50/60 Hz operation and has a front IP66 rating for environmental protection.
Yes. The unit features Front IP66 protection and supports enclosure types from Type1 to Type4X, making it suitable for dusty and washdown environments common in food processing, packaging, and automotive applications. This reduces maintenance cycles and extends service life in harsh conditions.
The device carries CE conformity, UKCA declarations, UL/CSA/CULus certificates, and CB/CEP combinations. It also aligns with RoHS and REACH requirements, supporting global deployment and regulatory compliance across manufacturing sites.
Benefits include reduced installation time due to a compact footprint and easy wiring, improved uptime from robust IP66 protection, and safer, simpler control logic with a maintained, pull-release stop and a single NC contact. These factors collectively lower total cost of ownership and downtime in lean manufacturing environments.
