ABB 1SFA619501R1051 Emergency Stop - IP69K Front Protection
Part Number: 1SFA619501R1051
Quick Summary

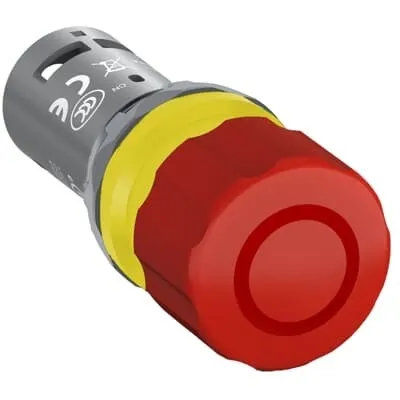

ABB 1SFA619501R1051 Emergency Stop is a compact, 30 mm mushroom stop device designed for safe machine shutdown across automated lines. It helps overcome installation delays by combining a ready-to-wire terminal design with a pull-release, maintained action that resets quickly after trips. Certified to CE and UKCA, with CB and UL credentials and rugged IP66/IP67/IP69K protection, it suits global, washdown-ready applications. The 24–300 V rating and two NC contacts deliver flexible safety control while reducing panel space and total cost of ownership.
Product Information
Extended Description
1SFA619501R1051 ABB: The CE3P-10R-02 Emergency stop is: Compact - Emergency stop - Pull release - Maintained - Mushroom 30mm - Red - Non-illuminated - 2NC - 0 NO - 2 NC - 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.032 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 30mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Pull release
Number of Auxiliary Contacts NC
2
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
ff83c943-3710-4024-be97-c17466175c31 Sweden (SE)
Simplified SCIP
98c5d0b7-e9d2-461f-9cef-869d934f402e Germany (DE) | b4fa2ea9-a50c-4b86-a590-1e029d984224 Belgium (BE) | 26b9f5c8-a0b5-4d2e-a38b-538da26e9e0a Germany (DE) | 8f6c9ca3-9890-44f9-991d-31d601e8bc35 Germany (DE) | d22d561f-d879-450b-a457-02bf2375dca7 Hungary (HU) | a770fdbf-924b-4968-90da-b3dbab871f89 France (FR) | 793e4037-c13d-4e1a-af32-3600506d2509 Spain (ES) | 0d5cf7cf-d05e-41d8-81e6-6083d0b22c28 France (FR) | 948c6d60-e012-4cbb-806c-4dbd4188a3e0 Poland (PL) | 9a82a5a0-5d33-4a57-98a4-06b91110a0e2 Sweden (SE) | be5510dc-4c29-4c2c-b75a-c0c24581125a Bulgaria (BG) | 25abb10b-0880-4794-94fa-e47642fa2e3d Portugal (PT) | 158c3312-6d34-401f-843b-d81f9477c467 Greece (GR) | fd66b057-b703-4521-82d8-8572d635a95c Estonia (EE) | c67a8f36-01d4-4c75-8971-7dc49a990b7c Netherlands (NL) | e73c89fa-92f2-4937-b869-3ef0f9c47864 Hungary (HU) | 67353563-b2cf-487b-afa4-380a41fb1cfc Czech Republic (CZ) | 31ea8d66-ca8d-414d-8aad-b5e5a4404d98 Poland (PL) | e6785d2a-500c-4675-abf5-d20fa861db37 Croatia (HR) | 5e6aac0b-52f7-40d2-993c-a2e96ff20a8e Denmark (DK) | 85346019-19a0-41d6-8e9e-a69adbac89c9 Germany (DE) | e8bdc01e-6938-4e58-9008-e8ddea48c7e9 Belgium (BE) | 05f304fd-f0f8-4a64-bf3e-2a1863a10a34 Italy (IT) | dc80c424-e990-4524-82b4-e613ddb3f766 Norway (NO) | 5c10f0d9-2bbf-4f36-af3c-d07efe009dbf Finland (FI) | 87e3c318-37dc-4a36-bd9c-3117d3590201 Germany (DE) | d14f00ed-d1c2-425e-8307-648b57263669 Poland (PL)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.035 kg
Package Level 1 EAN
7320500260791
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2313528
E-Number (Norway)
4372746
E-Number (Sweden)
3711506
Feature → The 30 mm mushroom actuator with a red, non-illuminated bezel and a maintained pull-release action provides a compact, positive-stop interface for operators, enabling quick reset after actuation. Business Impact → Reduces panel footprint and simplifies operator interaction, lowering commissioning time and risk of misreset. Application → Ideal for control panels in automation lines requiring rapid, reliable emergency stoppage with minimal space consumption. Feature → Rated Operational Voltage of 24–300 V and dual NC contacts (0 NO) support flexible wiring and safety logic integration. Business Impact → Enables seamless PLC/PLD interfacing and scalable safety circuits without reconfiguring power rails. Application → Suitable for mixed AC/DC control architectures in packaging and process lines. Feature → Rugged enclosure options (Front IP66/IP67/IP69K; NEMA Type1/Type12/Type13/Type3R/Type4/Type4X) boost reliability in dusty, wet, and washdown environments. Business Impact → Extends service life in harsh factories and food/beverage facilities, reducing maintenance costs. Application → People-safe installations in harsh production zones. Feature → Mechanical durability rated at 0.5 million cycles with a tight 0.8 N·m tightening torque and Screw Clamp terminals. Business Impact → Improves field reliability, minimizes maintenance cycles, and ensures robust electrical connections. Application → Field wiring with ferrule or solid conductors across various panel depths. Feature → Comprehensive compliance and environmental safeguards including CE/UKCA, CB/UL, RoHS/REACH, and WEEE considerations. Business Impact → Eases global certification processes and reduces regulatory risk. Application → Global manufacturing setups requiring multi-region approvals and sustainable design. Feature → Clear compatibility with UL/CSA wiring standards and broad conductor ranges (0.5–1.5 mm², ferrule options). Business Impact → Streamlines procurement and installation for diverse vendor ecosystems. Application → Industrial control cabinets and safety circuits across multiple regions.
Get a Quick Quote for a ABB 1SFA619501R1051
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619501R1051?
Enquire Now
FAQs
The device uses Screw Clamp terminals with flexible and solid conductors ranging from 0.5 to 1.5 mm². Tightening torque is 0.8 N·m, and wire stripping length is 6 mm, enabling reliable field wiring and easy retrofits into existing panels.
Rated Operational Voltage is 24–300 V, with AC-15 currents up to 2 A at 240 V and DC-13 currents up to 0.3 A at 24 V (0.2 A at 125 V). Power loss is a maximum of 5 W, supporting efficient operation in space-constrained control panels.
Yes. Front protection includes IP69K/IP67/IP66, and enclosure types cover Type1/Type12/Type13/Type3R/Type4/Type4X, making it well-suited for washdown areas, dust-prone manufacturing, and demanding production lines.
It carries CE and UKCA declarations along with CB/UL certifications, indicating conformity to international safety standards. This helps reduce regulatory risk for global deployments and supports multi-region compliance in aerospace, automotive, and process industries.
Mechanical durability is rated at 0.5 million cycles, with a maintained function and pull-release action. Regular inspection of screw terminals and connectors is advised; the non-illuminated red actuator minimizes failure modes and maintenance complexity in high-use environments.
