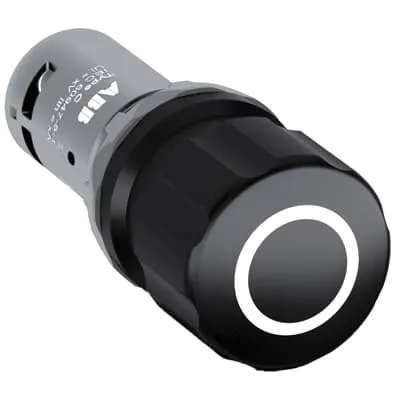

ABB CE3P-10B-11 Machine Stop - 24-300V, IP69K Rated
Part Number: 1SFA619501R1076
Quick Summary
ABB CE3P-10B-11 Machine Stop is a compact, maintained stop device designed for control stations and machine guards in industrial automation. It delivers a reliable halt action with a pull-release mushroom head for safe operator interaction, helping prevent costly downtime on high-use lines. This unit is CE certified, with UKCA declarations and industry-leading IP ratings to withstand dust, water, and washdown environments. The front-protection ratings IP66, IP67, and IP69K ensure dependable performance in challenging settings, while ABB’s compact range shortens installation time and simplifies wiring. By pairing 1 normally open with 1 normally closed auxiliary contacts, it integrates seamlessly with pilot devices and safety circuits, delivering tangible value in safety-critical applications.
Product Information
Extended Description
1SFA619501R1076 ABB: The CE3P-10B-11 Machine Stop is: Compact - Machine Stop - Pull release - Maintained - Mushroom 30mm - Black - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 24 ... 300 V
This Machine Stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.034 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Mushroom 30mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Pull release
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
b6de9685-77a1-4db6-97c6-5eee6a2126b6 Sweden (SE)
Simplified SCIP
039f09e1-7183-44b7-8f41-13f06518f1a4 Germany (DE) | b9f3fdc4-8538-44c0-ad6c-cd48b2528eb7 Poland (PL) | f2d4ba78-b1cb-4b28-9872-88e0a99717df Poland (PL) | b996ebd0-4446-4675-b940-fc7c970e6cbe Estonia (EE) | 51f49b10-4637-400d-8a57-47c8cefee032 Netherlands (NL) | 5e0a6fea-370f-49a5-bff7-eb3740652ad4 Hungary (HU) | 175d364e-6a97-4114-8b18-83314daa2f04 Belgium (BE) | 4732ec56-78e2-4a12-9bce-545f05d152da France (FR) | 3faa5154-5a6e-4f1c-809a-3af1e5f3394d Hungary (HU) | 903e1f65-56d4-405b-a0b9-7f68055262c5 Spain (ES) | c91a53b2-db52-4127-be88-b97267b49cc8 Greece (GR) | 2c2dd300-968f-4ce4-88f5-cbb93b361fa0 Portugal (PT) | 99f8d010-6fb4-49ab-b41a-2f9d02598c6a Czech Republic (CZ) | 9f30d707-3ae5-4c5f-aafc-6afcc8a78193 Germany (DE) | ab3a46f3-016d-45a3-a28c-c3b56fe4079f Croatia (HR) | c591c495-b2f5-4b3b-9cd6-1597a4920402 Denmark (DK) | 6f094a3b-156e-4ecf-8c29-c739a6beeb1d Germany (DE) | 5ffd234e-e58b-43b6-a306-756ff85d2652 Poland (PL) | 47fde792-ca14-403c-bd3b-a2d86deb5c34 Bulgaria (BG) | c06fa98b-fef5-411a-aaf3-13f7dd86580c Sweden (SE) | e50d6c45-a881-4489-b45a-247450828528 France (FR) | 658fac61-dc04-4f14-9903-1e17c691e512 Germany (DE) | 722a67c7-5e2a-4c51-b547-580f7428f24c Germany (DE) | 0a9a5b1c-b025-40e0-b4bc-3da3fe768373 Belgium (BE) | 12587b3e-7cdc-464e-b88b-c6ea3804e04a Italy (IT) | 2d34dac5-92a6-4cf3-8a90-2a74f4aea5f4 Finland (FI) | ab73026d-2e0b-45df-a7c4-4fa56c18d447 Norway (NO)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.036 kg
Package Level 1 EAN
7320500355473
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312172
E-Number (Sweden)
3711552
Compact, all-in-one design shortens installation time and reduces panel space, delivering a lower total cost of ownership. The ergonomic 30 mm mushroom actuator offers intuitive operator action, while the maintained function ensures the stop remains engaged until reset. In practical terms, you gain faster commissioning and fewer field wiring errors in control panels and safeguarding enclosures. Electrical robustness is built in: a wide rated operational voltage from 24 to 300 V and supported currents for DC and AC control circuits. With 1 NO and 1 NC auxiliary contacts, you get both halt signaling and status feedback in one compact unit. Power loss is limited to a maximum of 5 W, ensuring low energy consumption and reduced heat in control panels. Rugged enclosure and sealing deliver front protection IP66/IP67/IP69K and terminal protection IP20, making the device suitable for harsh environments like washdowns and dusty production lines. Wiring and installation flexibility is enhanced by screw clamp terminals that accept flexible and solid conductors, plus a tightening torque of 0.8 N·m and a 6 mm wire stripping length. The solution aligns with industry standards and ABB pilot devices catalogs, supporting seamless integration into safety circuits and machine guarding strategies. Compliance, documentation, and compatibility are emphasized through available CE/UKCA declarations, RoHS/REACH adherence, and WEEE B2B classification, helping you meet regulatory requirements with minimal risk and clear traceability.
Get a Quick Quote for a ABB 1SFA619501R1076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619501R1076?
Enquire Now
FAQs
Plan for a panel-mount fit using the 30 mm mushroom actuator and 1 NO + 1 NC auxiliary contacts. Use screw clamp terminals and observe a tightening torque of 0.8 N·m with 6 mm wire stripping. The device’s compact form reduces panel depth, while its IP66/IP67/IP69K front protection supports washdown and dusty environments. Ensure proper alignment with existing pilot devices and safety circuits for reliable signaling.
The unit supports a wide operation range of 24–300 V, with AC-15 currents up to 2 A at 240 V and DC-13 currents up to 0.3 A at 24 V (0.2 A at 125 V). It features 1 NO and 1 NC auxiliary contacts for signaling and feedback, and a maximum power loss of 5 W to minimize heat. These specs enable safe integration into both DC and AC safety circuits and pilot devices while keeping wiring simple.
Yes. It carries robust front protection ratings IP66, IP67, and IP69K, with terminals protected to IP20, and operates from -25 to +70 °C. This combination makes it appropriate for dusty, wet, and high-pressure washdown environments common in manufacturing, food processing, and automotive sectors, reducing risk of contamination and downtime.
The device carries CE and UKCA declarations, plus RoHS/REACH compliance and WEEE classification. It also aligns with international safety standards through certificates like CB, UL/cULus, and CCC, providing regulatory assurance for global deployments. These certifications simplify procurement, compliance reporting, and customer audits for safety-critical control equipment.
ROI improves through faster installation and commissioning thanks to ABB’s compact design, reduced wiring complexity, and a single device offering 1 NO + 1 NC signaling. Rugged IP protection minimizes maintenance in harsh environments, lowering downtime. The combination supports shorter project timelines and lower lifecycle costs for safety-related stopping applications.
