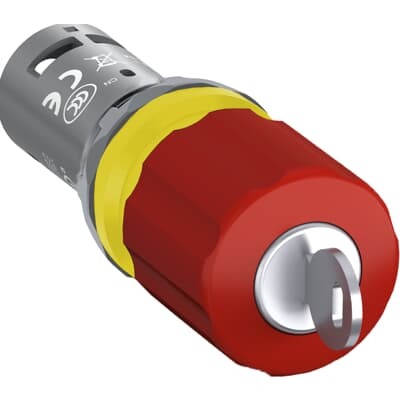

ABB 1SFA619502R1051 Emergency Stop - IP69K Front Protection
Part Number: 1SFA619502R1051
Quick Summary
ABB 1SFA619502R1051 Emergency Stop is a compact, maintained mushroom switch designed for quick machine shutdown in industrial panels. When integrating safety devices, installers often face lengthy wiring, ambiguity about voltage compatibility, and the risk of costly redesigns. This model delivers CE and UKCA conformity with robust front protection (IP66/IP67/IP69K), a wide operating range of 24–300 V, and two NC contacts for dependable control. Built for panel builders, machine integrators, and maintenance teams, it combines a small footprint with easy, repeatable mounting, straightforward wiring, and proven lifecycle cost savings from reduced downtime and fewer field faults.
Product Information
Extended Description
1SFA619502R1051 ABB: The CE3K1-10R-02 Emergency stop is: Compact - Emergency stop - Key release - Maintained - Mushroom 30mm - Red - Non-illuminated - 2NC - 0 NO - 2 NC - 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.103 m
Product Net Weight
0.068 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 30mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Key release
Key Code
Key code 71
Number of Auxiliary Contacts NC
2
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
234ecec3-f3b1-4a97-9c9f-87bb68f707aa Sweden (SE)
Simplified SCIP
e79be2e2-8415-4a57-a462-ed33fba63ab0 Germany (DE) | 853d0855-d204-47df-aba9-33ae1e608c6d France (FR) | 5690669e-1d11-4fb8-9065-b9d40c516150 Germany (DE) | 8ee0b5a7-3928-4ac9-bcde-b7d368890f85 Croatia (HR) | b41be96d-8909-477f-8b30-3c9f1db9cba0 Czech Republic (CZ) | 3e667802-ee22-49fb-a893-e478097494c4 Germany (DE) | e697def4-f3a3-4cf2-a9b4-0a21770f1467 Denmark (DK) | 6d2fdace-3f15-420a-a5a2-e10f81430bc9 Poland (PL) | 86319ac4-9b12-486e-bd89-6d000c75d70a Norway (NO) | d665d6b8-5ec4-432a-b6c7-3d9d79af67e0 Finland (FI) | 15a84250-c6f3-4186-b7ca-5ce6133f37dd Italy (IT) | df92fbbb-9c36-4252-8ded-92d51ed62a06 Germany (DE) | 19b93161-9ea9-4902-b4cb-81590d238a31 Belgium (BE) | fb03c848-c9bf-43fd-8f21-bc4d820dd274 Poland (PL) | 1c7878a0-18d1-44cd-b8d0-2846d963df1e Greece (GR) | 3b42c653-13bb-4576-8259-e11c6163c463 Netherlands (NL) | 82a23779-9f13-4480-b3c6-6025ae0d6c97 Hungary (HU) | 699872d2-acc0-4a02-a7a2-e187273da0fc Estonia (EE) | 7fdc155a-c734-427c-a3da-47671f2ac0b7 Bulgaria (BG) | 65de21be-168f-4b39-a740-4dd76ab68c94 Portugal (PT) | ec77fbc6-70b1-47bf-9ac0-e9affe62659c Germany (DE) | a07c92b7-f8b6-427d-8f43-82fb9f6ffe59 France (FR) | dff36a75-9633-4591-993a-a3915b7bb818 Spain (ES) | 84c5c005-6eb7-46bd-b2cb-d831ad327831 Belgium (BE) | 661a87a5-96ab-41f3-887e-e25666d15c4e Hungary (HU) | 951a86f6-5c6d-45a6-b5a2-dcddaf390cae Sweden (SE) | 7b217337-bf30-4dbb-b342-cf0099021c76 Poland (PL)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.07 kg
Package Level 1 EAN
7320500308776
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2313532
E-Number (Norway)
4372750
E-Number (Sweden)
3711510
Feature → Business Impact → Application: The 30 mm mushroom actuator is compact and intuitive, enabling space-saving panel layouts while ensuring a decisive, positive stop. This translates to faster panel assembly and reduced wiring complexity on automation lines, ideal for space-constrained control cabinets. Application: new machine builds and retrofits where footprint matters. Feature → Business Impact → Application: With 24–300 V operation and defined DC-13 and AC-15 currents, the device supports both low-voltage control circuits and higher-voltage safety interlocks, minimizing part variety and the risk of misselection. Application: integrated safety circuits across robotics, conveyors, and process lines. Feature → Business Impact → Application: Two NC contacts (0 NO) deliver reliable standby states and fail-safe circuit logic, reducing false trips and improving machine availability. Application: interlock and stop circuits in packaging and manufacturing. Feature → Business Impact → Application: Front protection rated IP66/IP67/IP69K ensures resistance to dust, washdown and harsh environments, enabling use in production lines, food & beverage, and life-science setups without enclosure upgrades. Application: washdown-ready safety points. Feature → Business Impact → Application: Screw clamp terminals and a 0.8 N·m tightening torque simplify wiring and repeatable installation, cutting commissioning time and training effort. Application: fast deployment across multi-site installations. Feature → Business Impact → Application: Mechanical durability of 0.5 million cycles demonstrates long-term reliability, reducing maintenance cycles and spare-part churn on critical safety devices. Application: high-cycle safety stations. Feature → Business Impact → Application: ABB compact range compatibility lowers SKU proliferation and ensures consistent spare parts strategy, streamlining procurement. Application: panel builders and OEMs optimizing supplier ecosystems.
Get a Quick Quote for a ABB 1SFA619502R1051
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619502R1051?
Enquire Now
FAQs
Install by mounting the device in the panel cutout and securing wires with screw clamp terminals. Use Flexible or Solid conductors 0.5–1.5 mm², wire stripping length of 6 mm, and tighten terminals to 0.8 N·m. The device is a maintained stop with 2 NC contacts, so connect the circuit to the NC terminals to ensure a reliable fail-safe stop on actuation.
Yes. The unit features front IP66, IP67, and IP69K protection, providing excellent dust and washdown resistance for harsh production environments. Note that terminals remain IP20, so care should be taken to protect wiring paths in wet areas as part of the panel design.
The device supports 24–300 V operation with both DC-13 and AC-15 ratings (DC-13: 0.3 A at 24 V, 0.2 A at 125 V; AC-15: 2 A at 240 V or 220–240 V). It has 2 NC auxiliary contacts and no NO contacts, suitable for simple safety interlock circuits and fail-safe logic in automation panels.
The unit carries CE and UKCA declarations of conformity for emergency stop devices, plus CB, cULus, and CCC certifications. These approvals support global compliance programs and simplify regulatory filings for multinational installations.
Owners can expect reduced wiring time due to screw clamp terminals, lower enclosure footprint, and fewer field faults thanks to robust IP protection and durable performance (0.5 million cycles). Collectively, these factors decrease downtime, shorten commissioning, and lower lifecycle maintenance costs for high-demand safety applications.
