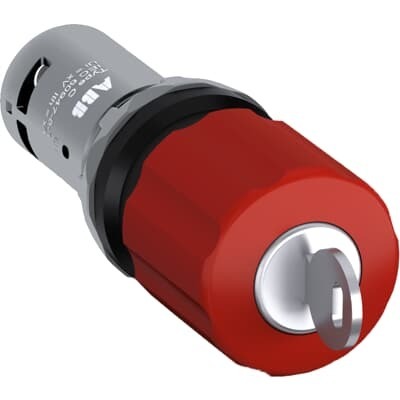

ABB 1SFA619502R1071 Emergency Stop - IP69K CE Certified

Part Number: 1SFA619502R1071
1SFA619502R1071
Manufacturer
ABB
Part number
1SFA619502R1071
Category

Quick Summary

ABB 1SFA619502R1071 Emergency Stop is a compact, maintained stop device designed for quick, reliable machine shutdown in automation panels. In restricted spaces, installation time and wiring complexity are common pain points; this model reduces both with a single, all-in-one solution. The unit carries CE and UKCA marks and front protection rated IP66/IP67/IP69K, delivering rugged performance in dusty or washdown environments. For panel builders and machine integrators, the combination of a 30 mm mushroom actuator, 1NO+1NC contacts, and screw-terminal wiring translates into faster commissioning, easier maintenance, and long-term cost savings. Secondary benefits include compatibility with ABB's pilot-device ecosystem and a scalable approach to safety interlocking and control circuits.

Product Information

Extended Description

1SFA619502R1071 ABB: The CE3K1-10R-11 Emergency stop is: Compact - Emergency stop - Key release - Maintained - Mushroom 30mm - Red - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 24 ... 300 V This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost. The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
28 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.103 m
Product Net Weight
0.068 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 30mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Key release
Key Code
Key code 71
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
ee4e63d3-93a1-4a61-8360-30d4a026c564 Sweden (SE)
Simplified SCIP
eb131651-a74d-48de-8d1f-9ffd9983a421 Germany (DE) | 6a175e18-de58-47e1-999e-90c3b7c57aaa Estonia (EE) | 959bc4d4-c75e-4f4e-a9b9-0985bdfe08c7 Hungary (HU) | 956e7ddd-9697-435b-bb38-0952f3b5c7c9 Netherlands (NL) | 211d812c-11aa-43b3-b8df-c7e506fed803 Poland (PL) | be0e5439-1f00-46a7-b6cd-96414ef85831 Germany (DE) | cbeb22c3-8a83-4f6e-98e3-2e2a029d29f9 Croatia (HR) | 1cbd1adf-3402-4afa-adc5-997c04031414 Czech Republic (CZ) | f96fce42-3e84-46d8-be1f-52b97d5a8780 Belgium (BE) | e6d19745-9b15-407a-b02c-e5902cdd6df1 Denmark (DK) | c06ba7e9-8397-43f2-b931-4c8aba42311e Italy (IT) | da6167af-f14b-496d-9b25-b424c542e4d3 Finland (FI) | b81a6fd2-6f48-4715-adb7-a3f9140851ff Germany (DE) | 7c2a6708-3c2f-4291-91b9-7244962e8efb Poland (PL) | dd71f455-0945-4951-b96b-076f45e0e6ff Norway (NO) | 7c8bfbe2-80eb-49e9-81f4-443f6e8ac389 Belgium (BE) | ca07ef5a-147c-456b-b7ac-ad55ff72b3af Spain (ES) | 82054523-e6d6-44a3-a8ef-736c70eafffe France (FR) | 9f9b289c-83c5-4aef-ad70-b7b1f1f421b5 Hungary (HU) | deab5e84-a89c-44ae-9470-aca397d41b0a Germany (DE) | 0ea062a7-d0b1-47ec-9ec2-24b8d87c4552 Greece (GR) | b204f793-da92-4ac2-884b-0a0f4a22882f Portugal (PT) | ea87ac22-3312-4776-b02a-d6ebc54f6846 Bulgaria (BG) | fc561bba-de92-4689-98a3-18362ae4db68 Sweden (SE) | 200e67a0-d124-404c-b6d3-c18278e8206d Poland (PL) | 7e3b69ba-de0d-4ba7-8a45-99ca7fa79710 France (FR) | bf3928ac-0d04-4e26-8cc7-124ee05463f2 Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.035 m
Package Level 1 Gross Weight
0.07 kg
Package Level 1 EAN
7320500308783
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2313534
E-Number (Norway)
4372706
E-Number (Sweden)
3711512
Maintained 30 mm mushroom actuator enables an unambiguous stop and reliable reset, reducing the risk of residual motion and operator error during machine shutdown. This translates to improved safety margins on the factory floor and a smoother handover to safe-state conditions during routine stopping or emergency scenarios. The compact ABB compact range consolidates actuation, contacts, and wiring into a single unit, cutting installation time and minimizing panel footprint—ideal for space-constrained control cabinets and modular safety setups. The device operates across a wide voltage window of 24 to 300 V and supports both DC-13 and AC-15 loads, delivering flexibility for mixed-signal safety circuits and legacy control architectures. Rugged IP66/IP67/IP69K front protection protects against dust and high-pressure washdowns, making it suitable for demanding environments such as food & beverage, automotive assembly, and outdoor equipment. Screw clamp terminals with a 0.8 N·m tightening torque simplify field connections and ensure a secure, vibration-resistant installation. With 1NO+1NC auxiliary contacts and a robust 0.5 million mechanical durability, ongoing maintenance costs are reduced and downtime minimized. The product’s compatibility with pilot-device ecosystems and its dedicated key-release feature support safe reset sequences and reliable process control in complex machinery.
