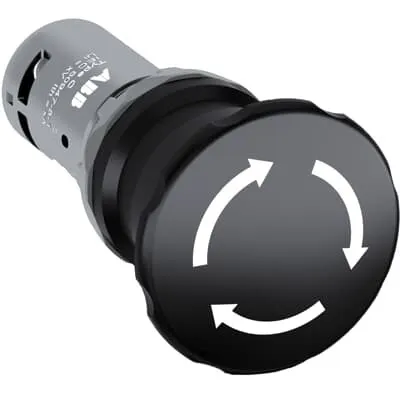

ABB 1SFA619550R1016 Machine Stop - IP69K, 24–300V
Part Number: 1SFA619550R1016
Quick Summary
Machine Stop ABB CE4T-10B-10 is a compact emergency stop device for rugged industrial machines. Many projects struggle with space, dust, and moisture when adding stops in compact control panels. It delivers front IP69K protection for washdown environments and CE conformity, plus UL/CSA and UKCA certifications for global compliance. The compact 40 mm mushroom actuator, 24–300 V operation, and twist release design enable reliable safety with minimal wiring, helping teams shorten panel builds and reduce maintenance downtime.
Product Information
Extended Description
1SFA619550R1016 ABB: The CE4T-10B-10 Machine Stop is: Compact - Machine Stop - Twist release - Maintained - Mushroom 40 mm - Black - Non-illuminated - 1NO - 1 NO - 0 NC - 24 ... 300 V
This Machine Stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536500000
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.034 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Mushroom 40 mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Twist release
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.036 kg
Package Level 1 EAN
7320500260609
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39121500
Feature: Compact 40 mm mushroom actuator reduces panel footprint and simplifies installation. Business Impact: Frees valuable enclosure space and speeds panel assembly, delivering faster time-to-value on new lines. Application: Best suited for tight control panels in manufacturing and packaging lines. Feature: Maintained operation with a single NO contact and no NC contact ensures a clear, fail-safe stop path. Business Impact: Increases safety reliability with a straightforward wiring scheme and predictable behavior during emergencies. Application: Emergency stop circuits in presses, conveyors, and automated lines.Feature: Front protection rated IP69K, plus EN/IP66/IP67 compatibility and IP20 terminal protection. Business Impact: Enables robust washdown and dust resistance, reducing maintenance costs in challenging environments. Application: Food & beverage, chemical, and outdoor equipment where frequent cleaning occurs.Feature: Broad electrical ratings 24–300 V with 6 kV impulse withstand and 2 A AC-15 / 0.3 A DC-13 ratings. Business Impact: Supports versatile control architectures and scalable safety circuits with lower lifecycle costs. Application: Control panels and safety interlocks across diverse line speeds and voltages.Feature: Screw clamp terminals with flexible conductor options and 0.8 N·m tightening torque. Business Impact: Easy field wiring, reliable connections, and consistent performance over time. Application: Industrial automation panels requiring quick commissioning and dependable termination. Feature: Minimal weight and compact dimensions (0.04 m width/height, 0.073 m depth; 0.034 kg). Business Impact: Reduces shipping, storage, and integration effort while preserving clear visibility of safety status. Application: Space-constrained enclosures and modular safety stations.Feature: Comprehensive certifications and documentation including CE, UKCA, UL/CSA, CB, REACH/RoHS. Business Impact: Streamlines regulatory compliance and supplier qualification for global deployments. Application: Medical device-adjacent and general industrial applications with strict standards.
Get a Quick Quote for a ABB 1SFA619550R1016
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619550R1016?
Enquire Now
FAQs
The CE4T-10B-10 uses Screw Clamp connections with both Flexible and Solid conductors from 0.5 to 1.5 mm², including ferrule options. It supports UL/CSA wiring up to 1x 22...14 AWG or 2x 22...14 AWG and recommends a tightening torque of 0.8 N·m to ensure secure terminations in demanding environments.
The device operates across 24–300 V with a rated operational current of 0.3 A (DC-13 at 24 V) or 0.2 A (DC-13 at 125 V), and 2 A (AC-15 at 240 V or 220/240 V). Power loss is a maximum of 2.5 W, and it withstands 6 kV impulses, enabling safe integration into diverse control circuits and safety relays.
Yes. It offers front protection rated IP69K, plus IP66/IP67 compatibility, with terminations protected to IP20. This combination supports high-pressure washdowns and dusty environments common in food processing, chemical plants, and outdoor equipment, reducing ingress-related maintenance.
The device carries CE, UKCA, UL/CSA, CB, and DoC declarations, plus RoHS and REACH compliance. These certifications validate electrical safety, global market readiness, and responsible materials use, simplifying supplier qualification and regulatory audits across regions.
The compact 40 mm actuator and integrated, non-illuminated design streamline front-panel layouts and reduce wiring complexity. Its lightweight, small footprint saves panel space, lowers shipping costs, and enables quicker commissioning, contributing to shorter project timelines and lower total cost of ownership over the device lifecycle.
