ABB 1SFA619550R1021 Machine Stop – Front IP69K Rating
Part Number: 1SFA619550R1021
Quick Summary
Machine Stop devices like the ABB 1SFA619550R1021 provide a compact, maintained stop point for quick machine shutdown in control panels. In busy production lines, wiring complexity and long installation times drive up commissioning costs and risk non-compliance. This device meets CE and UL/CSA requirements and offers front ratings IP66, IP67 and IP69K for washdown and dusty environments. Designed to integrate with ABB's compact pilot-device family, it minimizes panel space while delivering reliable operation and fast installation, reducing total cost of ownership. The device's compact range reduces wiring complexity and enables faster commissioning on new lines. With a robust 24–300 V supply range and 2 NO contacts, it supports common control architectures without extra adapters.
Product Information
Extended Description

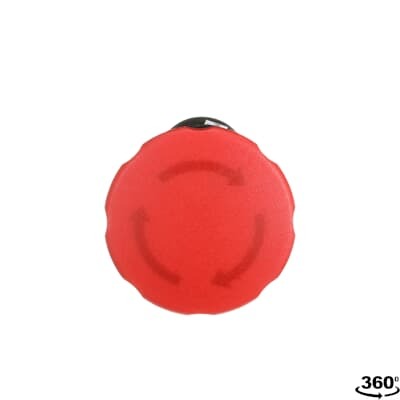

1SFA619550R1021 ABB: The CE4T-10R-20 Machine stop is: Compact - Machine stop - Twist release - Maintained - Mushroom 40 mm - Red - Non-illuminated - 2NO - 0 NC - 24 ... 300 V
This Machine stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536500000
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.038 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 40 mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Twist release
Number of Auxiliary Contacts NC
0
Number of Auxiliary Contacts NO
2
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
47685a65-2a8b-4ab8-b865-e270254f12fa Sweden (SE)
Simplified SCIP
6cee3d14-7157-4c70-9c3b-567ce78b62a6 Germany (DE) | be103da7-255a-4e7e-84e0-67d4148919f4 Belgium (BE) | b10ce5dc-b3b4-46ac-83e4-f4c1ead7cbe3 Spain (ES) | 8fa52c5d-fa7f-4822-8244-fffa8f608581 Hungary (HU) | 8d3105c3-2c43-449b-a59c-34a4e97c6a5b France (FR) | c85ac994-13b9-4ac2-8ff2-69c9cf8b2689 Germany (DE) | bd518841-4a79-45c1-ae33-13d635cfd996 Germany (DE) | 7145e6db-fc6d-4b91-889a-3413c75569be Croatia (HR) | 04734d41-9e6e-4e77-9779-1af92f61b6c3 Netherlands (NL) | 6ca8a6cd-071c-459f-9769-1d961cf9e65f Poland (PL) | 668a6cb8-193d-483f-ba5b-8c7e0c4d9464 Czech Republic (CZ) | 43e13f95-e787-44d5-9fcf-8f8f5d69afb0 Bulgaria (BG) | f261e878-169a-4c32-bc58-688cbd9cb402 Portugal (PT) | 836df88a-c3a7-43d9-8172-4131d6c42ca2 Sweden (SE) | 3f748e3d-d233-456b-8d39-24ac0eda582c Poland (PL) | 1073b809-bf93-4d32-ad3c-902a4e3058c1 Greece (GR) | 6118d19b-5e2b-42ab-993f-cc18784cde84 Estonia (EE) | 4a4b0657-1c2d-4da9-a4a2-e85d75eaa30a Hungary (HU) | dd6d1c96-a716-429d-b0ec-32e2915357e9 France (FR) | 2bea62c1-ceb6-4207-857a-41ba19a922a6 Poland (PL) | 3a50f3ea-214c-401b-a2b2-f21829e8686e Germany (DE) | 289f44d4-6405-4142-8e78-376e547af25e Denmark (DK) | bf2ad8ca-146d-48a5-af46-36de81443fcf Germany (DE) | 4435fe08-56d8-4a89-9fb3-fdf4bf7ac20d Belgium (BE) | 0bc554a9-ebe6-40ef-9d9b-9aa8f034957e Italy (IT) | c759d452-cde6-4a66-9cd0-e76d8011e1f7 Norway (NO) | 0badae86-3028-4d54-8034-e5388e2d41a7 Finland (FI)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
7320500260654
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2313538
E-Number (Norway)
4372716
E-Number (Sweden)
3711516
Feature: Compact, all-in-one design reduces installation time and panel space. Business Impact: Fewer mounting parts and shorter wiring routes translate to faster line start-ups and lower labor costs. Application: Ideal for control panels on conveyors and automated packaging lines. Feature: Wide voltage and current ratings enable versatile control wiring. Business Impact: Eliminates need for adapters across 24–300 V systems and supports both DC-13 and AC-15 loads. Application: Seamless integration with diverse PLCs and control circuits.Feature: Rugged front protection for harsh environments. Business Impact: IP66/IP67/IP69K front rating and dust/water tolerance improve uptime in washdowns and dusty plants. Application: Food & beverage, metalworking, and process lines.Feature: Maintained operation with mushroom 40 mm actuator and twist-release. Business Impact: Prevents accidental resets and ensures deliberate operator action; reduces nuisance stops. Application: Safe stopping on high-cycle machinery.Feature: Reliable electrical connections and clear wiring guidance. Business Impact: Screw clamp terminals with 0.8 N·m torque and 6 mm wire-stripping length streamline installation and maintenance. Application: Panel builders and service technicians benefit from consistent assembly quality.Feature: Broad compliance and enclosure versatility. Business Impact: NEMA Type1/12/13/3R/4/4X compatibility plus RoHS, REACH, SCIP support simplifies procurement and regulatory adherence. Application: Global deployments with diverse enclosure requirements.
Get a Quick Quote for a ABB 1SFA619550R1021
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619550R1021?
Enquire Now
FAQs
Install the device in approved panel spaces, align the 40 mm mushroom actuator for easy access, and mount using the provided mounting provisions. Use screw clamp terminals with 0.8 N·m tightening torque and strip 6 mm of conductor. Connect 2 NO contacts in the desired control circuit, ensuring the supply voltage is within 24–300 V and observe the front IP ratings during commissioning.
The unit supports 24–300 V operation with DC-13 and AC-15 current ratings (e.g., 0.3 A at 24 V DC and 2 A at 240 V AC). It uses screw clamp terminals and accepts ferrules or solid wires (1 x 0.5–1.5 mm² or 2 x 0.5–1.5 mm²). Tightening torque is 0.8 N·m, with 6 mm wire strip length for secure, vibration-resistant connections.
Yes. It features front IP66, IP67, and IP69K protection, with terminals rated IP20, and a pollution degree of 3. This combination provides reliable operation in washdown zones, dusty production floors, and outdoor installations, reducing contamination risk and service interruptions.
The device aligns with CE declarations and UL/CSA certifications for pilot devices, with RoHS and REACH declarations in place. It also supports EAC, UKCA, CB, and other global certifications, ensuring broad regulatory acceptance and easier cross-border deployment.
The 5 W maximum power loss and durable mechanical design (0.5 million cycles) reduce energy use and replacement frequency. The compact, easy-to-wire installation lowers commissioning time, while IP-rated robustness lowers repair costs in challenging environments, delivering faster payback on automation projects.
