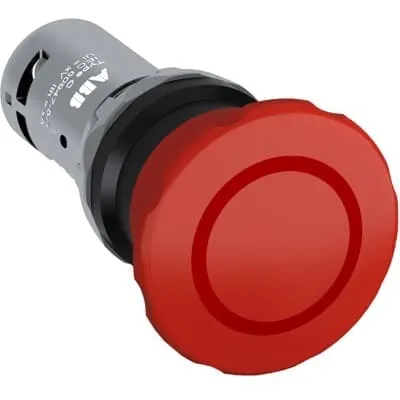

ABB CE4P-10R-02 Emergency Stop - IP69K Front
Part Number: 1SFA619551R1051
Quick Summary
ABB CE4P-10R-02 Emergency Stop is a compact, maintained mushroom push‑button stop designed for safe machine shutdown in demanding industrial environments. It addresses the common pain of lengthy wiring and bulky assemblies during line commissioning by offering an all‑in‑one, space‑saving solution. This model carries CE and UKCA declarations along with CB and EAC certifications, while featuring front IP66, IP67 and IP69K protection for rugged dust and washdown tolerance. By combining a 24–300 V operation with two NC contacts in a compact footprint, it supports fast, reliable integration into modern control circuits and pilot devices without compromising safety or compliance.
Product Information
Extended Description
1SFA619551R1051 ABB: The CE4P-10R-02 Emergency stop is: Compact - Emergency stop - Pull release - Maintained - Mushroom 40 mm - Red - Non-illuminated - 2NC - 0 NO - 2 NC - 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.036 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 40 mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Pull release
Number of Auxiliary Contacts NC
2
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
255ca8b3-4eb7-4008-be77-46d7b59242c7 Sweden (SE)
Simplified SCIP
4f82e988-c18f-4bae-a9da-9dd7e5e7c7db Germany (DE) | 89c9f297-1288-44ee-9f27-ed1b6d19d2fb Germany (DE) | 45904261-3163-4d11-b789-afd06640c47b Belgium (BE) | 557d42cd-3eb0-49b6-a450-c02d13fec99f Germany (DE) | 7afaed03-1ab5-4885-aa2b-c2a05e1e3c77 Denmark (DK) | 21550226-37b3-491e-bf77-387360855e7b Poland (PL) | 91173731-731e-4f9f-a56d-fdc4b5587d6b Norway (NO) | 0e43d126-ae9a-439f-bedd-3a73e764938b Italy (IT) | 21329612-2442-4e31-9ccf-76a8ea3f8f92 Finland (FI) | c4a8fa34-d317-4163-9994-9b07001109e3 Poland (PL) | ca14bf69-a868-4a73-8ac6-63eb1e6c8c97 Croatia (HR) | 6b417091-4c3c-40c4-8526-28704cfc732f Estonia (EE) | d65a6080-888f-4027-ae9a-ac7c7a4d785a Bulgaria (BG) | 4c89007f-e637-411f-b072-ca62d378f728 Portugal (PT) | 0a518f5e-8a60-4093-a6ad-f91876e1f52c Hungary (HU) | f150d8bf-7bd8-45ec-82f2-4412b1e6e89c Greece (GR) | 61145203-3056-4886-8b00-3c718ac6ee82 Netherlands (NL) | 738d2e3e-759e-42a8-8a58-ac70e418b5c1 Czech Republic (CZ) | e65ad8b3-d9a8-4fcb-97e2-1481af806815 Belgium (BE) | 343e0d59-e577-48c2-954c-3b75ee061244 France (FR) | bd68a018-3193-4b7d-8230-013ab8ba428f Germany (DE) | bb3c6c1f-f1c6-4109-8c99-637b87a5dac4 Germany (DE) | 3d455ae2-eee7-4beb-9b3a-e74273afaaa0 Hungary (HU) | e049cb7a-9b64-46f0-a82f-5810f2143147 Spain (ES) | ab2e918a-3b74-47b4-88f5-20ceebca0294 France (FR) | 259786bb-f8f0-43f2-ad68-9cce1434fadc Poland (PL) | 2d9c0202-b52c-43bf-b9ba-457ce4353ff3 Sweden (SE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.039 kg
Package Level 1 EAN
7320500260807
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2313544
E-Number (Norway)
4372780
E-Number (Sweden)
3711522
Feature: Compact, mushroom 40 mm actuator reduces panel footprint and enables easier reach for operators. Business Impact: Frees panel space, speeds installation, and minimizes enclosure costs on new lines or retrofits. Application: Packaging lines and small control panels where space is critical. Feature: Maintained operation with pull release and two NC contacts. Business Impact: Ensures deliberate reset and failsafe engagement in stop workflows, improving machine safety data and preventing accidental resets. Application: Conveyors and processing equipment requiring reliable stop functions. Feature: Wide operating voltage of 24 to 300 V and both DC and AC compatibility. Business Impact: Simplifies integration across mixed control architectures and saves wiring adaptations. Application: Mixed-voltage safety circuits in metalworking and food & beverage lines. Feature: Front protection rated IP66/IP67/IP69K. Business Impact: Superior dust and washdown resistance reduces maintenance and downtime in harsh environments. Application: Food processing, pharmaceuticals, and outdoor installations. Feature: Screw clamp terminals with 0.8 N·m tightening torque. Business Impact: Fast, secure field wiring with proven reliability and consistent electrical connections. Application: Panel builders and field technicians wiring emergency stops. Feature: Broad compliance footprint including CE, UKCA, CB, EAC declarations. Business Impact: Streamlines procurement and audit readiness for global projects. Application: Regulated industries and multinational plants needing robust certification coverage. Insight: ABB’s compact range is designed to cut installation time while delivering durable, compliant performance in pilot device ecosystems.
Get a Quick Quote for a ABB 1SFA619551R1051
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619551R1051?
Enquire Now
FAQs
Yes. The CE4P-10R-02 is designed for a broad voltage range of 24 to 300 V and supports both DC-13 and AC-15 operating modes. This flexibility simplifies integration into mixed-voltage safety circuits and reduces the need for voltage-specific variants on industrial lines.
To maintain front protection ratings, mount the device behind a compatible enclosure, ensure proper sealing around the bezel, and use compatible connectors. The front IP rated construction protects against dust and water ingress in washdown or dusty environments, while standard terminals remain IP20, so ensure appropriate enclosure protection for wiring.
The CE4P-10R-02 provides 2 NC auxiliary contacts and 0 NO contacts. This configuration supports simple, robust stop circuits with normally closed signaling, reducing false positives and simplifying fault detection in safety relays or controller inputs.
This model carries CE and UKCA declarations, along with CB Certificate, cULus and cURus certifications, and EAC declarations. These certifications help streamline procurement for European, UK, North American, and Eurasian markets while supporting RoHS and REACH compliance in pilot devices.
The compact design reduces panel space and installation time, while its robust IP ratings and durable 0.5 million mechanical cycles promote longer service intervals and fewer maintenance trips. In practice, this can lower total cost of ownership by reducing wiring complexity, speeding commissioning, and minimizing unplanned downtime.
