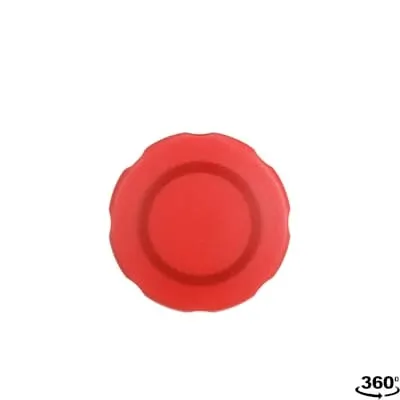

ABB 1SFA619551R1071 Emergency Stop - IP69K Front
Part Number: 1SFA619551R1071
Quick Summary
The ABB 1SFA619551R1071 Emergency Stop provides reliable, fail-safe stop control for industrial machinery safety across production lines. It addresses common panel-space constraints and lengthy wiring by delivering a compact, maintenance-friendly solution. This unit carries CE and UKCA declarations, UL/cULus and cURus certifications, plus RoHS/REACH compliance, with front protection up to IP69K for challenging washdown environments. Designed to integrate with ABB’s compact pilot devices family, it reduces installation time and wiring complexity while delivering dependable performance. For engineers and procurement teams, it translates to lower upfront costs and faster project delivery without compromising safety.
Product Information
Extended Description
1SFA619551R1071 ABB: The CE4P-10R-11 Emergency stop is: Compact - Emergency stop - Pull release - Maintained - Mushroom 40 mm - Red - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.038 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 40 mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Pull release
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
2dac81d1-2d94-4dcd-8f3f-0f0e786c1067 Sweden (SE)
Simplified SCIP
91593f33-dab9-4ec8-b5df-d307612f49d2 Germany (DE) | 781a7d2c-acac-40c3-aeca-a231ca2e16fc Italy (IT) | 6915b021-17c1-4079-b034-b425ed38e57f Estonia (EE) | 454f3bea-67d0-4240-94d8-1d3f00b21f72 Portugal (PT) | 614f6cd3-abee-40f9-9d1b-b7b39de2dd1b Bulgaria (BG) | 77cb45c6-faea-441f-b2bb-844599f6a751 Sweden (SE) | 772b9489-c11a-48c2-b549-4ece3a229ecb Spain (ES) | 4cfa86d7-170a-4874-9d16-954634fad45e Belgium (BE) | 10cc3508-a105-4af1-bd02-7f20712bb50d Hungary (HU) | 91513d51-2f05-4202-b009-901fbd9ec329 Poland (PL) | ed210ff0-0ba0-4bf4-a812-87e363a5c238 France (FR) | 2c1bf1d3-f361-4984-ad87-f128335073f8 Germany (DE) | 2003098f-9255-402a-ad7c-a1e050268be6 Germany (DE) | 9ea13a47-2ab6-4c0f-a01d-e95ec3e1f107 France (FR) | 1cfa2e38-96df-4c4e-aacf-49008587df65 Croatia (HR) | b8cd9f4d-1356-4de7-95cd-eddeee552fc0 Poland (PL) | d1549a8b-d792-4826-abd2-86df57029c68 Czech Republic (CZ) | 0de4672d-8a0e-4961-a994-63da623a9cee Netherlands (NL) | 4a6e15c8-d475-4d92-8262-5e05a8c5a371 Hungary (HU) | ba32b31d-81a8-4266-97f4-9cec02608f52 Greece (GR) | f8a475f1-3212-4c61-9339-cfe0fb2f03cb Poland (PL) | 7a7f71b5-47f2-4ee6-8f87-aa7b29a7f18d Norway (NO) | fc3b271c-e3ed-41b6-a827-9492cc086c53 Finland (FI) | fce1cf1b-49e3-4502-910b-add15266c813 Belgium (BE) | e4163f38-69f0-4211-80bc-75cac312f102 Germany (DE) | 3246b63d-93fc-4b8a-8f66-a9cbc675497c Denmark (DK) | 6cd2b4b2-e411-412b-ab1f-8b0b796581d3 Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
7320500260869
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2313546
E-Number (Norway)
4372815
E-Number (Sweden)
3711524
Feature → Business Impact → Application: The 40 mm mushroom actuator and maintained push release deliver a compact footprint that frees panel space and simplifies operation, reducing machine downtime during restart sequences and enhancing operator efficiency in high-cycle production lines. This translates to faster line starts and safer, more intuitive control for line operators in packaging and assembly environments. Feature → Business Impact → Application: The 1NO+1NC auxiliary contacts enable versatile control circuits, allowing both start/stop interlocks and interlocking logic in safety circuits, which reduces wiring complexity and supports compliant safety architectures across machine centers in metalworking and material handling. Feature → Business Impact → Application: A broad rated voltage of 24–300 V and dual current ratings (DC-13 and AC-15) provide one-device versatility across multiple feeding strategies, minimizing catalog diversity and inventory costs while enabling quick adaptation to different control schemes on conveyors and automated cells. Feature → Business Impact → Application: Front IP66/IP67/IP69K protection and robust dust and washdown resistance protect safety functions in harsh environments, reducing maintenance frequency and preserving uptime on food and beverage lines and outdoor installations. Feature → Business Impact → Application: With a maximum power loss of 5 W and a mechanical durability of 0.5 million cycles, the device lowers energy consumption and extends service life, offering transformative total cost of ownership benefits for continuous production operations. Feature → Business Impact → Application: Screw clamp terminals and a 0.8 N·m tightening torque enable fast, reliable field wiring and robust connections, accelerating installation times for panel builders and commissioning teams in automation projects.
Get a Quick Quote for a ABB 1SFA619551R1071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619551R1071?
Enquire Now
FAQs
For mounting, use the 40 mm mushroom actuator with a Screw Clamp connection. Maintain tightening torque at 0.8 N·m and strip 6 mm of wire. Its front IP66/IP67/IP69K rating supports washdown areas, and its 24–300 V rating covers most control circuits, reducing the need for multiple devices on a single line.
Yes. It is designed as part of ABB’s compact pilot devices family and supports 1NO+1NC, screw terminals, and flexible conductor options. Its dimensions and wiring practices align with common ABB pilot device installations, enabling straightforward panel integration and reduced commissioning time.
The device carries CE and UKCA declarations, UL/cULus and cURus certificates, and RoHS/REACH compliance, along with EAC and CCC declarations in various regions. This makes it suitable for global deployments in industries with stringent safety and environmental requirements.
Ideal for packaging lines, material handling, and metalworking, especially where washdown or dusty conditions exist. The front IP66/IP67/IP69K protection ensures resilience in demanding environments, while the maintained contact configuration supports reliable stop interlocks and safe manual resets in automation panels.
With a mechanical durability of 0.5 million cycles and only 5 W max power loss, the device reduces wear-related maintenance and energy use. Its compact footprint and fast wiring lower installation costs, shorten project timelines, and improve overall equipment effectiveness (OEE) in continuous production settings.
