ABB 1SFA619551R1076 Machine Stop - IP66 Front
Part Number: 1SFA619551R1076
Quick Summary
ABB 1SFA619551R1076 Machine Stop provides a compact, maintainable stop control for machine guarding in industrial lines. Engineers often face long installation times and cramped panel spaces that drive up costs and delay project delivery. It carries CE and UKCA conformity with rugged front IP66/IP67/IP69K protection, offering reliable operation in dusty or washdown environments. As part of ABB's compact range, it simplifies wiring with screw terminals and supports fast integration with pilot devices and automation platforms for lower TCO.
Product Information
Extended Description

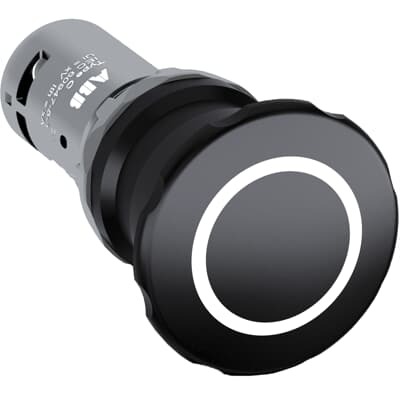

1SFA619551R1076 ABB: The CE4P-10B-11 Machine Stop is: Compact - Machine Stop - Pull release - Maintained - Mushroom 40 mm - Black - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 24 ... 300 V
This Machine Stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.038 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Mushroom 40 mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Pull release
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
bad1b1ff-1e5e-46cf-8584-8a42568a2ff0 Sweden (SE)
Simplified SCIP
da7ce381-eb5d-45db-beae-24705af35e26 Germany (DE) | b9ad929b-d756-409c-b4d6-d7f4e0dd4492 Portugal (PT) | a207a0a4-4b68-45d2-a3f0-2d7d60eb57ba Bulgaria (BG) | f4c490bf-3ac3-4a8c-b5ca-bab20a4a7901 Poland (PL) | f4a7d4f4-74ad-4f42-b68f-5047a82ae800 Czech Republic (CZ) | 60e4f9e1-b236-47f1-b546-ebbc58803c88 Netherlands (NL) | dec2d586-5a4f-48e2-ad4a-b8ccaaecec04 Estonia (EE) | 753a6789-ae99-49ca-af28-4aedd1a90c1d Hungary (HU) | ba8e3f32-48cd-4ec6-88a6-764284c44435 Greece (GR) | eeb47249-1a30-451a-b1a7-26308b247ad7 Spain (ES) | 4fd03ae5-e52f-48e0-905d-5a861c0e3d73 France (FR) | 3e9c7445-8861-4c62-9d88-37bdc079009b Hungary (HU) | 5306b94f-7201-4d0e-963e-15852253a389 Germany (DE) | 9db8488d-b1a4-4667-ad16-823182fcc05c Belgium (BE) | b299ec29-266b-47d8-9bac-1b1f71939ac2 Germany (DE) | 650c4659-6e20-450d-9429-4a773007f9d8 France (FR) | 763d83da-d638-4625-863a-ca7127d61a27 Poland (PL) | 6fda508e-db2e-4d4c-ad49-c4bce37d770d Sweden (SE) | adc26b7f-d228-42cf-82a8-bf64dc78457d Norway (NO) | 6f4ff3de-3483-45b2-a644-9af9caf10b37 Poland (PL) | ea69f47a-f96d-410c-b225-75abd4dad186 Belgium (BE) | 36dfdb11-f901-489e-adee-5121558f6e8a Italy (IT) | 399e8f23-4105-43a3-a43b-63cdc683cdc5 Finland (FI) | 250e39f5-5af8-4645-8ae0-9fe80d64967e Croatia (HR) | adf63255-a738-4463-b0ef-6092b0155975 Germany (DE) | 5ff3bcdd-905b-4a7a-ab33-010d2593e9fb Denmark (DK) | 9263924d-1f97-4fd6-aed7-de417186f3e9 Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
7320500355480
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312175
E-Number (Sweden)
3711562
The 1SFA619551R1076 Machine Stop is designed to deliver tangible business value across the automation lifecycle. Feature: mushroom 40 mm actuator with maintained operation and pull release; Benefit: deliberate, fail-safe stops that reduce restart risk and improve worker safety on conveyors and presses; Application: panel-mounted emergency stop in automated lines. Feature: compact footprint with a net width and height of 0.04 m and depth of 0.073 m; Benefit: saves panel space and simplifies enclosure design for compact control panels; Application: space-constrained machine guards in packaging and manufacturing. Feature: front protection IP66/IP67/IP69K and terminals protected at IP20; Benefit: rugged performance in dusty, washdown, or high-pressure environments with dependable field wiring; Application: food processing, automotive assembly, and heavy industry. Feature: rated operational voltage 24–300 V and current capabilities (DC-13 and AC-15); Benefit: versatile integration with existing control systems without extra power supplies; Application: universal compatibility in 24 V control circuits and 230 V AC networks. Feature: screw clamp connections with 0.8 N·m tightening torque and 6 mm wire stripping; Benefit: reliable, quick field wiring that reduces installation time and commissioning risk; Application: panel builders prioritizing fast installs and robust terminations. The device is part of ABB’s pilot device family and aligns with the Data Sheet and safety instructions for a streamlined procurement and installation workflow.
Get a Quick Quote for a ABB 1SFA619551R1076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619551R1076?
Enquire Now
FAQs
For a correct and quick installation, mount the device in a suitable enclosure and connect using the Screw Clamp terminals. Ensure a tightening torque of 0.8 N·m and strip 6 mm of conductor length. The maintained action with a pull release keeps the stop engaged until reset, simplifying integration into existing safety circuits and reducing commissioning time.
The unit operates across 24–300 V with both DC-13 and AC-15 current ratings (DC-13: 0.3 A at 24 V, 0.2 A at 125 V; AC-15: 2 A at 240 V). It features 1NO+1NC contacts, a rated insulation voltage of 300 V, a rated impulse withstand voltage of 6 kV, and a power loss of up to 5 W, supporting reliable, energy-efficient control.
Yes. The device is designed for rugged operation with front protection rated IP66, IP67, and IP69K, and terminal protection IP20. It tolerates dusty and washdown environments, making it ideal for automated lines in packaging, manufacturing, and demanding industrial settings.
The product carries CE and UKCA conformity marks, along with CB, cULus, cURus, CCC declarations, and related safety certifications. It meets REACH and RoHS requirements and has SCIP entries for responsible material sourcing, ensuring global regulatory compliance in diverse markets.
The compact design reduces panel footprint and wiring complexity, cutting installation time and labor costs. The robust, non-illuminated design with maintained operation minimizes nuisance stops and simplifies preventive maintenance. Combined with reliable IP66 front protection and standard screw-terminals, it lowers total cost of ownership over the device lifecycle.
