ABB 1SFA619552R1041 Emergency Stop - IP69K Rated
Part Number: 1SFA619552R1041
Quick Summary
Emergency stop devices from ABB provide immediate machine shutdown for demanding industrial automation environments. Engineers often wrestle with long installation times and uncertain compliance when wiring compact safety pilots into control panels. This model carries CE declarations of conformity, UKCA labeling, and rugged front protection up to IP69K, supporting wash-down operations and harsh environments, while UL/CSA and CB certifications help enable multi-market deployment. The combination of a compact form factor, straightforward screw-terminal wiring, and robust ratings translates to faster deployment, lower total cost of ownership, and safer, more reliable machinery for high-volume production lines.
Product Information
Extended Description

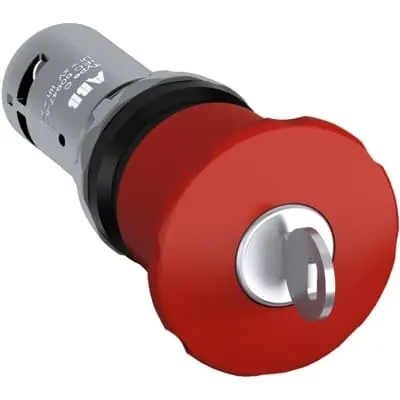

1SFA619552R1041 ABB: The CE4K1-10R-01 Emergency stop is: Compact - Emergency stop - Key release - Maintained - Mushroom 40 mm - Red - Non-illuminated - 0 NO - 1 NC - 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536500000
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.103 m
Product Net Weight
0.064 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 40 mm
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Key release
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 2.5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
342e1ce6-3f48-498c-a8ac-3d49c1adc91e Sweden (SE)
Simplified SCIP
f4613b90-70cd-4cce-b035-13b0a78d38aa Germany (DE) | f748503d-30d0-4708-9f0e-7b10ef0428c1 Belgium (BE) | c5520261-5773-4eea-8dfe-d783b93673c0 Spain (ES) | c2bb13ab-6340-476b-b439-1bc4db89361e Hungary (HU) | 456ab5a7-d8c9-4bcc-9327-f320c9d27118 France (FR) | 53c3f678-0e44-453f-8e6b-40073f05abba Germany (DE) | 0208d19a-c8ff-490a-b46e-190dee46d75a Germany (DE) | 7eeb808e-16dd-462b-bde7-15450e4620a9 France (FR) | 4ea3b4a0-7801-4a60-8384-bf753f5ca341 Poland (PL) | 078a35f1-52d6-4803-b526-b422bd16b3d7 Hungary (HU) | d39cab36-9436-468a-8fda-00947193b70d Netherlands (NL) | 0270ddc4-6b1e-4cad-bb03-824dfda7e0a7 Estonia (EE) | 9ea616ad-478c-415c-a458-f2213d33939f Sweden (SE) | 9fdecf7e-d5e1-41d9-a0fe-ab95f89ed556 Bulgaria (BG) | ab16bffa-6a3e-409e-a33a-ae19a1431143 Portugal (PT) | d02f2159-b1bb-4652-872c-b8450b8572d8 Greece (GR) | 7892d1a0-24a0-4158-8417-d92ec2d70c9f Poland (PL) | 14a9aefe-7e5b-41f1-89f4-88c0fab18e85 Poland (PL) | d28b2f69-0fc3-44fe-b0d8-15ee2c053043 Italy (IT) | c89ed288-bb1f-41a5-bdd5-d724f9bbdc48 Finland (FI) | b3804061-25d9-4385-848c-0b39d1b319e5 Norway (NO) | b742c34e-c1c6-43e9-b048-663aeafc0ce9 Croatia (HR) | c2cf53d8-65bd-4cb3-a4bd-c67ddb8d06f6 Czech Republic (CZ) | 0b6ab284-138c-4ca7-96b9-7f0e2b964e30 Germany (DE) | b36a2f66-8b65-481a-9071-7d1298688f50 Denmark (DK) | 48a875bc-6efd-4d8e-a948-0e77052ffa7c Germany (DE) | 7ff60c31-e845-476a-bbbf-b72e90dd1d10 Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.066 kg
Package Level 1 EAN
7320500308806
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39121545
Feature: Compact mushroom 40 mm actuator, red, non-illuminated, maintained, with 1 NC contact. Business Impact: Saves panel space and simplifies safety interlocks, reducing wiring and mounting time. Application: Ideal for control panels and conveyors where space is at a premium and a clearly positive stop is required. Feature: Rated Operational Voltage 24–300 V and currents (DC-13 and AC-15). Business Impact: Supports both DC and AC control circuits, enabling universal integration without auxiliary power conversion. Application: Suitable for diverse automation architectures in packaging, material handling, and process lines. Feature: Front protection IP66/IP67/IP69K with high dust and wash-down resistance. Business Impact: Delivers reliable performance in harsh environments, lowering maintenance frequency and wear-related failures. Application: Food & beverage, automotive, and pharmaceutical assembly lines where wash-down is common. Feature: Screw Clamp connection, 0.8 N·m tightening torque, and 6 mm wire stripping. Business Impact: Easier field installation with secure, vibration-resistant terminations, shortening commissioning time. Application: Panel wiring in new builds or retrofits. Feature: Regulatory certifications including CE, UKCA, UL/CSA, CB. Business Impact: Ensures market compliance across regions, reducing risk in audits and enabling faster time-to-market. Application: Global deployments across plants with stringent safety standards. Feature: Documentation and safety instructions included. Business Impact: Accelerates safe installation and reduces design risk by providing ready-to-use guidelines. Application: Engineering workstations, maintenance manuals, and onboarding of new technicians.
Get a Quick Quote for a ABB 1SFA619552R1041
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619552R1041?
Enquire Now
FAQs
Install the device on a suitable panel using the provided 0.8 N·m tightening torque for the screw clamp terminals. Ensure the front is protected to IP66/IP67/IP69K and use appropriate wiring within the 24–300 V range. The compact 40 mm mushroom actuator fits tight control panels and maintains a positive stop in busy machine spaces.
The unit operates from 24 to 300 V and supports DC-13 up to 0.3 A at 24 V and 0.2 A at 125 V, as well as AC-15 up to 2 A at 240 V or 220/240 V. It consumes a maximum of 2.5 W, and uses screw-terminal connections for secure wiring.
Yes. The front is protected to IP66, IP67, and IP69K, with terminals rated IP20, making it suitable for wash-down and dusty environments typical of food, beverage, and automotive assembly lines.
The device carries CE and UKCA declarations, UL/CSA/CB certifications, and RoHS compliance. These approvals simplify cross-border procurement, ensure regulatory compliance in multiple regions, and support risk reduction during audits and customer qualifications.
ABB emergency stops provide a robust, compact solution that reduces installation time and wiring complexity, enhances operator safety, and supports multi-market compliance. The maintained contact and reliable IP-rated enclosure help minimize downtime and maintenance costs while improving overall plant safety.
