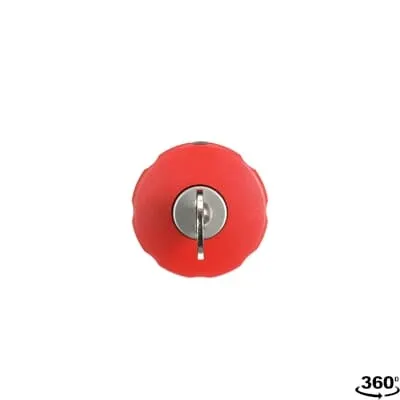

ABB 1SFA619552R1071 Emergency Stop - IP69K front
Part Number: 1SFA619552R1071
Quick Summary
Emergency Stop for industrial control, ABB 1SFA619552R1071 delivers a compact, reliable halt for heavy machinery in demanding environments. This device helps eliminate unintended startup and reduces downtime by providing a robust, maintained stop with a secure key release. Many users struggle with installation complexity and inconsistent performance across rugged production floors; this ABB solution simplifies wiring thanks to screw clamp terminals and clear 24-300 V operation. The compact range is designed for high dust and water resistance, with Front IP66/IP67/IP69K protection and CE/UKCA declarations that support global compliance. By integrating a 1NO+1NC contact set, it ensures safe lockout in both normal and maintenance modes, delivering dependable safety while supporting cost-efficient, scalable control architectures. For engineers, it translates to faster commissioning and lower lifecycle costs.
Product Information
Extended Description
1SFA619552R1071 ABB: The CE4K1-10R-11 Emergency stop is: Compact - Emergency stop - Key release - Maintained - Mushroom 40 mm - Red - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.103 m
Product Net Weight
0.068 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 40 mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Key release
Key Code
Key code 71
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
315b49b3-7196-47fd-8071-6af5aa9dfab2 Sweden (SE)
Simplified SCIP
0039b5ac-8929-4db8-aabf-b3e9f1900f58 Germany (DE) | 090b9a0b-781b-419b-b439-64e391e9b55a Croatia (HR) | c7e86632-b50c-4da1-9f06-a5b38ea1b199 Czech Republic (CZ) | 9c83f91d-3696-42cc-b03b-c96455576802 Denmark (DK) | d4d031fe-14a8-43fc-a47d-830f5e684eff Germany (DE) | 591155dc-0cbf-459e-9547-7e70eb584970 Spain (ES) | 36bf062a-a12d-488a-ad6d-a903e7bd7d3c Belgium (BE) | c4e5a137-45d2-4603-b612-923a10a76a4c France (FR) | fff29b5e-406e-4d4e-aef9-3288fa3d7982 Netherlands (NL) | a81a4c0f-4fe2-4bbf-8558-916796bfca93 Poland (PL) | a5705436-afdc-44fd-a638-bc529995ebb4 Sweden (SE) | bdb2399f-4085-4dc9-bd98-ada1c6788008 Portugal (PT) | 37d8924b-2f00-4859-a14f-5b07cd3eee4e Bulgaria (BG) | dc7d17d5-58a5-4103-8960-7fe178782575 Germany (DE) | b21e4f92-8923-4480-8a0d-d4874e8071f6 Italy (IT) | 8a96d733-fb0f-4252-90fb-cebfce0798b7 Belgium (BE) | d7779ce0-14b5-4717-9b11-a28f7e562bf0 Norway (NO) | 035d6d13-cf92-4d00-a9d8-abc4db92e22a Finland (FI) | f9fd8544-5d6d-41aa-b6da-9ac10151d04b Poland (PL) | f93951b0-ac8b-431b-9697-2817428ef48b Germany (DE) | 5863eb34-d438-429e-96e3-c80edbc77afb France (FR) | c32ca307-e621-4fee-80e8-f1114e1b02b9 Germany (DE) | 26438e26-96b3-452c-94d0-c665da8c4e7f Hungary (HU) | 6e76912e-91ea-46fd-a531-e82f8c137c21 Poland (PL) | 1d5c55ba-64be-49b0-85a7-c98afa805e87 Hungary (HU) | cb492cfd-648e-44b1-bf16-ff3ee6bfd9e5 Greece (GR) | bc2f286e-1a35-4b20-b60b-cecbc81cbf33 Estonia (EE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.07 kg
Package Level 1 EAN
7320500308837
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2313550
E-Number (Norway)
4372825
E-Number (Sweden)
3711528
Feature: Mushroom 40 mm actuator provides a compact footprint that frees panel space and speeds wiring. Business Impact: Reduces enclosure size and installation time, enabling faster machine start-up. Application: ideal for compact control panels in packaging lines, automotive assembly, and automated conveyors. Feature: Maintained operation with key release and 1NO+1NC contacts. Business Impact: enables safe lockout during maintenance and straightforward reset, lowering risk of unintended re-starts. Application: critical safety points in robot cells and line stops where controlled recovery is required. Feature: Wide operating voltage and current ratings 24-300 V and dual current paths. Business Impact: supports diverse control systems and PLCs without multiple part variants, cutting stock and engineering time. Application: integration across multi-vendor safety circuits in process plants and packaging facilities. Feature: Front protection IP66/IP67/IP69K and terminals IP20. Business Impact: withstands dust, immersion, and high-pressure washdowns, increasing uptime and reducing maintenance cycles. Application: food & beverage, pharmaceutical, and metalworking environments with rigorous cleaning protocols. Feature: Screw clamp terminals for flexible and solid conductors (0.5–1.5 mm²). Business Impact: simplifies wiring, improves reliability, and accelerates panel assembly. Application: retrofits and new builds in OEM machines and safety circuits. Feature: Compliance and lifecycle indicators (CE/UKCA, RoHS/REACH, ETIM classifications). Business Impact: ensures regulatory alignment and smoother procurement across regions, lowering total cost of ownership. Application: global rollouts and multi-site projects.
Get a Quick Quote for a ABB 1SFA619552R1071
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619552R1071?
Enquire Now
FAQs
Install by mounting the 40 mm mushroom actuator in a protected panel area, connect conductors to the screw clamp terminals rated for 0.5–1.5 mm², verify tightened torque at 0.8 N·m, and ensure the wiring path avoids strain. The device supports flexible and solid wires, simplifying retrofit projects and minimizing commissioning time.
The unit operates at 24–300 V and provides a 1NO+1NC contact set with maintained operation. Rated currents are suitable for DC-13 and AC-15 contexts, enabling integration with typical PLC safety circuits and control relays without needing multiple variants.
Yes. The front protection is IP66/IP67/IP69K, with terminals rated IP20, making it highly resistant to dust ingress and high-pressure washdown in demanding settings like food processing, automotive assembly, and chemical processing lines.
It carries CE and UKCA declarations, RoHS and REACH compliance, and ETIM classification. Additional certifications include CB, UL/CSA references, and environmental documentation, supporting global procurement and regulatory conformity.
Mechanical durability is rated at up to 0.5 million actuations, with power loss capped at 5 W. The design reduces maintenance frequency and energy use, contributing to lower total cost of ownership in high-cycle safety applications.
