ABB 1SFA619552R1076 Machine Stop - IP69K Front
Part Number: 1SFA619552R1076
Quick Summary
ABB 1SFA619552R1076 Machine Stop is a compact, maintained emergency stop designed for rugged industrial equipment and control panels. Engineers often juggle installation speed, environmental exposure, and safety compliance, which can slow lines down and raise risk. The device carries CE and UKCA declarations, plus UL/cULus safety certification and robust front protection ratings (IP66, IP67, IP69K) to withstand washdowns and dusty environments. As part of ABB’s compact pilot devices family, it streamlines wiring and commissioning, delivering reliability with minimal footprint. With a wide operating temperature range and straightforward screw-terminal wiring, it supports scalable safety strategies across production lines and factories.
Product Information
Extended Description

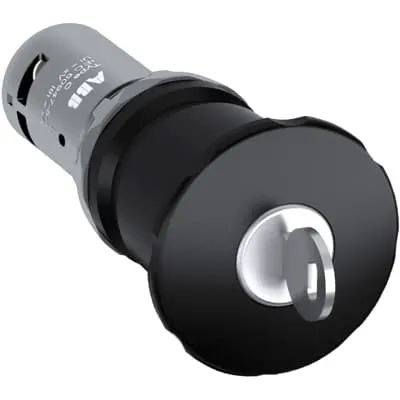

1SFA619552R1076 ABB: The CE4K1-10B-11 Machine Stop is: Compact - Machine Stop - Key release - Maintained - Mushroom 40 mm - Black - Non-illuminated - 1NO+1NC - 24 ... 300 V
This Machine Stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536508090
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.103 m
Product Net Weight
0.068 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Black
Actuator Type
Mushroom 40 mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Key release
Key Code
Key code 71
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
2a912f3f-22d7-4e02-96e4-9119cce8b1e0 Sweden (SE)
Simplified SCIP
825d11b2-eca0-4c0b-b476-c9314a86cc1f Germany (DE) | b129105b-f349-41ed-abcd-87dd26c257e9 Spain (ES) | b54abc3c-40bf-430a-aab8-5f3a9ea862c7 Hungary (HU) | 7b4020af-4319-41ba-a621-812f833cac95 Germany (DE) | 2058e4f1-4c13-4aef-8185-ea866bb20a40 Germany (DE) | 5ff4a5f1-08ed-4b83-ba6c-ecbcfbda8db5 Sweden (SE) | 95d1495d-a60e-4c2d-bea0-08906ac64a50 Poland (PL) | 801c87fa-900e-40a6-aa60-d8846dfcef28 Bulgaria (BG) | 4cec582d-8501-4c01-9be3-705991b8287e Portugal (PT) | 8298ceb9-0a63-458e-bf93-48947e660ec3 Poland (PL) | 4972fac6-865d-45f5-be67-8e53ec448a8b Netherlands (NL) | 8fc0961b-bd52-4044-9d47-f314cb21fa53 Estonia (EE) | 0b180eb7-0780-49ab-aa50-bf01136d5326 Hungary (HU) | 91648824-42bc-4e9b-9649-5215b41e3225 Greece (GR) | 14d4a45b-2f58-4f04-ace9-dd84eaab8b57 Belgium (BE) | 802e7ae7-239b-486c-8eb1-8e1e5b2ed47d Denmark (DK) | 097e6475-2467-4782-bbe3-470ffca35f5a Germany (DE) | a85510f4-5e14-4aa1-b967-d56d6e9fc303 Czech Republic (CZ) | 58c75ce5-34c1-489b-adf6-e29b355d7a30 Croatia (HR) | 4e894a4a-b0bc-4a9b-84a5-9e979f914c28 France (FR) | 629b7e9e-847a-4711-8ff5-a9fae621a34d France (FR) | 21cbf039-cad5-4b3b-8601-cae8199fb457 Germany (DE) | 894957e2-7d86-4880-bdd2-19e36b3cadad Italy (IT) | 7664615e-d550-4fca-b52e-592f65b52bf6 Finland (FI) | 597a2c6c-703e-4cb2-a075-b93ad2b4a7ff Norway (NO) | 24abfa6e-2714-494f-92a7-eb98073b7209 Poland (PL) | db71422e-96e1-429d-bfe2-67a064649442 Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.07 kg
Package Level 1 EAN
7320500355978
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC001028 - Push button, complete
ETIM 8
EC001028 - Push button, complete
eClass
V11.0 : 27371228
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Finland)
2312176
E-Number (Sweden)
3711564
The compact all-in-one design reduces installation time and cost, delivering fewer components and simpler wiring. This translates to faster commissioning on control panels and small to mid-size machines. The device’s versatile electrical ratings enable seamless integration across 24-300 V safety circuits, with a 6 kV impulse withstand for higher fault tolerance in harsh environments. The maintained 1NO+1NC with key release provides tamper-resistant safety control, paired with a mushroom 40 mm actuator for intuitive operation. Front IP66/IP67/IP69K protection, along with Terminals IP20, ensures robust dust and washdown resistance—ideal for food processing, packaging lines, and chemical plants. Screw clamp terminals with 0.8 N·m tightening torque simplify field wiring and reduce termination errors. The wide operating temperature range from -25 to +70 °C supports both outdoor enclosures and busy factory floors. Certifications including CE, UKCA, and UL/cULus streamline compliance and supplier audits, while power consumption stays under 5 W to minimize heat and energy use.
Get a Quick Quote for a ABB 1SFA619552R1076
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619552R1076?
Enquire Now
FAQs
Install using the screw clamp terminals, tighten to 0.8 N·m, and use conductor sizes flexible 0.5–1.5 mm² or solid 0.5–1.5 mm² (or equivalent UL/CSA equivalents). Connect 1NO+1NC as per the wiring diagram, ensuring correct polarity for DC and AC operation. The compact design reduces panel space and supports quick commissioning.
The device carries CE and UKCA declarations along with UL/cULus certification and cURus recognition, aligning with global safety standards. These certifications simplify supplier qualification, reduce audit risk, and support cross-border procurement for automotive, packaging, and process industries.
Yes. It features front protection ratings IP66, IP67, and IP69K, providing robust dust and washdown resistance while terminals retain IP20 protection. This makes it appropriate for food processing, beverage lines, and chemical processing areas where frequent cleaning is required.
Rated Operational Voltage is 24–300 V. For DC‑13, Ie is 0.3 A at 24 V and 0.2 A at 125 V. For AC‑15, Ie is 2 A at 240 V or 220/240 V. The device also withstands up to 6 kV impulse with a maximum 5 W power loss.
Minimum order quantity is 10 pieces. Use the 0.04 m width/height and 0.103 m depth form factor to fit the panel. Wiring uses flexible or solid conductors with ferrules, and the device supports a variety of enclosure types and mounting arrangements within ABB’s compact pilot devices family.
