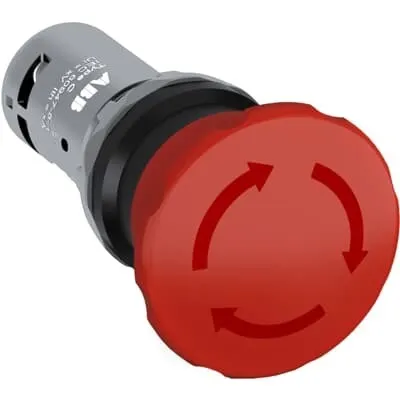

ABB 1SFA619560R1051 Emergency Stop - IP66 Front
Part Number: 1SFA619560R1051
Quick Summary
ABB 1SFA619560R1051 Emergency Stop is a compact, maintained stop device designed for safe shutdown in industrial automation. In crowded control panels or harsh environments, installation speed and reliability are critical, and miswiring or poor visibility can cause costly downtime. This emergency stop carries CE and UKCA declarations, with cULus and cURus certifications, and a robust front-facing IP66/IP67/IP69K protection rating to withstand washdowns and dust. The product also aligns with RoHS and REACH standards, ensuring regulatory compliance. For engineers and procurement teams, the combination of a slim footprint, proven safety performance, and ABB's pilot devices ecosystem translates into faster commissioning, reduced wiring, and lower total cost of ownership while maintaining safety integrity.
Product Information
Extended Description
1SFA619560R1051 ABB: This Emergency stop with legend plate is: Compact - Emergency stop - Twist release - Maintained - Mushroom 40 mm - Red - Non-illuminated - 2 NC -with 70mm plastic yellow legend plate KTC15-1038- 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536500000
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.07 m
Product Net Height
0.07 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.038 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 40 mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Twist release
Number of Auxiliary Contacts NC
2
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 1 A
Power Loss
Maximum 5 W
Mechanical Durability
0.5 million
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
6975486355606
Object Classification Code
S
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
E-Number (Norway)
4372717
Feature: Compact, maintained 40 mm mushroom actuator with twist release and 2 NC auxiliary contacts. Benefit: Saves panel space and simplifies wiring, enabling quicker installation and easier fault isolation in automated lines. Application: Suitable for conveyors, presses, and packaging machines where space is at a premium and reliable stop signaling matters. Feature: Front protection rated IP66, IP67, and IP69K with terminals protected to IP20. Benefit: Delivers rugged performance in dusty, wet, or washdown environments, reducing downtime due to contamination or corrosion. Application: Ideal for food & beverage lines, metalworking, and process equipment exposed to harsh cleaning cycles. Feature: Wide operating voltage 24–300 V and 2 NC contacts with screw clamp terminals. Benefit: Delivers flexible electrical compatibility and robust connectivity, lowering wiring errors and panel redesign costs. Application: Fits diverse control schemes, from low-voltage PLC interfaces to higher voltage control circuits. Feature: Tightening torque 0.8 N·m and compatible wire ranges up to 1.5 mm². Benefit: Ensures reliable, vibration-resistant connections in dynamic environments, improving signal integrity. Application: Quick commissioning in stamped components and modular control panels. Feature: RoHS, REACH, and WEEE compliance with multiple certification marks (CE, UKCA, CB, cULus, cURus, CCC). Benefit: Reduces regulatory risk and end-of-life costs, simplifying procurement across regions. Application: Global deployments with consistent safety and environmental standards. Feature: Part of ABB’s compact range for faster installation and reduced total cost of ownership. Benefit: Shortens project timelines and lowers installation labor, wiring, and commissioning efforts. Application: New machinery builds or retrofit projects seeking efficient pilot-device solutions.
Get a Quick Quote for a ABB 1SFA619560R1051
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619560R1051?
Enquire Now
FAQs
This device uses screw clamp terminals with flexible conductor options (0.5–1.5 mm²), requires a tightening torque of 0.8 N·m, and supports 24–300 V operation with 2 NC contacts. Its compact 40 mm mushroom actuator fits many panel cutouts, while the 70 mm legend plate improves visibility in busy environments. It is compatible with standard PLC inputs and ABB's pilot devices ecosystem to streamline wiring and commissioning.
The product carries CE and UKCA declarations, plus cULus and cURus certifications, and CCC declarations, among others. These certifications validate compliance with safety, electromagnetic compatibility, and environmental standards across markets. For procurement, this reduces regulatory risk and simplifies global sourcing for multinational projects.
Yes. With Front IP66, IP67, and IP69K protection, the emergency stop is designed to withstand dust, water jets, and high-pressure washdowns. The operating temperature range (-25 to +70 °C) further supports reliability in harsh environments such as metalworking, food processing, and packaging lines.
The minimum order quantity is 10 pieces, which helps maintain cost efficiency on small-to-mid scale projects. Lead times vary by region and stock, but ABB’s compact range is designed for predictable fulfillment and straightforward replenishment for ongoing maintenance and retrofits.
Key advantages include the screw clamp terminal design for secure connections, a 0.8 N·m tightening torque to resist vibration, and the 2 NC configuration for reliable control signaling. The compact footprint reduces panel space, enabling faster wiring, reduced assembly time, and quicker testing during commissioning.
