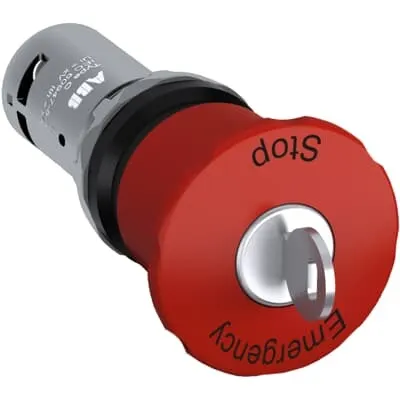

ABB 1SFA619599R1002 Emergency Stop - IP66/IP67/IP69K
Part Number: 1SFA619599R1002
Quick Summary
ABB emergency stop 1SFA619599R1002 provides a compact, maintained stop pushbutton solution for machine guarding in industrial automation. Wiring time and miswiring risks are common headaches when upgrading control panels. This device ships with CE and UKCA declarations and front protection rated IP66/IP67/IP69K, plus a 6 kV impulse withstand for harsh environments. Designed for pilot devices and ABB's compact range, it helps reduce installation time and lifecycle costs. In manufacturing environments, this emergency stop switch supports safety compliance while delivering reliability and ease of integration for your automation projects.
Product Information
Extended Description
1SFA619599R1002 ABB: The CE9-1002 Emergency stop is: Compact - Emergency stop - Key release - Maintained - Mushroom 40 mm - Red - Non-illuminated - 1NO+1NC - 1 NO - 1 NC - with emergency stop making - 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536500000
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Dimension Diagram
Engraved symbol - 046.svg
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.103 m
Product Net Weight
0.038 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 40 mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Key release
Device Marking
Emergency Stop
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
7320500357927
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39121545
Feature: Compact design from ABB's compact range reduces panel footprint and installation time. Business Impact: Faster commissioning, reduced wiring complexity, and lower labor costs. Application: New machine builds and retrofit projects where space is at a premium. Feature: Maintained function with key release and 1NO+1NC contacts ensures deliberate shutdown and simple reset. Business Impact: Improves operator safety and fault isolation, minimizing accidental restarts. Application: Hazardous-area control panels and safeguarding circuits. Feature: Wide operating voltage and current ratings (24–300 V, 50/60 Hz; (24 V) 0.3 A DC, (125 V) 0.2 A; (240 V) 2 A AC-15; Power loss max 5 W). Business Impact: One device supports multiple control systems, reducing part diversity and stock. Application: Mixed-voltage control circuits and retrofit on legacy lines. Feature: Front IP66/IP67/IP69K protection and IP20 terminals offer rugged sealing against dust and water ingress. Business Impact: Higher uptime in dirty, washdown, or humid environments. Application: Packaging, food & beverage, and outdoor equipment enclosures. Feature: Screw clamp connections (0.8 N·m torque) and 6 mm wire stripping length enable straightforward field wiring. Business Impact: Quicker installs with reliable terminations and fewer contact issues. Application: Panel builders and onsite maintenance. Feature: Comprehensive compliance and certifications (CE, UKCA, RoHS, REACH, WEEE B2B). Business Impact: Reduces regulatory risk and accelerates approvals for global deployments. Application: International projects and multi-site rollouts.
Get a Quick Quote for a ABB 1SFA619599R1002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619599R1002?
Enquire Now
FAQs
Install the unit using the screw clamp terminals rated for flexible or solid conductors from 0.5 to 1.5 mm². Tighten to 0.8 N·m and strip about 6 mm of insulation. Mount the mushroom 40 mm actuator in the panel opening, connect 1NO and 1NC contacts, and verify the maintained operation by testing the key release mechanism. This setup minimizes wiring errors and speeds up commissioning.
The device features 1NO + 1NC auxiliary contacts with a rated operational voltage of 24–300 V and rated current for AC-15 at 240 V (2 A) or DC-13 (24 V) up to 0.3 A, with 0.2 A at 125 V. It supports 50/60 Hz operation and consumes no more than 5 W, making it versatile for mixed-control systems and energy-conscious installations.
Yes. The emergency stop features front protection ratings IP66, IP67, and IP69K with terminals protected to IP20, allowing reliable operation in dusty, wet, and washdown environments. Operating temperature ranges from -25 to +70 °C, enabling use across varied industrial climates without special housing.
The device ships with CE and UKCA declarations, RoHS and REACH compliance, and WEEE classification for B2B use. It also aligns with ETIM and multiple regional approvals, supporting safe integration into global product catalogs and customer specifications.
The compact design reduces panel space and installation time, and the 24–300 V compatibility lowers wiring harness diversity. High reliability and robust sealing minimize maintenance and downtime, delivering faster line start-ups, fewer spare parts, and compliance-driven risk reduction—an attractive ROI for OEMs and integrators.
