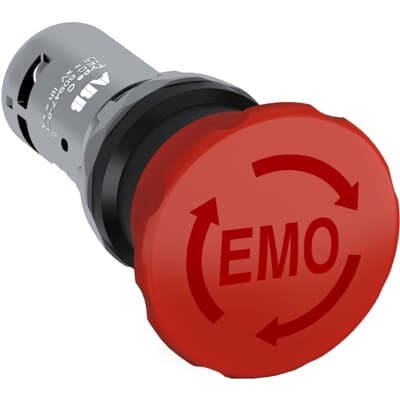

ABB 1SFA619599R1003 Emergency Stop - Front IP66/IP67/IP69K
Part Number: 1SFA619599R1003
Quick Summary
The ABB 1SFA619599R1003 Emergency Stop provides a compact, robust stop solution for safe machine guarding in manufacturing and packaging lines. When space is tight and environments are harsh, operators struggle with bulky devices and complex wiring that slow down installs. This unit carries CE and UKCA declarations of conformity, along with UL/cULus certifications and RoHS/REACH compliance, signaling broad regulatory alignment. Its 40 mm mushroom actuator, maintained action, and 24–300 V operating range support efficient panel layouts, while front protection IP66/IP67/IP69K ensures reliability in washdown and dusty environments. Together, these features translate into faster project implementation and reduced total cost of ownership for multi-site automation deployments.
Product Information
Extended Description
1SFA619599R1003 ABB: The CE9-1003 Emergency stop is: Compact - Emergency stop - Twist release - Maintained - Mushroom 40 mm - Red - Non-illuminated - 2NC - 0 NO - 2 NC - 24 ... 300 V
This Emergency stop is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
8536500000
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.04 m
Product Net Height
0.04 m
Product Net Depth / Length
0.073 m
Product Net Weight
0.038 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Actuator Type
Mushroom 40 mm
Bezel Material
n/a
Illumination
Non-illuminated
Function
Maintained
Sub-Function
Twist release
Device Marking
EMO
Number of Auxiliary Contacts NC
2
Number of Auxiliary Contacts NO
0
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Insulation Voltage (Ui)
300 V
Rated Impulse Withstand Voltage (Uimp)
6 kV
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
24 ... 300 V
Rated Operational Current DC-13 (Ie)
(24 V) 0.3 A | (125 V) 0.2 A
Rated Operational Current AC-15 (Ie)
(240 V) 2 A | (220 / 240 V) 2 A
Power Loss
Maximum 5 W
Connecting Capacity
Flexible with Ferrule 1 x 0.5...1.5 mm² | Flexible with Ferrule 2 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 1 x 0.5...1.5 mm² | Flexible with Insulated Ferrule 2 x 0.5...1.5 mm² | Flexible 1 x 0.5 ...1.5 mm² | Flexible 2 x 0.5 ...1.5 mm² | Solid 1 x 0.5...1.5 mm² | Solid 2 x 0.5...1.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
6 mm
Connecting Capacity UL/CSA
1x 22...14 AWG | 2x 22...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
4533a759-ee09-46e0-8a6a-7f6fe9dffb8d Sweden (SE)
Simplified SCIP
cb1607ed-f505-4465-b13a-3f96ce3c3260 Germany (DE) | e86e6a15-ba40-4279-a971-a6cf81749d57 Belgium (BE) | e3c852dc-5119-419f-ada7-0eafd97eb3e2 Spain (ES) | 033d09ff-5f93-44f8-a3f9-0fa27ed64e8a Hungary (HU) | f4bf0052-868a-4be6-8353-215edb79ff59 France (FR) | cf59e7b5-b46a-42e8-967b-11fede00eb83 Germany (DE) | 15ccb9a4-b79b-43c1-8050-4ae91d070095 Germany (DE) | 3d5314dc-c069-4aec-97e2-72dae9bfc38d France (FR) | 01c8e943-d9a2-4ae2-9277-dc0ba9ee0dfc Poland (PL) | 5ee9fcac-13d0-4fcd-bbdd-6e2cda8741d3 Estonia (EE) | 2909b2aa-aad8-4d75-8637-9426a91877de Netherlands (NL) | 98d20d7f-0e46-45dc-9ce2-31c73e75d12d Hungary (HU) | b967e590-a74c-4800-beb4-a0a40469ee8c Greece (GR) | 226a6c94-19cd-46db-835e-4c7e8ce8249c Portugal (PT) | 334deea2-cfb5-4055-8bd7-ff9e76ee05f1 Poland (PL) | 1ef06cc5-c983-4f0f-a8dc-31e43db40d83 Sweden (SE) | 0278577e-d3d3-48ab-a29f-e26da41104ee Bulgaria (BG) | 43eec297-fa34-446e-a67d-d58bc2c47e47 Germany (DE) | 9bc8ed33-7468-460e-8e22-7efc281985f3 Italy (IT) | cc9efebb-7ddf-436a-8f0b-0520443a89a3 Finland (FI) | e1379ddf-c1fa-4ce1-911c-a3465befd45f Poland (PL) | 9309f29b-d918-4d14-9fa8-340e1b859f93 Norway (NO) | 0b632abe-ce70-4dd1-b660-ccbe7755c5f6 Belgium (BE) | db40a965-d2f6-4769-becf-93dadd0c0309 Denmark (DK) | 35e5787a-d053-42ea-9643-96d0e080430e Croatia (HR) | a59674b3-31b7-42fe-9567-d103d3c3794d Czech Republic (CZ) | d5b5a576-6d07-4c0c-96b2-d82a2eb5fce1 Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cULus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.09 m
Package Level 1 Height
0.045 m
Package Level 1 Gross Weight
0.04 kg
Package Level 1 EAN
7320500359068
Object Classification Code
S
ETIM 6
EC002034 - Emergency stop complete
ETIM 7
EC002034 - Emergency stop complete
ETIM 8
EC002034 - Emergency stop complete
eClass
V11.0 : 27371244
UNSPSC
39122216
IDEA Granular Category Code (IGCC)
5212 >> Push button for distribution board
Feature: Compact 40 mm mushroom actuator. Benefit: Saves panel space and simplifies mounting, enabling quicker retrofits in tight automation enclosures. Application: Control panels for packaging lines and small footprint machines. Feature: Maintained function with twist release. Benefit: Safe, deliberate reset without accidental resets, improving operator confidence and line uptime. Application: Critical stop points where controlled restart is required after a fault. Feature: Wide rated voltage 24–300 V. Benefit: Supports mixed power architectures and facilitates cross-platform control integration, reducing inventory needs. Application: Robotic cells, conveyors, and multi-voltage control cabinets. Feature: 2 NC auxiliary contacts. Benefit: Enables simple interlocks and status signaling without added components, lowering wiring complexity and cost. Application: Safety circuits and machine interlocks. Feature: Front IP66/IP67/IP69K protection. Benefit: Heavy-duty protection for washdown, dust, and harsh production floors, reducing maintenance frequency. Application: Food processing, chemicals, and outdoor installations. Feature: Screw clamp terminals with 0.8 N·m torque. Benefit: Reliable, vibration-resistant connections and easier field wiring, cutting install time. Application: Panel wiring in demanding environments. Feature: Low power loss (<5 W). Benefit: Reduced heat generation and energy use in continuous operation, improving overall system efficiency. Application: Safety-rated control circuits with long duty cycles. Feature: Regional certifications (CE, UKCA, UL/cULus, cURus, CB, CCC). Benefit: Simplified compliance across sites, reducing regulatory risk and procurement delays. Application: Global rollouts and multi-site projects.
Get a Quick Quote for a ABB 1SFA619599R1003
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619599R1003?
Enquire Now
FAQs
The 1SFA619599R1003 uses a standard 40 mm mushroom actuator that fits 40 mm DIN cutouts. Its net dimensions are 0.04 m wide and 0.04 m high with a depth of 0.073 m, making it suitable for tight spaces. Wiring is via screw clamp terminals supporting flexible and solid conductors from 0.5 to 1.5 mm², tightened to 0.8 N·m.
It provides 2 NC auxiliary contacts and 0 NO, with rated operational voltage 24–300 V. Operational currents are (DC-13) 0.3 A at 24 V and 0.2 A at 125 V, and (AC-15) 2 A at 240 V and 2 A at 220/240 V. Impulse withstand voltage is 6 kV, and insulation voltage Ui is 300 V.
Yes. The device features front protection ratings IP66, IP67, and IP69K, with terminals protected to IP20. It is designed for harsh industrial settings, including washdown areas, dusty floors, and temperature ranges from -25 to +70 °C, ensuring reliable operation in demanding environments.
The product ships with CE and UKCA declarations of conformity, and UL/cULus and cURus certifications. Additional compliance includes CB, CCC, RoHS and REACH declarations, WEEE considerations, and SCIP registrations, supporting global deployments and supplier due-diligence.
The compact 40 mm design reduces panel space and wiring time, while screw clamp terminals and a 0.8 N·m torque streamline field assembly. With low power draw (≤5 W) and broad voltage compatibility, you can lower installation costs, improve uptime, and achieve faster payback in high-volume lines.
