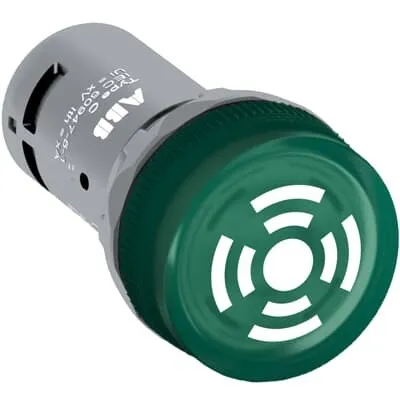

ABB 1SFA619600R6022 Buzzer - IP66/IP67
Part Number: 1SFA619600R6022
Quick Summary
ABB 1SFA619600R6022 Buzzer provides continuous audible signaling for machinery and panel status in automation environments. Installing reliable signaling devices quickly without extra enclosure work is a common challenge in harsh environments. Featuring front protection to IP66, IP67 and IP69K, CE and UKCA conformity, and CB/UL‑CSA certifications, this pilot device supports global compliance. Its compact, illuminated design reduces wiring complexity and installation time while delivering clear status indication across demanding industrial applications. For panel builders and operators, this ABB compact-range buzzer blends rugged performance with straightforward wiring, helping achieve faster time-to-value. Its compatibility with flexible and solid conductors and robust sealing support predictable maintenance cycles in regulated facilities.
Product Information
Extended Description
1SFA619600R6022 ABB: The CB1-602G Buzzer is: Compact - Buzzer - Continuous sound with continuous light - Green - Illuminated - 110 ... 130 V
This Buzzer is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
85369001
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.021 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Illumination
Illuminated
Function
Continuous sound with continuous light
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Supply Circuit 110 ... 130 V DC
Sound dB (A)
80 dB
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.05 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.125 m
Package Level 1 Gross Weight
0.214 kg
Package Level 1 EAN
7320500400968
Object Classification Code
P
ETIM 6
EC001026 - Acoustic indicator
ETIM 7
EC001026 - Acoustic indicator
ETIM 8
EC001026 - Acoustic indicator
eClass
V11.0 : 27371214
UNSPSC
46171607
IDEA Granular Category Code (IGCC)
7389 >> Buzzers
E-Number (Finland)
2313693
Feature: Compact overall footprint as part of ABB's compact range. Business Impact: Minimizes panel space requirements and shortens assembly time. Application: Ideal for control panels and machine enclosures with limited space. Feature: Continuous 80 dB audible signaling with green illumination. Business Impact: Delivers immediate, unambiguous status cues to operators, reducing reaction time. Application: Start/stop signaling, fault alerts, and process-up indications in harsh environments. Feature: Electrical compatibility: 110-130 V DC supply, 50/60 Hz, screw clamp terminals. Business Impact: Simplifies field wiring and ensures reliable termination with 0.9 N·m torque and 8 mm stripping. Application: Panel wiring and quick replacement in existing ABB pilot device installations. Feature: Robust enclosure and environmental ratings: IP66/IP67/IP69K front; NEMA Type 1/12/13/3R/4/4X. Business Impact: Maintains performance in dust, washdown, and outdoor exposure, reducing maintenance and replacement costs. Application: Suitable for manufacturing lines, washdown rooms, and outdoor enclosures. Feature: Wide operating temperature and materials compliance: -25 to +70 °C, RoHS/REACH/TSCA, CE/UKCA, CB, UL/CSA. Business Impact: Ensures performance across global sites and regulatory compliance, streamlining procurement. Application: Global supply chains and international projects needing compliant signaling. Feature: Installation and compatibility details: Screw clamp and terminal types, 0.9 N·m tightening torque, 8 mm wire stripping. Business Impact: Reduces installer errors and service time, promotes repeatable installations. Application: Field upgrades and new builds of pilot devices and automation panels.
Get a Quick Quote for a ABB 1SFA619600R6022
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619600R6022?
Enquire Now
FAQs
This buzzer uses screw clamp terminals and requires a tightening torque of 0.9 N·m. Wire insulation stripping should be 8 mm, and conductors can be flexible or solid in the 0.75–2.5 mm2 range. Mounting should align with the front IP66/IP67/IP69K protection, ensuring the device is kept clean and dry in harsh environments.
The unit operates on 110–130 V DC with a rated frequency of 50/60 Hz. It features screw clamp terminals for secure terminations and a standard 0.9 N·m tightening torque, enabling reliable field wiring and straightforward replacement in existing ABB pilot device installations.
Yes. The front of the buzzer carries IP66, IP67 and IP69K protection, with additional NEMA ratings (Type1, Type12, Type13, Type3R, Type4, Type4X) to handle dust, water exposure, and washdown conditions, reducing the risk of moisture ingress and extending service life.
The device carries CE and UKCA conformity, along with CB, UL/CSA, CQC, and other global compliance markings. RoHS, REACH, and TSCA declarations are included, supporting procurement across multiple regions and simplifying audits for regulated projects.
The compact, robust design reduces installation time and panel space while delivering clear audible and visual signaling. Global certifications simplify multi-site deployments, lowering procurement risk. Its durable enclosure minimizes maintenance needs in harsh environments, contributing to lower lifecycle costs for automation panels.
