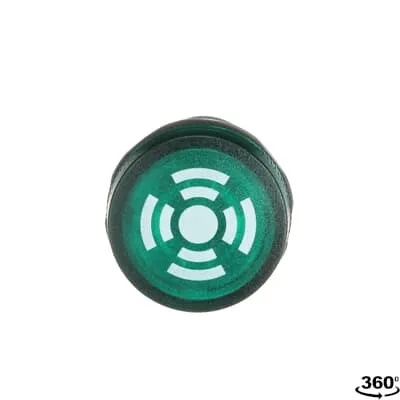

ABB 1SFA619600R6032 CB1-603G Buzzer - IP66/IP67/IP69K
Part Number: 1SFA619600R6032
Quick Summary
ABB CB1-603G Buzzer is a compact audible indicator for control panels and automation lines. Engineers often struggle with installation speed and wiring complexity in tight enclosures. It carries CE and UKCA declarations, RoHS compliance, and CB/cURus certifications to support global deployments. With IP66 front protection and a 230V AC rating, it stands up to dusty floors and wash-down zones while the compact range helps cut installation time and total cost for pilot devices and panel signaling.
Product Information
Extended Description
1SFA619600R6032 ABB: The CB1-603G Buzzer is: Compact - Buzzer - Continuous sound with continuous light - Green - Illuminated - 230V AC
This Buzzer is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
85369001
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.021 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Green
Illumination
Illuminated
Function
Continuous sound with continuous light
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Supply Circuit 230V AC V
Sound dB (A)
80 dB
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.05 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.125 m
Package Level 1 Gross Weight
0.214 kg
Package Level 1 EAN
7320500400975
Object Classification Code
P
ETIM 6
EC001026 - Acoustic indicator
ETIM 7
EC001026 - Acoustic indicator
ETIM 8
EC001026 - Acoustic indicator
eClass
V11.0 : 27371214
UNSPSC
46171607
IDEA Granular Category Code (IGCC)
7389 >> Buzzers
E-Number (Finland)
2313695
E-Number (Sweden)
3705040
The CB1-603G Buzzer leverages a compact, all-in-one design to reduce parts and simplify panel assembly, delivering measurable efficiency gains on high-mix assemblies. Benefit: streamlined installation and fewer connection errors leads to faster project timelines and lower labor cost; Application: pilot devices on automated lines. The screw clamp terminals support flexible and solid conductors from 0.75 to 2.5 mm², enabling quick terminations and reliable field wiring; Impact: minimizes commissioning delays and re-termination risk; Application: control panels with constrained wiring channels. Operating temperature from -25 to +70 °C, plus dust and water resistance (Front IP66/IP67/IP69K), ensures dependable signaling in harsh manufacturing environments; Impact: reduces unexpected downtime and maintenance costs; Application: conveyors, presses, and robotic cells. Enclosure versatility (NEMA Type 1/12/13/3R/4/4X) provides mounting flexibility across environments; Impact: broader deployment without changing hardware; Application: modular machine kiosks and control enclosures. Compliance and sustainability features (RoHS, REACH, TSCA, CB/UL family certifications, WEEE) support regulated procurement and responsible sourcing; Impact: smoother audits and supplier qualification; Application: global plant rollouts. Minimum order quantity of 10 pieces and compact packaging streamline procurement and spare-part planning; Impact: lowers inventory carrying costs; Application: distributor stocking and service centers.
Get a Quick Quote for a ABB 1SFA619600R6032
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619600R6032?
Enquire Now
FAQs
The buzzer uses screw clamp terminals compatible with flexible and solid conductors from 0.75 to 2.5 mm². Terminal tightening torque is 0.9 N·m, and wire stripping length is 8 mm. This allows fast, reliable terminations in tight panel spaces and reduces re-termination risk during field wiring or retrofit projects.
It features a front protection rating of IP66, with compatible IP67/IP69K front protection, and EN/NEMA suitable enclosure compatibility. The operating temperature range of -25 to +70 °C supports harsh factory floors, ensuring consistent audible signaling in dusty, humid, or wash-down zones.
Yes. It carries CE and UKCA declarations, RoHS compliance, and CB and cURus certificates for pilot devices. Additional certifications and declarations support regulatory compliance in global deployments and supplier qualification programs.
It's ideal for pilot devices, control panel signaling, and process status indication on automated lines. The green illumination plus continuous sound provides immediate operator feedback, improving response times on conveyors, presses, and robotics cells while reducing downtime due to signaling gaps.
Benefits include reduced wiring effort, fewer components, and faster commissioning thanks to the compact integration. The rugged IP-rated design and long-term certifications translate to lower maintenance costs and higher equipment uptime, delivering predictable TCO improvements in multi-site manufacturing environments.
