ABB 1SFA619600R6101 Buzzer - Front IP66/IP67/IP69K
Part Number: 1SFA619600R6101
Quick Summary
ABB 1SFA619600R6101 Buzzer is a compact audible indicator with pulsating light designed for panel-mounted signaling in automation and safety circuits. Installing signaling devices often requires coordinating separate sounders and beacons, which can extend project timelines and increase wiring. This device provides CE and UKCA compliance with CB and UL/CSA certifications, offering regulatory assurance for global deployments. As part of ABB's compact range, it delivers an all-in-one signaling solution that reduces installation time and maintenance costs while ensuring robust visibility and reliable audible alerts in demanding environments. For engineers and procurement teams, the ABB compact buzzer combines performance, simplicity, and compliance in a single, space-saving package that supports pilot devices and control-panel signaling strategies.
Product Information
Extended Description

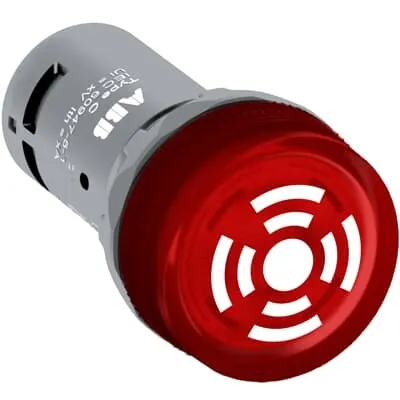

1SFA619600R6101 ABB: The CB1-610R Buzzer is: Compact - Buzzer - Pulsating sound with pulsating light - Red - Illuminated - 24 V
This Buzzer is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
AETAD009EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
BRABB008EXPU
Country of Origin
China (CN)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
CHSEC006EXPU
Lead Time
35 day
Warranty Return
Product under warranty must be returned
Stocked At Warehouses
CZABB004EXPU
Country of Origin
China (CN)
Made To Order
No
Product Sales Status
Active
Quote Only
No
Minimum Order Quantity
10 piece
Customs Tariff Number
85369001
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.021 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Red
Illumination
Illuminated
Function
Pulsating sound with pulsating light
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Supply Circuit 24 V AC/DC
Sound dB (A)
80 dB
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.05 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.125 m
Package Level 1 Gross Weight
0.214 kg
Package Level 1 EAN
7320500401187
Object Classification Code
P
ETIM 6
EC001026 - Acoustic indicator
ETIM 7
EC001026 - Acoustic indicator
ETIM 8
EC001026 - Acoustic indicator
eClass
V11.0 : 27371214
UNSPSC
46171607
IDEA Granular Category Code (IGCC)
7389 >> Buzzers
E-Number (Finland)
2313697
E-Number (Sweden)
3705038
Feature compact all-in-one design → Business Impact reduces installation time and wiring complexity, lowering labor costs and panel space usage → Application control panels and machine signaling in automation lines. Feature pulsating sound with pulsating light → Business Impact improves notification visibility in loud environments, enhancing safety response times → Application packaging lines, emergency stops, and visual-audio signaling in industrial settings. Feature 24 V AC/DC supply and 50/60 Hz compatibility → Business Impact simplifies power sourcing across global sites and reduces inventory variety → Application standard control circuits and mixed-voltage installations. Feature Front IP66 / IP67 / IP69K protection → Business Impact delivers rugged washdown and dust resistance, extending service intervals and reliability → Application food and beverage, automotive, and process industries with rigorous cleaning. Feature Screw Clamp connections and 0.9 N·m tightening torque → Business Impact ensures dependable, vibration-resistant terminations and faster field assembly → Application panel front loads and field side terminations in harsh environments. Feature Operating temperature -25 to +70 °C → Business Impact enables year-round operation in extreme climates, reducing failures and warranty costs → Application outdoor enclosures and unconditioned industrial spaces. Feature Comprehensive certifications (CE, UKCA, CB, UL/CSA) → Business Impact streamlines acceptance across multinational plants and compliance audits → Application global rollouts and supplier qualification. Feature Minimum Order Quantity 10 piece and multi-warehouse stocking → Business Impact improves project planning and reduces lead times for large deployments → Application spare parts planning and bulk allocations for OEMs and integrators.
Get a Quick Quote for a ABB 1SFA619600R6101
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619600R6101?
Enquire Now
FAQs
Install by mounting the compact unit on the panel and wiring through the screw clamp terminals. Use wire sizes within 0.75 to 2.5 mm² and tighten to 0.9 N·m. The front-loaded design minimizes panel footprint and simplifies field wiring, enabling quicker installation and reliable termination in harsh environments.
The device operates from 24 V AC/DC and supports 50/60 Hz. It emits an audible sound of 80 dB (A) and features pulsating sound with pulsating light for clear signaling. It is designed for durable operation in control panels and signaling applications where precise audible and visual indication is required.
Yes. The buzzer offers Front IP66, IP67, and IP69K protection, with a rugged enclosure suitable for washdown and dusty environments. It also supports a range of NEMA enclosures and is built for reliable performance in demanding industrial settings such as manufacturing lines and process plants.
It carries CE and UKCA compliance, plus CB Certificate and UL/CSA compatibility documentation. These certifications help streamline regulatory approvals across Europe, North America, and other regions, supporting global installation projects and supplier qualification programs.
The product has a Minimum Order Quantity of 10 pieces and is stocked at multiple warehouses (e.g., AETAD009EXPU, BRABB008EXPU, CHSEC006EXPU, CZABB004EXPU). Lead time is listed as 0 days, enabling rapid deployment for large-scale installations and OEM integrations.
