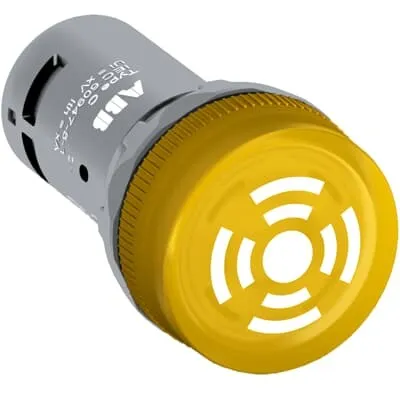

ABB CB1-610Y Buzzer - 1SFA619600R6103 IP66/IP67/IP69K
Part Number: 1SFA619600R6103
Quick Summary
The ABB CB1-610Y Buzzer is a compact audible and visual signaling device designed for control panels and machine enclosures. Wiring multiple signaling devices separately can inflate install time and maintenance costs. With IP66 front protection and CE/UL/CSA and UKCA declarations, it delivers rugged performance in harsh environments. This compact, plug‑and‑play signaling solution reduces installation time while supporting compact machinery and pilot-device ecosystems. As part of ABB's compact range, this device integrates easily with existing signaling cores and pilot devices, reducing stocking complexity and spare parts. The 24 V AC/DC supply and pulsating sound with pulsating light deliver clear alerts even in harsh production lines.
Product Information
Extended Description
1SFA619600R6103 ABB: The CB1-610Y Buzzer is: Compact - Buzzer - Pulsating sound with pulsating light - Yellow - Illuminated - 24 V
This Buzzer is part of ABB's compact range, the most efficient all-in-one solution available, reducing installation time and cost.
The compact range has a high level of dust and water resistance.
Minimum Order Quantity
10 piece
Customs Tariff Number
85369001
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
Product Net Width
0.03 m
Product Net Height
0.03 m
Product Net Depth / Length
0.055 m
Product Net Weight
0.021 kg
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Color
Yellow
Illumination
Illuminated
Function
Pulsating sound with pulsating light
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Pollution Degree
3
Rated Frequency (f)
50 / 60 Hz
Rated Operational Voltage
Supply Circuit 24 V AC/DC
Sound dB (A)
80 dB
Connecting Capacity
Flexible with Ferrule 1 x 0.75...2.5 mm² | Flexible with Ferrule 2 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 1 x 0.75...2.5 mm² | Flexible with Insulated Ferrule 2 x 0.75...2.5 mm² | Flexible 1 x 0.75 ... 2.5 mm² | Flexible 2 x 0.75 ... 2.5 mm² | Solid 1 x 0.75...2.5 mm² | Solid 2 x 0.75...2.5 mm²
Connection Type
Screw Clamp
Terminal Type
Screw Terminals
Tightening Torque
0.9 N·m
Wire Stripping Length
8 mm
Connecting Capacity UL/CSA
1x 18...14 AWG | 2x 18...14 AWG
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Terminals IP20
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CB Certificate
CB Certificate, Pilot devices, Compact C
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Pilot Devices - C
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 10 piece
Package Level 1 Width
0.05 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.125 m
Package Level 1 Gross Weight
0.214 kg
Package Level 1 EAN
7320500401262
Object Classification Code
P
ETIM 6
EC001026 - Acoustic indicator
ETIM 7
EC001026 - Acoustic indicator
ETIM 8
EC001026 - Acoustic indicator
eClass
V11.0 : 27371214
UNSPSC
46171607
IDEA Granular Category Code (IGCC)
7389 >> Buzzers
E-Number (Finland)
2313699
E-Number (Sweden)
3705039
Feature → Business Impact → Application: The CB1-610Y Buzzer combines pulsating sound with pulsating light to deliver simultaneous audible and visual alerts, reducing operator reaction time and improving safety on busy lines. This directly translates to measurable efficiency gains in shift handovers and line changeovers, while enabling clearer status signaling on control panels across manufacturing cells. Feature → Application → Benefit: 24 V AC/DC operation provides flexible power compatibility with common automation cabinets, eliminating extra power supply modules and lowering total cost of ownership in new installations or retrofits. Feature → Compatibility → Installation: Screw clamp connections with 0.9 N·m tightening torque and a wire stripping length of 8 mm streamline field wiring, shortening commissioning time and reducing labor costs during installation. Feature → Compliance → Risk: Front protection IP66/IP67/IP69K ensures reliable operation in dusty or washdown environments, supporting CE/UL/CSA and RoHS compliance and lowering risk of non-conformance in regulated industries. Feature → Durability → Service life: Compact range integration enables easy replacement and stocking alongside other ABB pilot devices, improving maintenance planning and spare-part availability for long-term uptime. Feature → Environment → Operations: Ambient operating range of -25 to +70 °C enables operation across diverse production environments, from cold warehousing to high-temperature manufacturing floors, ensuring consistent signaling performance.
Get a Quick Quote for a ABB 1SFA619600R6103
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619600R6103?
Enquire Now
FAQs
Begin by ensuring power is de-energized. Prepare wires with an 8 mm stripping length, insert into the screw clamp terminals, and tighten to 0.9 N·m. Mount the device on a front panel per IP66/IP67/IP69K exposure requirements, then verify operation with a test pulse. This method minimizes commissioning time and ensures secure, vibration-resistant connections for reliable signaling.
The CB1-610Y operates on 24 V AC/DC with an 80 dB sound output. It features a pulsating sound with pulsating light to maximize visibility and audibility in noisy environments. The device supports flexible conductor configurations via screw terminals and clamps, simplifying integration into existing control circuits without additional power modules.
Yes. The front of the buzzer is rated IP66/IP67/IP69K, suitable for washdown and dusty environments, while terminals remain IP20. It complies with CE, UKCA, and UL/CSA declarations, and aligns with RoHS and REACH requirements, helping you meet regulatory and safety obligations in industrial settings.
Applications include machine status indication, alarm signaling, and process alerting on control panels and enclosures. The compact form factor simplifies retrofits and panel redesigns, while integration with existing pilot-device ecosystems reduces wiring complexity and stocking needs, delivering faster commissioning and improved uptime in conveyor lines and packaging machinery.
maintenance is simplified by the device’s plug‑and‑play wiring and standardized screw terminals, enabling quick replacements. Compliance is ensured through CE/UL/CSA/UKCA declarations and RoHS, REACH, and TSCA alignments. The result is lower total cost of ownership, faster maintenance cycles, and improved operator safety—leading to a favorable return on investment in lifecycle management.
