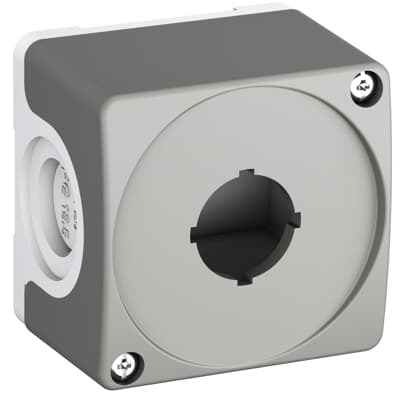

ABB 1SFA619811R1000 CEP1 Enclosure - IP66/IP69K
Part Number: 1SFA619811R1000
Quick Summary
CEP1 Enclosure by ABB protects pilot device assemblies in compact control panels and machine stop circuits. In harsh industrial environments, moisture, dust and temperature fluctuations threaten reliability and uptime, making enclosure integrity critical. This enclosure delivers robust protection with front IP66, IP67 and IP69K ratings, along with NEMA Type1, Type12, Type13, Type3R, Type4 and Type4X compatibility. CE, UKCA, CB and cURus certifications support global compliance across manufacturing sites. Built for CP device ecosystems, it also aligns with CP1 through CP6 families, enabling faster installation and simplified maintenance. The combination of rugged plastic housing and wide ambient tolerance reduces field-service costs while improving traceability and safety documentation for audits.
Product Information
Extended Description
1SFA619811R1000 ABB: Enclosure for Compact Machine Stop - Dark grey/Light grey
Minimum Order Quantity
1 piece
Customs Tariff Number
85369001
Product Main Type
CEP1
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
0.065 m
Product Net Depth / Length
0.048 m
Product Net Height
0.065 m
Product Net Weight
0.08 kg
Accessory Type
Enclosure
Color
Dark grey/Light grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Housing Material
Plastic
Suitable For
CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CPM3 | CL | CL2 | CB1 | CP6
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Housing IP69K | Housing IP66 | Housing IP67
Material
Plastic
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
CB Certificate
CB Certificate, Pilot devices, Compact C
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.048 m
Package Level 1 Gross Weight
0.08 kg
Package Level 1 EAN
7320500318041
eClass
V11.0 : 27371205
E-Number (Finland)
2312177
E-Number (Norway)
4373369
E-Number (Sweden)
3711600
ETIM 6
EC000200 - Enclosure for control circuit devices
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
Object Classification Code
S
UNSPSC
39121326
Feature: Robust IP and NEMA protection; Business Impact: Keeps sensitive pilot devices safe from dust, water ingress and harsh washdown environments; Application: Ideal for CP1-CP6 control panels in manufacturing lines. Feature: Lightweight plastic housing; Business Impact: Easier handling during installation and reduced panel weight, lowering overall lifecycle costs; Application: Suitable for standardized modular enclosures. Feature: Wide ambient temperature range; Business Impact: Maintains performance from -25 to +70 °C, decreasing failure rates in fluctuating environments; Application: Outdoor or non-climate-controlled facilities. Feature: Comprehensive CP compatibility; Business Impact: Accelerates engineering cycles and reduces spare part variety; Application: Seamless integration with CP1 CP2 CP3 CP4 CP11 CP12 CP33 families. Feature: Certifications and compliance package; Business Impact: Supports global procurement and audit readiness, minimizing compliance risk; Application: Multinational deployments with RoHS REACH TSCA and CE UKCA labeling. Feature: Dimensional efficiency and mounting flexibility; Business Impact: Enables compact footprint in panel layouts, saving enclosure space and improving cable routing; Application: Tight panel environments and retrofit projects.
Get a Quick Quote for a ABB 1SFA619811R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619811R1000?
Enquire Now
FAQs
Proper installation starts with selecting the CP1-compatible enclosure and verifying the mounting pattern matches your control panel. Use sealed mounting hardware to maintain IP66/IP69K integrity, route cables with strain relief, and follow ABB safety instructions. The CEP1 enclosure is designed for straightforward snap-in integration with CP modules, minimizing field wiring and enabling fast commissioning.
The CEP1 enclosure offers front IP66, IP67 and IP69K protection and housing IP69K/IP66/IP67 protection, plus NEMA Type1, Type12, Type13, Type3R, Type4 and Type4X compatibility. It carries CE and UKCA declarations, as well as CB and cURus certificates, supporting global product compliance and safe operation across diverse regulatory environments.
Yes. The CEP1 enclosure is specified as suitable for CP1, CP2, CP3, CP4, CP11, CP12, CP33, CPM3, CL, CL2, CB1 and CP6 pilot devices, ensuring a cohesive ecosystem for control circuits. This compatibility reduces engineering time, simplifies spares management, and enables consistent protection performance across the CP family.
Key dimensions are a compact footprint with Product Net Width 0.065 m, Net Depth 0.048 m, and Net Height 0.065 m, with a net weight of 0.08 kg. The enclosure supports a compact mounting footprint and can accommodate CP modules within the CP series. Consider panel cutouts, gasket integrity, and proper mating with CP devices to preserve ingress protection and ease of maintenance.
Using the CEP1 enclosure reduces field-service downtime due to proven IP65+ ingress protection and robust EN/NEMA compatibility, which minimizes water ingress and dust exposure. The lightweight plastic housing lowers installation effort and panel weight, while CE/UKCA and RoHS/REACH compliance streamline procurement and audits, contributing to lower lifecycle costs and improved total cost of ownership.
