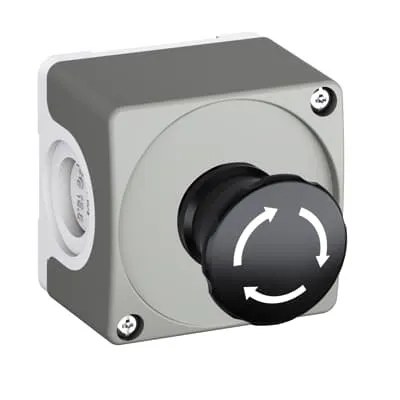

ABB 1SFA619811R1001 Enclosure - IP66/IP67/IP69K

The CEP1-1001 assembled enclosure includes a 40 mm machine-stop with twist release and 1NO+1NC contacts. This feature set reduces wiring complexity and saves panel space while delivering a reliable safety interface for start/stop circuits. It is well suited for emergency-stop circuits on compact automation lines and pilot-device integration. With CAD dimensional drawing support, engineers can drop this enclosure into their layouts quickly and accurately. protections begin with a front rating of IP66, IP67, and IP69K and housing protection IP69K/IP66/IP67, ensuring the enclosure withstands washdown, dust, and rugged plant conditions. Terminals are rated IP20, providing safe, controlled electrical access in factory environments. This rugged protection supports ongoing uptime in manufacturing and process industries, even under high-pressure washdown and temperature cycling. Constructed from durable plastic in dark/light grey, the enclosure weighs 0.105 kg and measures 0.065 m wide and 0.065 m deep, with a height of 0.048 m. The light weight and compact form simplify handling during installation and service, while maintaining enclosure strength for duty in tight spaces. Its compact footprint and modular design help minimize cabinet intrusion and simplify retrofit projects on older lines. Operating voltage spans 24 to 300 V, and the unit includes one NO and one NC auxiliary contact for straightforward control circuit wiring and safety interlock configurations. The combination supports a wide range of PLC and pilot-device wiring without external adapters, improving time-to-commission. This flexibility reduces panel size, wiring time, and lifecycle cost while ensuring reliable interlock operation. Certified to CE and UKCA marks, plus CB, CQC, and cURus certifications, with REACH, RoHS, and SCIP declarations, the CEP1-1001 meets multiple global compliance requirements. The broad standard support enables multi-region deployments with simplified procurement and fewer certs to chase. In applications ranging from machine safety interlocks to control-box miniaturization, this enclosure delivers consistent performance and regulatory confidence.
