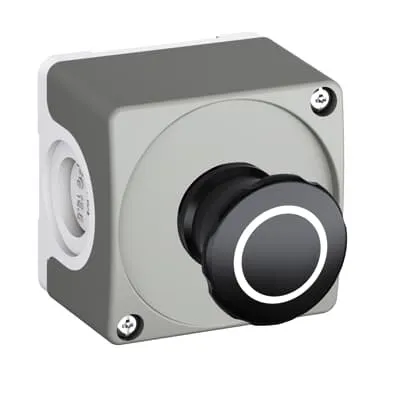

ABB 1SFA619811R1002 Enclosure for CEP1 - Front IP69K
Part Number: 1SFA619811R1002
Quick Summary
ABB 1SFA619811R1002 Enclosure is a rugged pilot-device enclosure for control panels in harsh industrial environments. Engineers often confront limited space, unreliable seals, and wiring complexity that slow deployment and increase risk. This enclosure carries CE, UKCA, and RoHS declarations with front IP66/IP67/IP69K protection and IP69K housing, ensuring global compliance and safe operation. Its lightweight plastic housing, 24-300 V operating range, and 1NO+1NC auxiliary contacts help reduce installation time while enabling scalable automation across multiple environments and applications.
Product Information
Extended Description
1SFA619811R1002 ABB: Assembled Enclosure - 40mm Machine Stop - Pull Release - 1NO+1NC - Horisontally mounted
Minimum Order Quantity
1 piece
Customs Tariff Number
85369001
Product Main Type
CEP1
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
0.065 m
Product Net Depth / Length
0.079 m
Product Net Height
0.065 m
Product Net Weight
0.105 kg
Accessory Type
Enclosure
Color
Dark grey/Light grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Housing Material
Plastic
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Rated Operational Voltage
24 ... 300 V
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Housing IP69K | Housing IP66 | Housing IP67 | Terminals IP20
Material
Plastic
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
90fb590e-b72b-4be8-a9ba-32eefe771819 Sweden (SE)
Simplified SCIP
0c0e028a-516b-478e-a8e7-9011f89f7c9f Germany (DE) | c57a9831-3dd1-4ac1-a655-689aef3fd673 Netherlands (NL) | 2a533a0a-2b35-48a8-85f0-4bf88a5c4344 Hungary (HU) | be936462-590a-439c-93d1-6b0e2de07d51 Estonia (EE) | 31bb206c-01ff-452b-b567-037112b6193b Denmark (DK) | 14e7b4e4-ec55-4669-803d-e3054f1b0e12 Croatia (HR) | 9c71a3cc-0245-41d9-bdf6-85e0d38e7eca Czech Republic (CZ) | 4d61c292-12b1-442e-b05e-cc27027298d2 Germany (DE) | 11651ba9-f635-43fa-a0d3-c04ce1690156 Italy (IT) | 284406df-ccfb-4d47-9347-0036cb258a65 Germany (DE) | f933b2dd-ebf7-4afd-9c8d-f49b90292e36 Belgium (BE) | eb2667c5-39ae-4f94-9c32-d352ed5c051a Finland (FI) | 3bcedcc2-cfbf-4bb1-8759-2d49815e40fd Norway (NO) | d5b5382e-f58e-4edd-be85-f6deef15fbaf Poland (PL) | 84517c2a-3a5c-4081-a177-c4815aa545c4 Poland (PL) | e91a9e8d-1a79-4652-9f37-febc788fcbc9 Sweden (SE) | d1a44cd9-cdbb-45b4-85ee-8fed30fe7a52 France (FR) | 4c1ac05f-3284-4d21-8790-71efc86b5999 Germany (DE) | 9f92468a-3294-48cd-9234-b8a6b74bf11c Belgium (BE) | b075318c-8f6e-430c-91e3-12a339dbdaec France (FR) | 8f2d981d-cacf-419b-8e19-1a847ceeb51d Germany (DE) | 0f13966f-207a-4d9c-843f-405451d8c07d Hungary (HU) | 12d8b2b3-0025-40ab-8753-23b310242922 Spain (ES) | 708c1ef4-6cd1-4729-8893-b40a59d10401 Poland (PL) | 9f48e4c1-5819-460a-8f66-445972fe3d18 Bulgaria (BG) | ce0930a1-712f-4a05-b95c-11ed9180f56e Portugal (PT) | 1e9108c9-aa54-42b7-b1ca-3fcc9d64754f Greece (GR)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CEP, MEP
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.048 m
Package Level 1 Gross Weight
0.134 kg
Package Level 1 EAN
7320500358177
eClass
V11.0 : 27371216
E-Number (Finland)
2312186
E-Number (Norway)
4373378
E-Number (Sweden)
3705520
ETIM 6
EC000225 - Control circuit devices combination in enclosure
ETIM 7
EC000225 - Control circuit devices combination in enclosure
ETIM 8
EC000225 - Control circuit devices combination in enclosure
ETIM 9
EC000225 - Control circuit devices combination in enclosure
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
Object Classification Code
S
UNSPSC
39121326
Feature: Compact, assembled CEP1 enclosure with 40mm machine stop and pull-release action. Business Impact: Improves operator safety and interlock reliability, reducing downtime and maintenance needs in line-start and shut-off sequences. Application: Ideal for press lines and machine-stop control points in automated panels. Feature: 24-300 V rated operation with 1NO+1NC auxiliary contacts. Business Impact: Supports common automation architectures while providing clear feedback for safe interlock circuits, lowering wiring complexity and integration time. Application: Pilot-device circuits in ABB CEP1 configurations and other control panels. Feature: Front protection IP66/IP67/IP69K and housing IP69K/IP66/IP67. Business Impact: Delivers rugged ingress protection for washdown, high-pressure cleaning, and challenging environments, reducing field failure rates. Application: Food & beverage, automotive, and chemical processing facilities where rigorous cleanliness matters. Feature: Horizontal mounting and lightweight plastic construction (0.105 kg). Business Impact: Simplifies installation in tight spaces and enables flexible positioning in compact cabinets, lowering installation labor costs. Application: Small control panels and pilot-device enclosures in retrofit projects. Feature: Broad compatibility and availability of CAD data and technical documentation. Business Impact: Accelerates design validation and enables precise fitment with 2D/3D CAD systems, reducing engineering rework. Application: Room-and-panel planning for CEP1 pilot devices and related automation components. Feature: Global compliance footprint (CE, UKCA, RoHS, REACH, CMRT, TSCA) and multiple certificates. Business Impact: Supports cross-border deployments and supplier transparency, mitigating regulatory risk and enabling faster time-to-market. Application: Enterprises with multi-region deployments needing standardization and traceability.
Get a Quick Quote for a ABB 1SFA619811R1002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619811R1002?
Enquire Now
FAQs
This enclosure supports horizontal mounting for CEP1 pilot devices, uses a 40 mm machine-stop with pull-release for quick operation, and accepts 24-300 V control voltages. Refer to Data Sheet 1SFC151007C0201 for detailed mounting dimensions, terminal access (IP20), and wiring diagrams to ensure proper integration into existing control panels.
Key specs include rated operational voltage from 24 to 300 V, 1 NO and 1 NC auxiliary contacts, and a compact footprint (0.065 m W x 0.079 m D x 0.065 m H) with net weight 0.105 kg. It is designed for horizontal mounting and offers robust mechanical protection suitable for automation stop circuits.
Yes. It provides front protection IP66/IP67/IP69K and housing IP69K/IP66/IP67, with operation from -25 to +70 °C and storage up to -40 to +85 °C. It supports altitudes up to 2000 m without derating, making it suitable for harsh indoor environments and demanding industrial locations.
The enclosure carries CE and UKCA declarations, RoHS and REACH compliance, CB, EAC, CCC declarations, CMRT, TSCA, and multiple country-specific SCIP entries. Additional approvals include DNV GL and EAC certificates, reinforcing its global suitability for regulated industries.
The unit’s lightweight plastic housing simplifies installation and reduces labor costs, while its robust IP66/IP69K protection lowers maintenance and downtime from washdowns and contamination. Global certifications reduce regulatory hurdles for multi-region deployments, supporting faster time-to-value and long-term reliability in automation projects.
