ABB 1SFA619811R2002 Enclosure - CEP1 - IP69K/NEMA Type4X
Part Number: 1SFA619811R2002
Quick Summary
ABB CEP1 Enclosure protects control stations in harsh environments by housing a 1NO+1NC pushbutton assembly. Engineers face moisture ingress, dust, and downtime when enclosures fail in the field. The unit carries CE and UKCA marks, plus RoHS and REACH compliance, supporting global deployment. As a robust enclosure for pilot devices and emergency stops, it simplifies installation, improves uptime, and reduces service costs across automation projects. The design supports horizontal mounting, 40 mm machine stop, pull-release actuator, and 1NO+1NC contacts. This combination delivers a compact footprint and dependable performance in inline control panels across manufacturing lines. Engineers can reference available CAD data and datasheets during design and installation.
Product Information
Extended Description

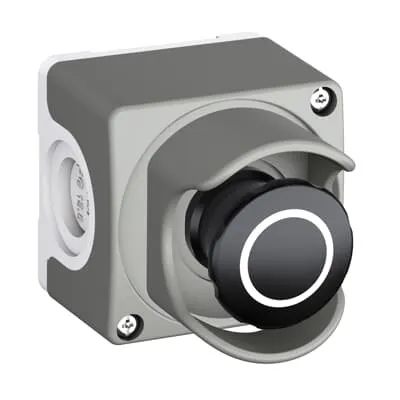

1SFA619811R2002 ABB: Assembled Enclosure with Shroud - 40mm Machine Stop - Pull Release - 1NO+1NC - Horisontally mounted
Minimum Order Quantity
1 piece
Customs Tariff Number
85369001
Product Main Type
CEP1
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
0.065 m
Product Net Depth / Length
0.08 m
Product Net Height
0.065 m
Product Net Weight
0.124 kg
Accessory Type
Enclosure
Color
Dark grey/Light grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Housing Material
Plastic
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Rated Operational Voltage
24 ... 300 V
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Housing IP69K | Housing IP66 | Housing IP67 | Terminals IP20
Material
Plastic
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
de9d6509-9688-4e53-9913-2b70cdc9ee08 Sweden (SE)
Simplified SCIP
29a3cec9-c290-4a1f-b1b3-1bb5a3174ea2 Germany (DE) | ad0a756f-1853-4f84-a9d2-658c70afb8ad Poland (PL) | bada1e01-6b21-47fb-95d6-041f135fab9e Czech Republic (CZ) | 8efaff6e-8e1a-4710-bad5-ee628ef478e4 Estonia (EE) | 0f41eddf-e4fe-4ecb-a327-2f43a452e19e Netherlands (NL) | 8f36b335-44c4-4b8d-b361-f290959a1d6b Hungary (HU) | c4dc1e78-9bd1-40f7-bd1a-e8436d4cbd9f Greece (GR) | e00c7f66-2bb1-43e0-9b67-6851caf0e7da Portugal (PT) | a5e06ac4-cdf9-4f90-9607-c09ad1f384e5 Bulgaria (BG) | c7c0a8db-229a-428e-b245-c08f80025526 Spain (ES) | c6f7d987-553a-405d-9a26-fc53c4ee7018 France (FR) | b59ca836-ddbf-4f2a-a59f-467ae6cd35e9 Hungary (HU) | dd808587-b0bc-4c0c-8d83-86874415328c Belgium (BE) | aa6db29b-7c1f-460a-a095-609779712f73 Poland (PL) | 40431c58-d9df-4f2d-82d6-ec154ef6c8da Sweden (SE) | ff253bdf-cd94-4abf-a32d-da5196b6a51e France (FR) | 74359f91-7ae6-4386-ac6e-25a143515e4d Germany (DE) | 488b0f21-83dd-4640-87a2-c8d2029a7828 Germany (DE) | 6642f4bd-7cc3-4655-844f-53fc1e745c8a Norway (NO) | 4f42f498-7034-4094-9023-bbeb03983b59 Poland (PL) | 8fe3557b-f0fc-4bb1-ac9b-ba80c8aa35d0 Germany (DE) | 651a463e-6aff-44f7-b01e-328954b7b00f Belgium (BE) | b15ebbef-c5e5-4569-950f-ad2c88114dfb Finland (FI) | af4a4e39-36c9-4392-9fe1-0507aea7690b Italy (IT) | c5a9e338-3df3-4ac8-a745-da4705c0b52f Croatia (HR) | 3461565f-f898-43c4-ac32-6b3bb3dc60d9 Germany (DE) | d1c3e88f-cc4a-4e3b-b5c4-90772eb21fb0 Denmark (DK)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CEP, MEP
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.048 m
Package Level 1 Gross Weight
0.154 kg
Package Level 1 EAN
7320500358153
eClass
V11.0 : 27371216
E-Number (Finland)
2312188
E-Number (Norway)
4373380
E-Number (Sweden)
3705522
ETIM 6
EC000225 - Control circuit devices combination in enclosure
ETIM 7
EC000225 - Control circuit devices combination in enclosure
ETIM 8
EC000225 - Control circuit devices combination in enclosure
ETIM 9
EC000225 - Control circuit devices combination in enclosure
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
Object Classification Code
S
UNSPSC
39121326
The CEP1 enclosure combines a compact plastic housing with a shroud and a 1NO+1NC configuration to protect pilot devices, reducing the risk of miswiring and environmental exposure. This feature translates into faster wiring, fewer field faults, and lower maintenance costs in control panels for automation projects. The front protection rating of IP66/IP67/IP69K and housing IP69K/IP66/IP67 enables reliable washdown and rugged service in manufacturing environments, delivering tangible uptime improvements and lower lifecycle costs. Rated operational voltage of 24–300 V supports diverse control circuits, while the wide ambient operating range of -25 to +70 °C (storage -40 to +85 °C) ensures performance in both temperature extremes and ambient conditions. The enclosure’s compact footprint (0.065 m W x 0.08 m D x 0.065 m H) and light 0.124 kg weight simplify installation and reduce panel space requirements. Compliance with CE, UKCA, RoHS, REACH, and EAC demonstrates global readiness, minimizing regulatory risk for multi-region deployments. The design includes horizontal mounting, a 40 mm machine-stop lever, and a pull-release actuator, delivering reliable operation with easy maintenance and swap-out of components in pilot-device panels.
Get a Quick Quote for a ABB 1SFA619811R2002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619811R2002?
Enquire Now
FAQs
The CEP1 enclosure is designed to house a 1NO+1NC pilot-device assembly and supports horizontal mounting. It accommodates a 40 mm machine-stop mechanism and pull-release actuator, enabling straightforward integration with ABB CEP1 pilot devices. Installation is simplified by compact dimensions and a front-access design, which reduces panel depth and wiring complexity while maintaining alignment with standard control-panels.
This enclosure delivers front IP66/IP67/IP69K protection and housing IP69K/IP66/IP67 protection, making it suitable for washdown and rugged environments. It supports a wide operating voltage range of 24 to 300 V and operates reliably from -25 to +70 °C (storage -40 to +85 °C). These ratings help ensure long-term reliability in manufacturing floors, food & beverage, and chemical processing facilities.
Yes. The CEP1 enclosure is designed for 1NO+1NC pushbuttons and is specified for harsh environments thanks to its IP ratings and robust plastic housing. Its compact form factor reduces panel footprint, while IP69K and NEMA compatibility provide reliable protection during frequent washdowns and exposure to dust, ensuring safe and compliant emergency-stop circuits.
The CEP1 enclosure includes CE and UKCA declarations, RoHS and REACH compliance, and EAC/CCC-related declarations, supporting global deployment. Additional certifications such as CB, DNV GL, and other regional declarations are listed in the data, which helps align with supplier qualification programs and regulatory requirements across regions.
Industrial teams can access CAD drawings (2D and 3D) and datasheets referenced in the product listings to support design, enclosure selection, and panel wiring. The data sheet 1SFC151007C0201 and installation instructions provide guidance for safe assembly, wiring diagrams, and compliance considerations, speeding up project delivery and reducing commissioning time.
