ABB 1SFA619821R1000 Enclosure - IP69K Certified
Part Number: 1SFA619821R1000
Quick Summary
The ABB 1SFA619821R1000 Enclosure protects compact emergency-stop assemblies in harsh industrial environments, safeguarding control devices. Operators struggle with weatherproofing and exposure that disrupt uptime and raise maintenance costs. It provides IP66/IP67/IP69K protection, CE and UKCA conformity, and robust cURus and DNV GL attestations for global compliance. Designed for CP-series pilot devices and other control-circuit hardware, it streamlines installation and regulatory compliance. With a yellow/light grey plastic housing, it resists washdowns while supporting reliable, long-term performance. The enclosure’s compact footprint helps optimize panel design, reducing space needs and enabling faster, safer retrofits for diverse industrial applications.
Product Information
Extended Description

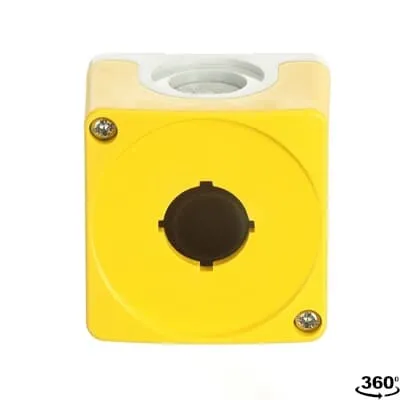

1SFA619821R1000 ABB: Enclosure for Compact Emergency Stop - Yellow/Light grey
Minimum Order Quantity
1 piece
Customs Tariff Number
85369001
Product Main Type
CEPY1
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
0.065 m
Product Net Depth / Length
0.048 m
Product Net Height
0.065 m
Product Net Weight
0.08 kg
Accessory Type
Enclosure
Color
Yellow/Light grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Housing Material
Plastic
Suitable For
CP1 | CP2 | CP3 | CP4 | CP11 | CP12 | CP33 | C2SS1 | C2SS2 | C2SS3 | CE3T | CE3P | CE3K1 | CE4T | CE4P | CE4K1 | CPM3 | CL | CL2 | CB1 | CP6
Suitable for Product Class
Pilot Devices
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Degree of Protection
Housing IP66 | Housing IP67 | Housing IP69K
Material
Plastic
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Pilot Devices
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.078 m
Package Level 1 Gross Weight
0.1 kg
Package Level 1 EAN
7320500318058
eClass
V11.0 : 27371205
E-Number (Finland)
2312178
E-Number (Norway)
4373370
E-Number (Sweden)
3711605
ETIM 6
EC000200 - Enclosure for control circuit devices
ETIM 7
EC000200 - Enclosure for control circuit devices
ETIM 8
EC000200 - Enclosure for control circuit devices
ETIM 9
EC000200 - Enclosure for control circuit devices
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
Object Classification Code
S
UNSPSC
39121326
Feature → Business Impact → Application: The enclosure is molded in durable plastic and offers IP66, IP67 and IP69K protection, which translates to reliable washdown resistance and longer service intervals in harsh facilities such as food processing or automotive plants. This minimizes maintenance downtime and lowers total cost of ownership while ensuring consistent pilot-device operation in demanding environments. Feature → Application compatibility → CP-series devices: It is suitable for CP1 to CP12, CP33, CB1, CP6 and related pilot devices, simplifying inventory and accelerating installation across multi-line lines and retrofits. Feature → Compliance and risk reduction → CE, UKCA, cURus, DNV GL declarations, REACH and RoHS compliance reduce procurement risk and expedite international sourcing, enabling a smoother supply chain. Feature → Dimensions and weight → Space-saving installation: With net dimensions of 0.065 m W, 0.048 m D, and 0.065 m H, plus a light 0.08 kg weight, it fits compact control panels and tight enclosures, improving panel density and reducing front-mail interference. Feature → CAD and installation support → Engineering-grade CAD drawings and installation instructions streamline mounting, reduce setup time, and enable accurate integration with CP-series and similar control-circuit devices.
Get a Quick Quote for a ABB 1SFA619821R1000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619821R1000?
Enquire Now
FAQs
The enclosure is designed to be compatible with CP1 through CP12, including CP6, CP33, CB1 and related CP-series pilot devices. It also accommodates other control-circuit devices in the same family. For ease of design and integration, CAD drawings are available, and the 1 piece minimum order keeps procurement simple for both new installs and retrofits.
It provides high-level protection with IP66, IP67 and IP69K ratings, enabling reliable washdown and ingress resistance. Operating temperature ranges from -25 to +70 °C, while storage can endure -40 to +85 °C. The housing is plastic, light in weight, and designed for harsh industrial environments where pilot devices demand robust enclosure protection.
Key certifications include CE and UKCA conformity, a cURus certificate, DNV GL certification, and RoHS/REACH compliance. These declarations support global supply chains and risk reduction in multinational procurement, while ETIM and eClass classifications help with standardized parts catalogs and purchasing workflows.
With a compact footprint (0.065 m W x 0.048 m D x 0.065 m H) and a lightweight 0.08 kg, the enclosure minimizes panel real estate and simplifies mounting. Availability of CAD data accelerates integration, enabling faster commissioning and easier maintenance, which translates to reduced downtime and lower labor costs during both initial installation and future upgrades.
Datasheets and CAD files for the ABB 1SFA619821R1000 Enclosure are provided in the product downloads section, including 2D and 3D CAD files, safety and installation instructions, and the data sheet. This enables precise modeling, accurate BOMs, and streamlined integration with CP-series and other compatible pilot devices.
