ABB 1SFA619821R1001 Enclosure - IP69K Front/IP66 Housing
Part Number: 1SFA619821R1001
Quick Summary
ABB 1SFA619821R1001 Enclosure protects control circuits in harsh industrial environments for safe, mounted emergency stop devices. Directly addressing field technicians' need for rugged, compliant enclosures that withstand wash-down, dust, and voltage variability. CE and UKCA declarations, RoHS compliance, plus IP69K front protection and IP66/IP67 housing ensure safety, regulatory alignment, and durable operation. In practice, this enclosure supports pilot devices, 24–300 V systems, and 2NC auxiliary contacts for reliable, expandable control panels. The enclosure’s plastic housing reduces weight without compromising impact resistance, lowering shipping and installation costs. Designed for horizontal mounting and easy twist-release access, it accelerates commissioning in new builds and retrofits.
Product Information
Extended Description

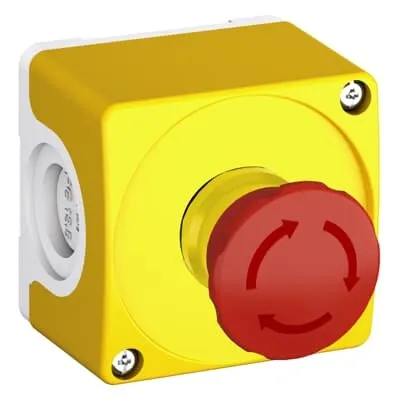

1SFA619821R1001 ABB: Assembled Enclosure - 40mm Mushroom Emergency Stop - Twist Release - 2NC - Horisontally mounted
Minimum Order Quantity
1 piece
Customs Tariff Number
85369001
Product Main Type
CEPY1
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
0.065 m
Product Net Depth / Length
0.079 m
Product Net Height
0.065 m
Product Net Weight
0.105 kg
Accessory Type
Enclosure
Color
Yellow/Light grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Housing Material
Plastic
Number of Auxiliary Contacts NC
2
Rated Operational Voltage
24 ... 300 V
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Housing IP69K | Housing IP66 | Housing IP67 | Terminals IP20
Material
Plastic
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
15305cb8-64f0-4aab-8bd7-19603466d43b Sweden (SE)
Simplified SCIP
217a42d7-ce39-4183-b0b7-dce1d0ec05ad Germany (DE) | 6e55909a-bff3-4c94-9204-4b1077a26b4a Poland (PL) | 7d422d7e-6d6b-44a0-8e19-f61d3f90599d Czech Republic (CZ) | 6d056065-2239-459f-a7bc-64eaa9c0fcaa Estonia (EE) | c42a3000-a895-4baf-8e1b-ba7faf4126e5 Netherlands (NL) | 8c55242a-aa12-4bf8-95f6-a29b5849af6f Hungary (HU) | fedf4436-1c4a-4ac0-ae4d-e9bd9729182b Greece (GR) | a71cc46e-d091-4159-9c7b-3fdbcdc2ccfc Portugal (PT) | 83e25ec7-7fc2-4172-a9ac-f82db26143c8 Bulgaria (BG) | d00876d6-7b8f-47bf-933e-e90320a8b763 Sweden (SE) | b871e057-9db4-41a4-a106-c2856c45f9b3 Poland (PL) | 7b5555e0-adcb-42f6-b8c8-e11bab76de45 Belgium (BE) | 591667c7-e49d-4e38-ac83-39b16d15824c Germany (DE) | a393a393-1c9a-4f54-9ca2-42551302e820 France (FR) | 6780b6cf-d89a-4a20-93c9-0f98d1dfd13a Hungary (HU) | b28595ee-8963-4266-8787-d7bdb16ec6ae Spain (ES) | a8dd6f70-fa3d-42ed-83a9-0550119dd949 France (FR) | 68217dec-d736-48ce-9935-3df46e8d78cc Germany (DE) | cea2cdcf-74cd-4332-89c7-ceac950dd27a Finland (FI) | 38fb89c7-a690-4e2a-9e34-5d2fc1720a9d Italy (IT) | 31b8751c-ea17-4e4a-8c30-7e5e0b21e86e Germany (DE) | 94c53e66-ee3f-472d-b8a1-7a8be7b67aab Poland (PL) | ead31c56-2bb5-4b02-9d05-319d8f0d7511 Norway (NO) | 45f551db-a259-48cb-b6b7-dae953c2b2d1 Germany (DE) | 702792b1-db95-405c-8a64-dca282192c38 Croatia (HR) | 32e5fa22-f680-4498-a8cc-320dc3d5a211 Denmark (DK) | 71dd450b-8e89-4f74-b8ff-c8e09acf5e42 Belgium (BE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.078 m
Package Level 1 Gross Weight
0.138 kg
Package Level 1 EAN
7320500358108
eClass
V11.0 : 27371216
E-Number (Finland)
2312181
E-Number (Norway)
4373373
E-Number (Sweden)
3711610
ETIM 6
EC000225 - Control circuit devices combination in enclosure
ETIM 7
EC000225 - Control circuit devices combination in enclosure
ETIM 8
EC000225 - Control circuit devices combination in enclosure
ETIM 9
EC000225 - Control circuit devices combination in enclosure
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
Object Classification Code
S
UNSPSC
39121326
Feature → Business Impact → Application: Assembled Enclosure with a 40mm mushroom emergency stop featuring twist-release and 2NC contacts reduces wiring complexity and panel footprint, enabling faster commissioning and standardization across machines. The 24–300 V operation range supports diverse control architectures, delivering compatibility across equipment across multiple lines and regions. Application: ideal for machine builders and maintenance teams seeking reliable, plug-and-play pilot-device enclosures in automation panels. Feature → Business Impact → Application: Front IP69K protection with IP66/IP69K housing and IP20 terminal protection delivers robust ingress protection in wash-down zones and dusty environments, reducing field failures and service calls. Application: suitable for conveyors, robotics, and packaging lines where frequent cleaning occurs. Feature → Business Impact → Application: Type 1–4X NEMA compatibility plus lightweight plastic housing keeps weight low for handling and reduces shipping costs, while maintaining durability. Application: cost-effective upgrades to legacy panels and new installations requiring regulatory alignment. Feature → Business Impact → Application: Horizontal mounting and twist-release access speed deployment and maintenance, enabling rapid reconfiguration and scalable pilot-device integration. Application: retrofit projects and panel refurbishments where downtime must be minimized.
Get a Quick Quote for a ABB 1SFA619821R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619821R1001?
Enquire Now
FAQs
This enclosure is designed for horizontal mounting and houses a 40 mm mushroom emergency stop with twist-release. It enables straightforward integration into control panels and panel tops, reducing installation time and allowing quick changes to pilot-device configurations as process requirements evolve.
The unit features front IP69K protection with IP66/IP69K front and IP66/IP67/IP69K housing, plus IP20 terminal protection. It is built for operational environments from -25 to +70 C and up to 2000 m altitude without derating, making it suitable for demanding wash-down and dusty settings.
Yes. The rated operational voltage spans 24 to 300 V, enabling use across a wide range of automation and control systems, including AC and DC applications typical in machine panels and emergency-stop circuits.
Key certifications include CE and UKCA declarations, RoHS compliance, REACH declaration, and CMRT for conflict minerals. Additional conformity covers CB, CCC, EAC, and DNV/GL attestations, ensuring regulatory readiness for global deployments.
Technical data is available in the data sheet 1SFC151007C0201, with installation instructions and CAD drawings (2D and 3D) for CAD systems. These resources facilitate accurate sizing, layout planning, and rapid integration of pilot devices into new or retrofit control panels.
