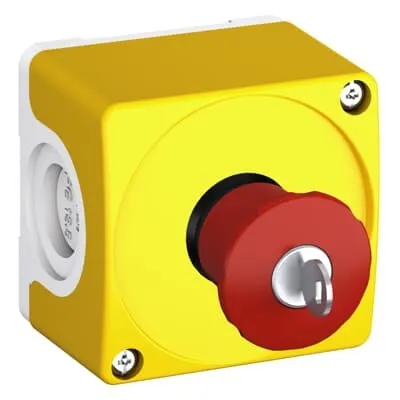

ABB 1SFA619821R1006 Enclosure - CEPY1 Emergency Stop, IP69K
Part Number: 1SFA619821R1006
Quick Summary
ABB 1SFA619821R1006 Enclosure is a rugged housing for 40mm mushroom emergency stops in industrial control panels. This design reduces wiring errors and speeds assembly in panel builds. CE and UKCA declarations, plus IP69K front and IP66/IP67/IP69K housing, ensure safety and washdown readiness. Designed for CEPY1 pilot devices and control panels, it delivers reliable installation, regulatory compliance, and long-term cost savings. Operating voltage coverage from 24 to 300 V supports diverse discrete and safety interlock applications. With integrated 1NO+1NC auxiliary contacts and screw terminals, installation is straightforward for electricians and panel builders. The enclosure withstands demanding environments up to +70 °C ambient and -40 °C storage, easing global deployment. Longer service life and reduced wiring faults translate to lower maintenance costs and less downtime.
Product Information
Extended Description
1SFA619821R1006 ABB: Assembled Enclosure - 40mm Mushroom Emergency Stop - Key Release - 1NO+1NC - Horisontally mounted- CE4K1-10R-11 included. Two 455 keys included
Minimum Order Quantity
1 piece
Customs Tariff Number
85369001
Product Main Type
CEPY1
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
0.065 m
Product Net Depth / Length
0.109 m
Product Net Height
0.065 m
Product Net Weight
0.168 kg
Accessory Type
Enclosure
Color
Yellow/Light grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Housing Material
Plastic
Number of Auxiliary Contacts NC
1
Number of Auxiliary Contacts NO
1
Rated Operational Voltage
24 ... 300 V
Terminal Type
Screw Terminals
Tightening Torque
0.8 N·m
Wire Stripping Length
8 mm
Pilot Duty UL/CSA
C300 | R300
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Housing IP69K | Housing IP66 | Housing IP67 | Terminals IP20
Material
Plastic
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
30d6dc3d-2e84-48d0-9638-9b16831c2b99 Sweden (SE)
Simplified SCIP
cd06db48-a75d-4348-8274-86dd8bf55626 Germany (DE) | d9b98395-2a69-4939-8bdf-641aa300944a Germany (DE) | c9e033f7-ffe6-4af7-8baa-1d935c3b73f6 France (FR) | b8948037-c60e-4c4b-9503-3787ae72914a Belgium (BE) | cef1fab6-ae77-4daf-96d0-7028eff5a1c4 Hungary (HU) | 83d82732-aee1-4757-8dbd-5cff9f00eea3 Spain (ES) | 17f748ca-a3bb-410e-84c4-fec868a8c7b0 France (FR) | 27da86a2-0688-46f4-a07c-b38b365f93f3 Germany (DE) | 265fde42-71d9-40f2-bde4-22fed247c62c Czech Republic (CZ) | 4b751846-1946-49f7-861b-7400563312ea Netherlands (NL) | c0570a9b-3828-45e2-b0d7-60e9e0c268bc Estonia (EE) | 43e33e8b-253b-40b6-a80e-afc81e1724f3 Poland (PL) | 70b7eab6-d128-436b-8d10-4b32d0ce2f6a Greece (GR) | 308bbb53-9ee4-4d76-974a-999367728d18 Hungary (HU) | c74f5859-cda5-4d95-975e-8c7937938ae2 Poland (PL) | 582d22fe-3295-4c7f-85c1-465baf37d42e Sweden (SE) | 563cdb0f-e21a-46ba-b726-213ee5159519 Bulgaria (BG) | b6090764-ee4f-44fc-a44b-4909044e5d14 Portugal (PT) | 2df61c0f-d46e-4df8-b3a2-5dcd27eaae0b Finland (FI) | d963d594-5c39-497c-819d-40ec65e4615b Italy (IT) | d193129a-b5db-4ea3-b718-0a9b75282a4a Poland (PL) | c74ac36f-0323-4d98-82d9-299124e8bc43 Norway (NO) | 71b4a31a-d83c-4a1f-88e1-6c469bb0be24 Croatia (HR) | 62061c69-0be6-493b-90ab-5515a46b25cd Germany (DE) | b0cbc862-aefb-49eb-b1c7-8dbf9daeae86 Germany (DE) | 699eb58d-914a-4673-bd59-88554bc885d5 Belgium (BE) | d87f8c3d-5ae2-4dd7-a1ea-d221e1ad8911 Denmark (DK)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.165 m
Package Level 1 Depth / Length
0.235 m
Package Level 1 Height
0.12 m
Package Level 1 Gross Weight
0.175 kg
Package Level 1 EAN
7320500383254
eClass
V11.0 : 27371216
E-Number (Sweden)
3705519
ETIM 6
EC000225 - Control circuit devices combination in enclosure
ETIM 7
EC000225 - Control circuit devices combination in enclosure
ETIM 8
EC000225 - Control circuit devices combination in enclosure
ETIM 9
EC000225 - Control circuit devices combination in enclosure
Object Classification Code
S
UNSPSC
39121326
Feature: Assembled Enclosure tailored for 40mm mushroom emergency stop devices with horizontal mounting and key release. Impact: Reduces field installation time and minimizes mis-wiring risk in panel builds. Application: Ideal for safety interlock stations and machine guards in packaging and material-handling lines. Feature: 1NO+1NC auxiliary contacts with screw terminals. Impact: Enables straightforward wiring, reliable signaling, and flexible safety circuits. Application: Used in control panels requiring simple stop/start interlocks and status signaling. Feature: IP69K front protection and IP69K/IP66/IP67 housing ratings. Impact: Delivers washdown-ready, dust-tight performance, lowering ingress-related maintenance. Application: Food & beverage, chemical processing, and pharmaceutical environments. Feature: NEMA Type 1, 12, 13, 3R, 4, 4X compatibility with plastic housing. Impact: Expands compatibility across global enclosures standards, reducing BOM complexity. Application: Global machine builders needing versatile enclosure types. Feature: Regulatory and environmental compliance package (CE, UKCA, RoHS, REACH, SCIP). Impact: Streamlines approvals and ensures continued market access across regions. Application: Procurement and design reviews in regulated industries. Feature: Lightweight, compact footprint with 0.065 m width/height and 0.109 m depth; weight 0.168 kg. Impact: Eases installation in space-constrained panels and reduces overall system weight. Application: Packaged equipment and compact safety enclosures in modern automation lines.
Get a Quick Quote for a ABB 1SFA619821R1006
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619821R1006?
Enquire Now
FAQs
When installing this ABB enclosure, ensure horizontal mounting for the CEPY1 emergency stop, use screw terminals with a tightening torque of 0.8 N·m, and accommodate the 8 mm wire stripping length. Plan for a 24–300 V operating range and verify ambient conditions meet -25 to +70 °C, with storage up to -40 to +85 °C to prevent performance loss.
Yes. The enclosure is designed to house CEPY1 emergency stop assemblies, featuring 1NO and 1NC auxiliary contacts and screw-terminal wiring, suitable for a wide range of control panel interlocks and safety circuits.
It carries CE and UKCA declarations and offers front protection IP66, IP67 and IP69K, plus housing IP69K/IP66/IP67, with terminals IP20. It also complies with RoHS and REACH, supporting global procurement and regulatory alignment.
Ideal for control panels in manufacturing lines, packaging, and material handling where harsh cleaning or washdown is common. It supports 40mm mushroom emergency stop devices, ensuring safe, compliant shutdowns in safety-critical workflows.
The IP69K washdown-ready design, lightweight plastic housing, and straightforward wiring reduce downtime and maintenance costs. The CE/UKCA compliance accelerates approvals, while the compact footprint enables more efficient space use in high-density control cabinets, improving overall project ROI.
