ABB 1SFA619821R2001 Enclosure - IP66/IP69K Certified
Part Number: 1SFA619821R2001
Quick Summary
ABB 1SFA619821R2001 Enclosure is a rugged housing designed for pilot devices and emergency stop assemblies in harsh industrial environments. Maintenance teams need reliable protection, simple wiring, and clear compliance in dusty, wet, or high-temperature plants. This enclosure delivers CE conformity and robust ingress protection, including Front IP66, IP67, and IP69K with housing IP69K/IP66/IP67, reducing risk and downtime. Rated operational voltage is 24 to 300 V with two auxiliary NC contacts, enabling compact, safe control circuits inside a durable plastic shell. With altitude capability up to 2000 m without derating, it fits global deployments while lowering total cost of ownership. Overall, ABB’s CEPY1-style enclosure supports dependable safety, quick installation, and strong regulatory signals for panel builders and integrators.
Product Information
Extended Description

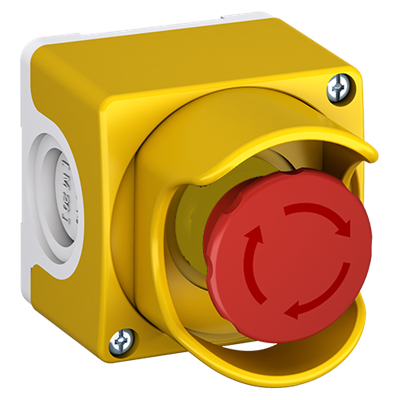

1SFA619821R2001 ABB: Assembled Enclosure with Shroud - 40mm Mushroom Emergency Stop - Twist Release - 2NC - Horisontally mounted
Minimum Order Quantity
1 piece
Customs Tariff Number
85369001
Product Main Type
CEPY1
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
0.065 m
Product Net Depth / Length
0.08 m
Product Net Height
0.065 m
Product Net Weight
0.124 kg
Accessory Type
Enclosure
Color
Yellow/Light grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Housing Material
Plastic
Number of Auxiliary Contacts NC
2
Rated Operational Voltage
24 ... 300 V
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Housing IP69K | Housing IP66 | Housing IP67 | Terminals IP20
Material
Plastic
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
3f20891a-9fba-4132-a2df-dba1d78a7916 Sweden (SE)
Simplified SCIP
ff22fbca-2eac-479e-80cb-3991b6b17326 Germany (DE) | f431639e-28ea-491e-92ee-2369c6b759dd Czech Republic (CZ) | 1fcc6235-0358-47e7-8c4d-59169f57121a Belgium (BE) | 50aa1a9b-bee2-421a-b9b1-1c7402e025c3 Hungary (HU) | 69b4d880-a4ee-4632-8ef4-8de667e0d355 Spain (ES) | 5aa13a87-a115-4726-8dd5-5d8795ae8652 France (FR) | c0da4390-ca98-4a65-8c7e-824e5a5effe5 Germany (DE) | 28f5285d-6149-43ab-9bbb-4032857f23b7 Germany (DE) | e9148cec-7c01-4667-aba9-74191ef544cc Poland (PL) | c42238a4-a9dd-4464-9ddf-d6c39cb7e913 France (FR) | 82cfb6a0-9d41-4149-9850-5cea851849cb Greece (GR) | cead27b7-b179-4b85-92de-bffa6b436faa Portugal (PT) | 9a351f67-0bef-4572-a573-88036d70fb94 Bulgaria (BG) | f926c526-0648-407c-a3c0-8ffff59cd253 Sweden (SE) | dd1fc5b5-e4f8-492c-a5f7-9875f1bb5286 Poland (PL) | 20501b6b-5081-4202-b5fa-74764416abaf Estonia (EE) | 5a31100a-f5dd-4c76-abc2-c2a39823b923 Netherlands (NL) | 1d55b33a-4217-4fa6-a482-9867260509bb Hungary (HU) | 3eb4b507-0f62-403c-b4a3-ad325ad236bf Poland (PL) | 4f250cff-37ae-4d97-9bda-e63a3938de49 Norway (NO) | ec1a3329-4243-4c44-ba2c-e5c89d711c3e Belgium (BE) | 4534d032-edf3-4a13-8eb6-4acfb5cf08e9 Denmark (DK) | edeacd25-6231-4aa1-ab8d-d7cb7d15cd47 Finland (FI) | 5c3539c1-8734-498d-8fe6-479e2897ba9c Italy (IT) | c26d58e0-e76f-4642-840a-7a858b5435bb Germany (DE) | eea905ca-4cd1-4c2c-8a81-3ffb7e0d682a Croatia (HR) | f9d0ab5e-cc7f-4983-8ae5-da89df311e99 Germany (DE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.078 m
Package Level 1 Gross Weight
0.154 kg
Package Level 1 EAN
7320500358146
eClass
V11.0 : 27371216
E-Number (Finland)
2312183
E-Number (Norway)
4373375
E-Number (Sweden)
3711619
ETIM 6
EC000225 - Control circuit devices combination in enclosure
ETIM 7
EC000225 - Control circuit devices combination in enclosure
ETIM 8
EC000225 - Control circuit devices combination in enclosure
ETIM 9
EC000225 - Control circuit devices combination in enclosure
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
Object Classification Code
S
UNSPSC
39121326
Feature: Assembled enclosure with shroud for 40 mm mushroom emergency stop devices, twist-release, and two NC contacts, horizontally mounted. Business Impact: Reduces wiring errors and speeds safe-stop integration, cutting commissioning time and risk in safety-critical stations. Application: Ideal for control panels in conveyors, packaging lines, and automated manufacturing cells. Feature: Front protection ratings IP66, IP67, IP69K and housing protection IP69K/IP66/IP67. Business Impact: Enables reliable operation in washdown and dusty environments, lowering maintenance frequency and downtime. Application: Food processing, chemical, and automotive assembly lines requiring rugged ingress protection. Feature: Rated operational voltage from 24 to 300 V and plastic housing with yellow/light-grey finish. Business Impact: Supports common control circuits with clear labeling and corrosion resistance, reducing component count and wiring effort. Application: Panel builders consolidating components within a compact footprint. Feature: Two auxiliary contacts (NC). Business Impact: Facilitates simple stop function and local control logic without additional modules. Application: Emergency-stop circuits and basic interlocks inside compact enclosures. Feature: Compact dimensions and light weight (0.065 m width, 0.08 m depth, 0.065 m height; 0.124 kg) with MOQ 1. Business Impact: Minimizes panel footprint and inventory while simplifying handling and installation. Application: Space-constrained control panels and retrofits in tight machine enclosures. Feature: Documentation and compatibility support (CAD drawings, data sheets, installation instructions). Business Impact: Speeds engineering alignment, reduces integration risk, and streamlines procurement. Application: OEMs and system integrators delivering turnkey pilot-device solutions with confidence.
Get a Quick Quote for a ABB 1SFA619821R2001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619821R2001?
Enquire Now
FAQs
It is designed for pilot devices and emergency stop components, featuring a 40 mm mushroom stop, twist-release, and two NC contacts in a horizontally mounted assembled enclosure suitable for control panels and safety stations.
The enclosure provides Front IP66, IP67, and IP69K protection, with housing rated IP69K/IP66/IP67, enabling reliable operation in washdown and dusty environments typical of harsh industrial plants.
It carries CE conformity with a CE Declaration of Conformity, RoHS compliance, CMRT documentation, and UKCA references, supporting global regulatory requirements for safety and environmental impact.
Dimensions are 0.065 m W x 0.08 m D x 0.065 m H, weight 0.124 kg, with a minimum order quantity of 1 piece. CAD drawings and installation instructions are available to accelerate integration.
Yes. With a 24–300 V operating range, NEMA compatibility (Type1/Type12/Type13/Type3R/Type4/Type4X), and broad protection ratings, it suits international panel-building, machine tending, and safety-stop applications.
