ABB 1SFA619821R2002 Enclosure - CEPY1 IP69K/IP66
Part Number: 1SFA619821R2002
Quick Summary
ABB 1SFA619821R2002 Enclosure is a rugged control-panel housing designed for pilot devices and emergency-stop configurations. It addresses common field challenges such as moisture ingress, washdown exposure, and wiring complexity by providing a compact, horizontally mounted enclosure. Key protections include front IP66, IP67 and IP69K ratings with housing IP69K/IP66/IP67, ensuring reliable performance in harsh environments. With CE and UKCA declarations along with RoHS and REACH compliance, this enclosure supports global manufacturing standards. For system integrators and OEMs, the CEPY1 enclosure delivers tight integration for pilot devices, emergency-stop circuits, and safety interlocks while enabling scalable, compliant panel solutions.
Product Information
Extended Description

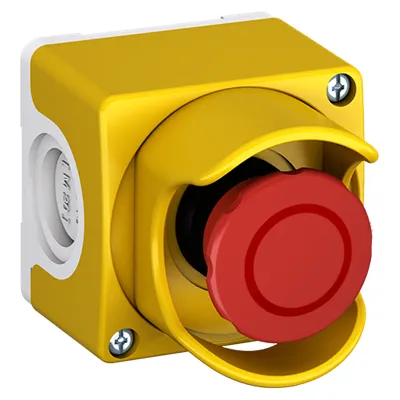

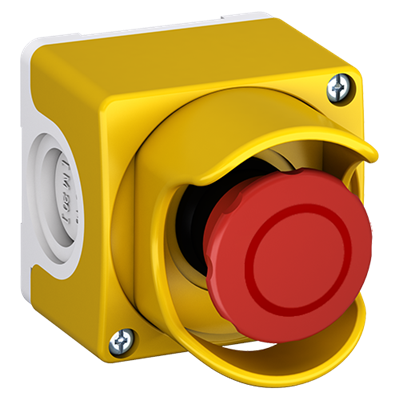

1SFA619821R2002 ABB: Assembled Enclosure with Shroud - 40mm Mushroom Emergency Stop - Pull Release - 2NC - Horisontally mounted
Minimum Order Quantity
1 piece
Customs Tariff Number
85369001
Product Main Type
CEPY1
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
0.065 m
Product Net Depth / Length
0.08 m
Product Net Height
0.065 m
Product Net Weight
0.124 kg
Accessory Type
Enclosure
Color
Yellow/Light grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Housing Material
Plastic
Number of Auxiliary Contacts NC
2
Rated Operational Voltage
24 ... 300 V
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Housing IP69K | Housing IP66 | Housing IP67 | Terminals IP20
Material
Plastic
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
bbfbb855-3ba7-4cf4-a9ce-289f58ca421a Sweden (SE)
Simplified SCIP
298fd539-9a13-4791-b398-ef20fb285b9a Germany (DE) | 37ad0e7b-7e0b-418c-bb35-aae2c29a8076 Bulgaria (BG) | 67ca5c95-8989-476d-bccf-b31ca0e5d1c8 Poland (PL) | 67043823-25dd-4e96-a30d-7e970293183b Greece (GR) | d388d5aa-d60a-42ac-8753-8d357733b893 Hungary (HU) | a55d70a2-eab4-40b5-ad97-8fce56d754f4 Estonia (EE) | 8fd80772-3920-4536-9abd-50928228dc13 Czech Republic (CZ) | 8929b947-60e6-45ec-b385-4b4c0048ca2a Netherlands (NL) | 193c411a-0f2d-4eeb-895b-357033aa1ec0 Belgium (BE) | f1dffc50-c70d-4aaf-a3df-e75d54fdd744 Spain (ES) | 243924cc-bcb4-40cd-b2f3-ec9f4f4d4b72 Hungary (HU) | bd5f8c0e-331a-4329-92d0-d27ed79ba947 France (FR) | 3f35e2a2-c719-4e9a-a073-ce238cd53f7d Germany (DE) | c03e77f9-38e3-4281-b7cb-ba95d74261a1 France (FR) | a751da17-6499-4b03-b043-cb1106827c6c Germany (DE) | 2af78e2b-5789-4cfa-855f-89084570eb33 Italy (IT) | db462ac3-098f-4ea7-b9f1-16564ae7cbb5 Finland (FI) | a53d1776-e524-494e-b96d-37141616ef2c Poland (PL) | eb8a834a-c7ae-4ce3-a480-c18aed562b09 Norway (NO) | 027422bc-a12e-43d7-bcb0-248354cd10e0 Croatia (HR) | fb43569a-103d-470a-b3e6-89e13e166d6b Germany (DE) | 26093eba-ae8c-4d4c-8614-c41e0497f5a3 Belgium (BE) | 22de5d84-e5a7-4d07-9005-79de8d8c4802 Denmark (DK) | c056357e-247e-4975-aaac-4e5283385332 Germany (DE) | d5e83410-e468-4a7d-a2b3-1a80eede241d Portugal (PT) | 2c019f43-7a01-4de2-b0ac-7efa4106f39a Poland (PL) | 4482388c-ac95-4292-afec-68ce6b4630a4 Sweden (SE)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
CB Certificate
CB-Certificate-CE,CEP
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
EAC Certificate
EAC-certificate, Pilot devices, CE, CEPY, MEPY
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.078 m
Package Level 1 Gross Weight
0.154 kg
Package Level 1 EAN
7320500358139
eClass
V11.0 : 27371216
E-Number (Finland)
2312184
E-Number (Norway)
4373376
E-Number (Sweden)
3711620
ETIM 6
EC000225 - Control circuit devices combination in enclosure
ETIM 7
EC000225 - Control circuit devices combination in enclosure
ETIM 8
EC000225 - Control circuit devices combination in enclosure
ETIM 9
EC000225 - Control circuit devices combination in enclosure
IDEA Granular Category Code (IGCC)
4478 >> Electrical pushbutton enclosure
Object Classification Code
S
UNSPSC
39121326
Feature: Assembled Enclosure with Shroud and 40 mm Mushroom Emergency Stop; Business Impact: Accelerates installation and reduces wiring errors by providing a ready-to-wire safety stop solution. Application: Pilot-device enclosures in machine dashboards and control panels. Feature: 2NC auxiliary contacts; Business Impact: Enables simple control circuits and safety interlocks with fewer components. Application: Emergency-stop safety circuits in automation lines. Feature: Horizontal mounting design; Business Impact: Improves operator accessibility and footprint efficiency in compact panels. Application: Panel layouts demanding accessible E-stop access. Feature: Plastic housing with yellow/light-grey finish; Business Impact: Lightweight construction improves handling and reduces shipping costs while maintaining visibility in control areas. Application: Indoor control cabinets and equipment housings. Feature: Wide voltage range 24 to 300 V; Business Impact: Supports diverse control systems without adapters, lowering procurement overhead. Application: PLCs, relays, and safety devices. Feature: Front protection IP66/IP67/IP69K; Housing IP69K/IP66/IP67; Business Impact: Washdown-ready and corrosion-resistant for challenging environments. Application: Food & beverage, hygiene-critical, and outdoor installations. Feature: Temperature and altitude specs; Business Impact: Maintains performance in -25 to +70 °C operation and up to 2000 m altitude without derating. Application: High-altitude or extreme-temperature sites. Feature: Compliance and certifications (CE, UKCA, RoHS, REACH, CMRT); Business Impact: Streamlines audits, lowers regulatory risk, and shortens time-to-market. Application: Global product approvals and supplier declarations.
Get a Quick Quote for a ABB 1SFA619821R2002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619821R2002?
Enquire Now
FAQs
Install the enclosure horizontally to align with operator reach. Connect the 2NC auxiliary contacts for basic stop/start safety circuits and supply 24 to 300 V as per your control scheme. Ensure the front carries IP66/IP67/IP69K protection and the housing meets IP69K/IP66/IP67 requirements for reliable washdown performance.
Yes. The front is rated IP66, IP67 and IP69K, and the housing carries IP69K/IP66/IP67 protection. This makes it well-suited for washdown environments and demanding outdoor or harsh indoor applications while maintaining safety device integrity.
The enclosure supports a rated operational voltage of 24 to 300 V and provides 2 NC auxiliary contacts for safety and control circuits. It accommodates pilot devices and emergency-stop configurations, enabling compact, compliant control panel designs.
This enclosure carries CE and UKCA declarations, RoHS and REACH compliance, CMRT tracking, and related safety certifications. It is supported by CB, CQC, CCC and other declarations to align with multi-region procurement and regulatory requirements.
Product net width is 0.065 m, depth 0.08 m, and height 0.065 m, with a net weight of 0.124 kg. Packaged dimensions vary, with Package Level 1 width and depth at 0.1 m and height at 0.078 m, weight 0.154 kg per unit, aiding compact panel integration.
