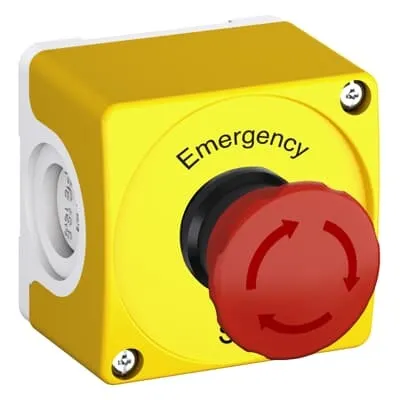

ABB 1SFA619821R5002 CEPY1 Enclosure - IP66/IP69K
Part Number: 1SFA619821R5002
Quick Summary
ABB 1SFA619821R5002 CEPY1 Enclosure protects 30 mm mushroom emergency stops inside compact control panels. Engineers often struggle with securing stops against dust, moisture, and misalignment during installation. This enclosure delivers CE and UKCA declarations with robust IP66 and IP69K protection, plus compatible NEMA Type ratings for reliability in harsh environments. Built with a durable plastic housing, it provides long service life at a lighter weight, reducing handling and integration time. For pilot devices and safety circuits, the CEPY1 enclosure accelerates commissioning and supports scalable safety architectures across production lines.
Product Information
Extended Description
1SFA619821R5002 ABB: Assembled Enclosure - 30mm Mushroom Emergency Stop - Twist Release - 2NC - Vertically mounted
Minimum Order Quantity
1 piece
Customs Tariff Number
85369001
Product Main Type
CEPY1
Data Sheet, Technical Information
1SFC151007C0201 Pilot Devices the complete offering, Main Catalogue
Instructions and Manuals
Safety instructions & Installation instructions - Pilot Devices
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
0.065 m
Product Net Depth / Length
0.079 m
Product Net Height
0.065 m
Product Net Weight
0.105 kg
Accessory Type
Enclosure
Color
Yellow/Light grey
Enclosure Type NEMA
Type1 | Type12 | Type13 | Type3R | Type4 | Type4X
Housing Material
Plastic
Number of Auxiliary Contacts NC
2
Rated Operational Voltage
24 ... 300 V
Ambient Air Temperature
Operation -25 ... +70 °C | Storage -40 ... +85 °C
Degree of Protection
Front IP66 | Front IP67 | Front IP69K | Housing IP69K | Housing IP66 | Housing IP67 | Terminals IP20
Material
Plastic
Maximum Operating Altitude Permissible
Without Derating 2000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACh - Pilot Devices
RoHS Information
RoHS - Pilot Devices
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Pilot Devices
WEEE Category
Product Not in WEEE Scope
CQC Certificate
CQC Certificate, Pilot Device, TYPE C(CP, C2SS, C3SS, CL, CE, CB, CEP), Made in China
cURus Certificate
CULus Cerrtificate-C-series Pilot Device Compact C
Declaration of Conformity - CCC
CCC Self-Declaration,Pilot Device,Compact C
Declaration of Conformity - CE
CE Declaration of Conformity - Emergency Stop-CE,CEPY
Declaration of Conformity - UKCA
UKCA Declaration of Conformity - Emergency stop devices - MEPY, MPE, MPM, MEM, MEP, MEX, P9XE, CEPY, CEP, CE
DNV GL Certificate
DNV/GL Certificate, Pilot Device,Compact C
Package Level 1 Units
bag 1 piece
Package Level 1 Width
0.1 m
Package Level 1 Depth / Length
0.1 m
Package Level 1 Height
0.078 m
Package Level 1 Gross Weight
0.138 kg
Package Level 1 EAN
7320500374108
eClass
V11.0 : 27371216
ETIM 6
EC000225 - Control circuit devices combination in enclosure
ETIM 7
EC000225 - Control circuit devices combination in enclosure
ETIM 8
EC000225 - Control circuit devices combination in enclosure
ETIM 9
EC000225 - Control circuit devices combination in enclosure
Object Classification Code
S
UNSPSC
39121326
Feature: Compact, lightweight plastic housing in Yellow/Light grey. Business Impact: Simplifies panel layout while resisting harsh washdown conditions. Application: Suitable for tight-control enclosures in manufacturing and packaging lines. Feature: Front protection IP66, IP67, IP69K and housing IP69K/IP66/IP67. Business Impact: Enables reliable operation in dusty, wet, or high-pressure wash environments with minimal maintenance. Application: Food and beverage, pharmaceutical, and automotive facilities require rigorous ingress protection. Feature: Enclosure supports Type 1, Type 12, Type 13, Type 3R, Type 4, Type 4X NEMA ratings. Business Impact: Delivers versatile installation options across standard safety enclosures without custom fabrication. Application: OEMs and integrators can consolidate panels and reduce BOM complexity. Feature: 2 auxiliary contacts NC and rated operational voltage 24 to 300 V. Business Impact: Enables safe interlocking and signaling within a single housing, lowering wiring errors and downtime. Application: Emergency stop circuits and control logic in line equipment. Feature: Lightweight net weight 0.105 kg and compact dimensions 0.065 m wide by 0.065 m high and 0.079 m deep. Business Impact: Eases on-site handling, reduces panel depth, and speeds field retrofits. Application: Retrofit projects and new machine builds requiring fast installation. Feature: Compliance and documentation—RoHS, REACH, CMRT, CE/UKCA declarations, CAD drawings available. Business Impact: Supports regulatory compliance and streamlined engineering workflows. Application: Design validation, supplier audits, and maintainable safety documentation.
Get a Quick Quote for a ABB 1SFA619821R5002
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFA619821R5002?
Enquire Now
FAQs
The CEPY1 enclosure is designed to house 30 mm mushroom emergency stop devices with twist release, enabling vertical mounting and secure operation. It supports two NC auxiliary contacts and a rated voltage range of 24 to 300 V, making it suitable for standard stop circuits in control panels and safety interlocks across multiple industries.
Installation is straightforward: mount the assembled enclosure in the panel, connect the 2NC auxiliary contacts and the 24–300 V supply, then secure the front panel to ensure IP66/IP69K protection. The enclosure’s compact footprint (0.065 m x 0.065 m x 0.079 m) and lightweight design simplify retrofits and new installations alike, reducing commissioning time.
Yes. The CEPY1 enclosure provides front protection IP66, IP67, and IP69K, with housing protection IP69K/IP66/IP67, making it well suited for washdown and dusty environments. Its plastic housing and high-temperature tolerance (-25 to +70 °C operating) support reliable operation in demanding plants such as food, beverage, and automotive manufacturing.
The enclosure includes CE and UKCA declarations, along with RoHS and REACH compliance. It also features CMRT documentation and CQC/cURus certificates, plus DNV GL certification in related pilot device applications. These certifications support regulatory compliance, supplier audits, and safe integration into complex safety systems.
Net dimensions are 0.065 m (width) by 0.065 m (height) by 0.079 m (depth), with a net weight of 0.105 kg. These compact measurements help optimize panel real estate and simplify enclosure budgeting for projects involving 30 mm stop devices and safety interlocks.
