ABB 1SFL431074R8611 Contactor - CE/UL Certified
Part Number: 1SFL431074R8611
Quick Summary
ABB 1SFL431074R8611 Contactor is a high-capacity motor starter designed for reliable control in industrial panels. Engineers often struggle with balancing protection, speed, and space in compact switchgear. This model carries CE Declaration of Conformity, UL certification, and RoHS compliance, with additional REACH and CQC/CCC references enhancing global acceptance. By delivering solid AC-3 performance and a compact footprint, it supports efficient motor protection and streamlined wiring. For procurement, the blend of robust electrical ratings and installation practicality translates to reduced downtime and improved panel density, while maintaining compliance across key markets.
Product Information
Extended Description

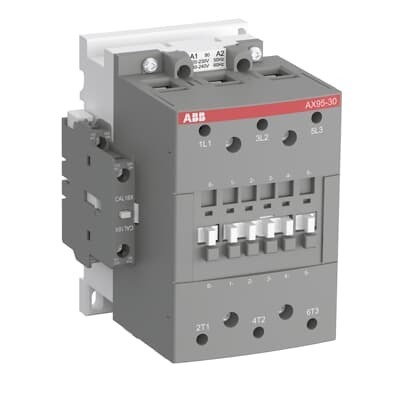

1SFL431074R8611 ABB: AX95-30-11-86 Contactor
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
AX 90~150A instructions
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
102 mm
Product Net Depth / Length
123.5 mm
Product Net Height
148 mm
Product Net Weight
1.9 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 145 A
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 145 A | (690 V) 55 °C 135 A | (690 V) 60 °C 135 A | (690 V) 70 °C 115 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 96 A | (440 V) 55 °C 93 A | (500 V) 55 °C 80 A | (690 V) 55 °C 65 A | (380 / 400 V) 55 °C 96 A | (220 / 230 / 240 V) 55 °C 96 A
Rated Operational Power AC-3 (Pe)
(415 V) 55 kW | (440 V) 55 kW | (500 V) 55 kW | (690 V) 55 kW | (380 / 400 V) 45 kW | (220 / 230 / 240 V) 25 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 800 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 160 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 350 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1320 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 500 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (Uimp)
8 kV
Maximum Electrical Switching Frequency
300 cycles per hour
Mechanical Durability
10 million
Maximum Mechanical Switching Frequency
3600 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 400 ... 415 V | 60 Hz 415 ... 440 V
Power Loss
at Rated Operating Conditions per Pole 2.7 W
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
Terminal Type
Cable Clamp
Product Name
Block Contactor
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CQC Certificate
CQC Certificate, Contactor, AX95, AX115, AX150, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AX95, AX115, AX150, Made in China
Declaration of Conformity - CE
CE Declaration of conformity - Contactor - AX95...AX370
UL Certificate
cULus Certificate, Contactor, A95...A110, AX95...AX150
Package Level 1 Units
box 1 piece
Package Level 1 Width
140 mm
Package Level 1 Depth / Length
170 mm
Package Level 1 Height
130 mm
Package Level 1 Gross Weight
2.1 kg
Package Level 1 EAN
7320500500071
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: 3-pole main contacts with 3 NO and 0 NC; Business Impact: Enables reliable motor switching with straightforward wiring, reducing misconnections and maintenance downtime; Application: Suitable for three-phase motors in conveyor lines and pumps. Feature: Auxiliary contact set NO/NC (1/1); Business Impact: Improves control logic and status feedback for interlocks and sequencing, increasing system safety. Application: Panel-mounted control circuits in packaging lines. Feature: Rated insulation voltage 690 V and AC-1/AC-3 operation; Business Impact: Supports high-voltage motor drives with safe isolation and predictable switching, lowering risk. Application: Industrial drives and HVAC systems. Feature: Coil voltage options 50 Hz 400–415 V and 60 Hz 415–440 V; Business Impact: Reduces control cabinet variety and simplifies procurement across international facilities. Application: Global machine control. Feature: Power loss 2.7 W per pole; Business Impact: Low energy waste and cooler relays, extending service life in continuous operation; Application: Continuous process equipment. Feature: Mechanical durability rated at 10 million cycles; Business Impact: Longer service intervals and lower maintenance costs; Application: Heavy-duty motor control in manufacturing. Feature: Compact dimensions 102 mm width × 123.5 mm depth × 148 mm height with weight 1.9 kg; Business Impact: Easy panel integration and space savings in tight electrical enclosures; Application: Control panels and MCCs. Feature: IP40 protection and cable clamp terminals; Business Impact: Robust wiring and safe operation in typical indoor environments; Application: General factory automation. Feature: Compliance suite including CE, UL, RoHS, REACH; Business Impact: Accelerates global approvals and reduces certification effort; Application: Global OEM deployments. This blends technical performance with real-world applicability, supporting engineers in selecting a durable, compliant contactor for demanding machines.
Get a Quick Quote for a ABB 1SFL431074R8611
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL431074R8611?
Enquire Now
FAQs
The AX95-30-11-86 uses a Cable Clamp terminal arrangement and is designed with a compact profile suitable for 3P block contactors. Its product dimensions (102 mm width, 123.5 mm depth, 148 mm height) and 1.9 kg weight support straightforward mounting in standard control panels, enabling secure, vibration-resistant wiring for three-phase motor applications.
For AC-1 operation at 690 V and 40 °C, the device supports 145 A, with adjustments to 135 A at higher ambient temperatures. For AC-3 at various voltages, ratings include 96 A at 415 V, 93 A at 440 V, 80 A at 500 V, and 65 A at 690 V, with 96 A at 380/400 V and 96 A at 220/230/240 V. These figures reflect robust motor switching capacity with safe, predictable performance.
Yes. It carries CE Declaration of Conformity for Contactor AX95 family, UL certification, and RoHS compliance. Additional declarations include CCC, CQC, and REACH statements, positioning the product for broad regulatory acceptance and reducing compliance risk in multinational deployments.
This 3P block contactor is optimized for motor control and starting in three-phase drives, including conveyors, pumps, and compressors. With AC-3 ratings suitable for starting and switching motors, it supports energy-efficient operation, reliable protection, and simplified wiring in control cabinets and MCCs, making it a solid choice for standard industrial automation tasks.
The unit measures 102 mm wide, 123.5 mm deep, and 148 mm high, weighing 1.9 kg. It features IP40-rated auxiliary terminals and cable clamp connectivity, suitable for indoor factory environments. The packaging presents a compact footprint as well (box per unit, 140 × 170 × 130 mm), aiding efficient space planning in panel design and field installations.
