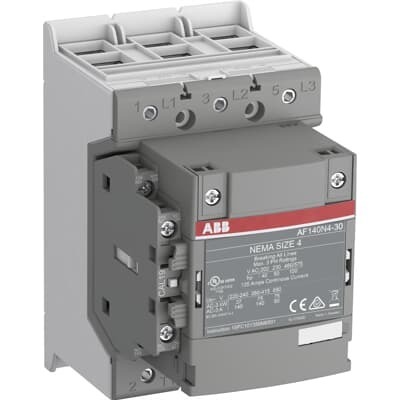

ABB AF140N4-30-11-14 Contactor - IEC 60947-4-1 / UL
Part Number: 1SFL447001N1411
Quick Summary
AF140N4-30-11-14 Contactor is a 3-pole motor starter for reliable AC motor control in industrial applications. It helps reduce panel energy waste and startup instability when supply voltages swing, delivering smooth operation. This device meets IEC 60947-4-1 / 60947-1, EN 60947-4-1 / 60947-1, UL 508 and CSA C22.2 N°14 for safety and compliance. With AF technology, a wide control voltage range and built-in surge protection, it offers easy installation and scalable accessory options. These features enable predictability in demanding environments and support expansion as motor control needs evolve. The result is improved machine uptime, reduced wiring complexity, and a clearer path to compliance across multiple regions.
Product Information
Extended Description
1SFL447001N1411 ABB: The AF140N4-30-11-14 NEMA Contactor is a 3 pole - 1000 V IEC or 600 V UL contactor with double clamp, controlling motors up to 75 kW / 400 V AC (AC-3) or 100 hp / 480 V UL 200 A (AC-1) or 200 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V, 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
Operating instruction, Contactor, AF(S)116, AF140, AF(S)146
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
90 mm
Product Net Depth / Length
126 mm
Product Net Height
150 mm
Product Net Weight
1.55 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Standards
IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, CSA C22.2 N°14
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 200 A
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 200 A | (690 V) 70 °C 160 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 140 A | (440 V) 55 °C 140 A | (500 V) 55 °C 130 A | (690 V) 55 °C 80 A | (380 / 400 V) 55 °C 140 A | (220 / 230 / 240 V) 55 °C 140 A
Rated Operational Current DC-1 (Ie)
(110 V) 2 Poles in Series, 40 °C 160 A | (220 V) 3 Poles in Series, 40 °C 160 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 160 A | (220 V) 3 Poles in Series, 40 °C 160 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 160 A | (220 V) 3 Poles in Series, 40 °C 160 A
Rated Operational Power AC-3 (Pe)
(415 V) 75 kW | (440 V) 90 kW | (500 V) 90 kW | (690 V) 75 kW | (380 / 400 V) 75 kW | (220 / 230 / 240 V) 37 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Short-Circuit Protective Devices
gG Type Fuses 315 A
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1168 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 200 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 477 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1460 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 674 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3000 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1500 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 300 cycles per hour | (AC-2 / AC-4) 150 cycles per hour | (AC-3) 300 cycles per hour
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 250...500 V | 60 Hz 250...500 V | DC Operation 250 ... 500 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 16.1 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 16.1 V·A | Holding at Max. Rated Control Circuit Voltage DC 4 W | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 205 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 205 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 204 W
Power Loss
at Rated Operating Conditions per Pole 9 W
Operate Time
Between Coil De-energization and NO Contact Opening 37 ... 47 ms | Between Coil Energization and NO Contact Closing 25 ... 55 ms
Connecting Capacity Main Circuit
Flexible 2 x 10 ... 70 mm² | Rigid Cu-Cable 2 x 10 ... 95 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible 2x 0.75 ... 2.5 mm² | Solid 2x 1 ... 4 mm² | Stranded 2x 1 ... 4 mm²
Connecting Capacity
Flexible 2 x 10 ... 70 mm² | Rigid Cu-Cable 1 x 10 ... 95 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque
Cable Lug 9 N·m | Main Circuit 8 N·m
Terminal Type
Double Clamp
Product Name
Block Contactor
NEMA Size
4
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)116(B)-**(RT) to AF(S)205(B)-**(RT)
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF116 - AF146
CB Certificate
SEMKO_SE-70479M1
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116...AF370
UL Certificate
cULus Certificate, Contactor, AF116-30...AF146-30, AFS116-30...AFS146-30
Package Level 1 Units
box 1 piece
Package Level 1 Width
207 mm
Package Level 1 Depth / Length
216 mm
Package Level 1 Height
150 mm
Package Level 1 Gross Weight
1.75 kg
Package Level 1 EAN
7320500543597
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4762 >> Nema Contactors
Three-pole main circuit with an integrated auxiliary contact set provides robust motor switching and immediate feedback to the control system, reducing the risk of missed starts and improving protection coordination. This translates to fewer unplanned outages and better conveyor, pump, or mixer performance in busy production lines. The AF platform supports a wide control voltage range of 250–500 V (AC) and DC, which lowers spare-part inventories and simplifies panel design when voltage fluctuations are common in shared facilities. Built-in surge protection further guards against transient spikes, extending contactor life and reducing maintenance costs in high-dynamic environments. The compact block design with double clamp terminals saves panel space and delivers straightforward installation, while compatibility with add-on auxiliary contact blocks enables scalable monitoring, interlocking, and fault-indication schemes. With a rated AC-3 power handling up to 140 A at 415–440 V, this device is well suited for town-scale motors and HVAC applications, and its 3P configuration supports reliable, synchronized operation across multi-motor drives. Compliance to IEC 60947-1 / 60947-4-1, EN 60947-1 / 60947-4-1, UL 508 and CSA N°14 ensures regulatory alignment and traceability. The unit also offers IP20 coil terminals and IP00 main terminals for safer, cleaner installation in standard control panels. The option to select add-on accessories means you can tailor the solution for specific interlock, signaling, or protection needs without replacing the base device. In short, the AF140N4-30-11-14 blends rugged performance with modular expandability, supporting energy efficiency, lifecycle cost reduction, and faster time to production sign-off.
Get a Quick Quote for a ABB 1SFL447001N1411
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL447001N1411?
Enquire Now
FAQs
Install the 3P main contacts using the recommended flexible or rigid copper cables: 2 x 10 to 70 mm² for flexible connections, and 1 x 10 to 95 mm² for rigid cables. Use the double clamp terminals for secure connections, tighten main circuit bolts to the specified torque, and wire the auxiliary contacts for signaling or interlocking. The unit fits standard control panels and supports add-on contact blocks for expanded control logic, reducing wiring complexity while improving fault detection.
Main circuit rated voltage is up to 1000 V with 50/60 Hz operation. Rated operational current AC-3 ranges depending on voltage (up to 140 A at 415–440 V, down to 80 A at 690 V). Mechanical durability is rated at 5 million cycles, and it supports up to 75 kW at 415 V under AC-3, making it suitable for demanding motor loads in mid-size facilities.
Yes. The AF140N4-30-11-14 is designed for AC-3 motor loads such as conveyors and pumps, with a 3P configuration and 1000 V insulation rating. Its wide control voltage tolerance (250–500 V) and built-in surge protection help maintain reliable operation in networks with voltage fluctuations, while the compact form factor simplifies panel installation.
The contactor complies with IEC 60947-1 / 60947-4-1 and EN 60947-1 / 60947-4-1, UL 508, and CSA C22.2 N°14. This ensures safety, interoperability, and regulatory acceptance across international markets, supporting quality management and product traceability in engineering procurement processes.
AF technology offers a wide control voltage range and robust surge protection, reducing wiring changes and transient-related failures. The result is lower maintenance costs, higher equipment availability, and a longer service life for motor control cabinets. Availability of add-on auxiliary blocks also supports scalable monitoring and interlock schemes, improving overall system reliability and uptime.
