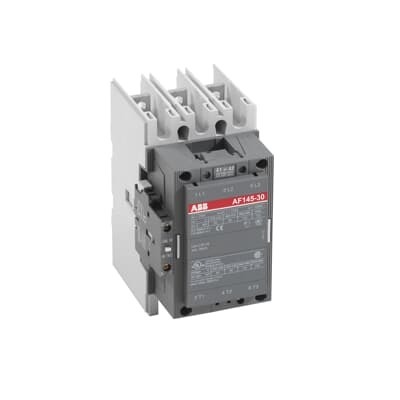

ABB 1SFL477001R7211 Block Contactor - CE & UL Listed
Part Number: 1SFL477001R7211
Quick Summary
ABB 1SFL477001R7211 Block Contactor enables reliable motor starting in three‑phase DC systems. Engineers often face coil voltage variability and thermal stress that reduce performance and uptime. This model integrates CE conformity and UL/CSA listings along with robust insulation ratings for global compliance. Designed for industrial automation, it streamlines installation, reduces downtime, and supports predictable maintenance cycles across sensitive equipment. With a 3P main contact arrangement and one NO plus one NC auxiliary contact, it supports versatile control logic on motor drives. Its compact footprint, sturdy mechanical durability, and broad operating voltage range help technicians simplify panel layouts and improve overall equipment effectiveness in harsh environments.
Product Information
Extended Description
1SFL477001R7211 ABB: A 3-phase Contactor suitable for various applications such as Motor starting, Isolation, By-pass and Distribution application up to max 1000 V. Operated with wide control voltage range 20-60 V, DC
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Replacement Product ID (NEW)
1SFL467002R1111
Data Sheet, Technical Information
1SBC100192C0206
Instructions and Manuals
Contactors A145, A185, A210, A260, A300
Dimension Diagram
53540923-7
Product Net Width
111.5 mm
Product Net Depth / Length
160 mm
Product Net Height
196 mm
Product Net Weight
3.4 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Voltage
Main Circuit 690 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 250 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 180 A | (1000 V) 55 °C 180 A | (1000 V) 70 °C 180 A | (690 V) 40 °C 250 A | (690 V) 55 °C 230 A | (690 V) 70 °C 180 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 145 A | (440 V) 55 °C 145 A | (500 V) 55 °C 145 A | (690 V) 55 °C 120 A | (1000 V) 55 °C 80 A | (380 / 400 V) 55 °C 145 A | (220 / 230 / 240 V) 55 °C 145
Rated Operational Current DC-1 (Ie)
(110 V) 2 Poles in Series, 40 °C 250 A | (220 V) 3 Poles in Series, 40 °C 250 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 250 A | (220 V) 3 Poles in Series, 40 °C 250 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 250 A | (220 V) 3 Poles in Series, 40 °C 250 A
Rated Operational Power AC-3 (Pe)
(415 V) 75 kW | (440 V) 75 kW | (500 V) 90 kW | (690 V) 110 kW | (1000 V) 110 kW | (380 / 400 V) 75 kW | (220 / 230 / 240 V) 45 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Short-Circuit Protective Devices
gG Type Fuses 315 A
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1200 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 280 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 600 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1800 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 800 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 1500 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 1200 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 600 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 300 cycles per hour | (AC-2 / AC-4) 150 cycles per hour | (AC-3) 300 cycles per hour
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) 0.85 x Uc Min. ... 1.1 x Uc Max. (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
DC Operation 20 ... 60 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 12 V·A | Holding at Max. Rated Control Circuit Voltage DC 2 W | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 430 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 430 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 500 W
Power Loss
at Rated Operating Conditions per Pole 5 W
Operate Time
Between Coil De-energization and NC Contact Closing 40 .... 50 ms | Between Coil De-energization and NO Contact Opening 43 ... 53 ms | Between Coil Energization and NC Contact Opening 45 ... 85 ms | Between Coil Energization and NO Contact Closing 50 ... 90 ms
Connecting Capacity Main Circuit
Bar 24 mm² | Rigid Al-Cable 1 x 25 ... 150 mm² | Rigid Cu-Cable 1 x 6 ... 185 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 1x0.75 ... 2.5 mm² | Solid 2 x 1 ... 4 mm² | Stranded 2 x 1 .... 4 mm²
Connecting Capacity
Bar 24 mm² | Rigid Al-Cable 1 x 25 ... 150 mm² | Rigid Cu-Cable 1 x 6 ... 185 mm²
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Tightening Torque
Main Circuit 18 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
NEMA Size
4
Maximum Operating Voltage UL/CSA
Main Circuit 600 V
General Use Rating UL/CSA
(600 V AC) 230 A
Horsepower Rating UL/CSA
(200 V AC) Three Phase 40 hp | (208 V AC) Three Phase 40 hp | (220 ... 240 V AC) Three Phase 50 hp | (440 ... 480 V AC) Three Phase 100 hp | (550 ... 600 V AC) Three Phase 125 hp
Full Load Amps Motor Use
(440 ... 480 V AC) Three Phase 124 A | (550 ... 600 V AC) Three Phase 125 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Resistance to Shock acc. to IEC 60068-2-27
Shock Direction: A 5 g | Shock Direction: B1 5 g | Shock Direction: B2 5 g | Shock Direction: C1 5 g | Shock Direction: C2 5 g
RoHS Information
CE Declaration of Conformity - Contactor - A(F)95...A(F)300, AM110...AM300, UA95...UA110, (T)AE95....(T)AE110
RoHS Status
Following EU Directive 2011/65/EU
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SEMKO_SE-69478
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, Contactor, AF145, AF185, AF145B...RT, AF185B...RT, Made in Sweden | CQC Certificate, Contactor, AF145-30, AF145-30-11, AF145-30-22, AF185-30, AF185-30-11, AF185-30-22, Made in China
cUL Certificate
cULus Certificate, Contactor, A145...A185, AX185...AX205
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AF145, AF185, AF145B...RT, AF185B...RT, Made in Sweden | CCC Declaration of Conformity, Contactor, AF145-30, AF145-30-11, AF145-30-22, AF185-30, AF185-30-11, AF185-30-22, Made in China
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - A(F)95...A(F)300, AM110...AM300, UA95...UA110, (T)AE95....(T)AE110
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
GL Certificate
GL_20261-04HH
LOVAG Certificate
SE-0105160
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
RMRS_12-03683-315
TÜV Certificate
MHM-EST-7.70017788e
Package Level 1 Units
box 1 piece
Package Level 1 Width
178 mm
Package Level 1 Depth / Length
232 mm
Package Level 1 Height
167 mm
Package Level 1 Gross Weight
3.6 kg
Package Level 1 EAN
7320500220177
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
E-Number (Norway)
4115269
E-Number (Sweden)
3228282
Feature: 3-pole main contacts with 3 NO NO main contacts and 1 NO + 1 NC auxiliary contact. Business Impact: Enables flexible motor control logic and safe interlocking, reducing wiring complexity and enabling more robust start/stop sequencing. Application: Ideal for motor starting, isolation, by-pass and distribution in automation lines.Feature: DC coil control with 20–60 V nominal operating voltage and defined coil consumption profiles. Business Impact: Supports energy-efficient operation with clear pull-in and holding characteristics, improving control reliability and reducing coil heat in cabinets. Application: Suitable for central control panels and remote-location coil supply in packaging and conveying systems.Feature: High insulation and switching ratings (main circuit up to 1000 V, UL/CSA and CE certifications). Business Impact: Enhances safety, simplifies regulatory compliance, and minimizes design derating in multi-voltage installations. Application: Widely applicable to European and North American machinery across diverse industries.Feature: Connection versatility (Main Circuit: Bar 24 mm²; Rigid Al-Cable 25–150 mm²; Rigid Cu-Cable 6–185 mm²; Auxiliary options for flexible conductors). Business Impact: Reduces installation time and improves contact reliability with a wide wiring window. Application: Fast integration into existing feeders and new builds alike.Feature: Protective and durability specs (IP20 coil terminals, IP00 main terminals, 5 million mechanical operations, 300 cycles/hour). Business Impact: Delivers long service life in workshop and plant floor environments, lowering maintenance frequency and lifecycle costs. Application: Heavy-use industrial environments with frequent start/stop cycles and temperature variation.
Get a Quick Quote for a ABB 1SFL477001R7211
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL477001R7211?
Enquire Now
FAQs
Yes. The main circuit accepts Bar 24 mm², rigid Al-Cable 1 x 25–150 mm², and rigid Cu-Cable 1 x 6–185 mm², providing flexible wiring options and reliable connections for motor feeders and power distribution in automated lines.
The coil operates DC 20–60 V. Coil consumption includes holding and pull-in characteristics: holding at max rated voltage is 12 VA for 50/60 Hz and 2 W for DC, while pull-in at max rated voltage is 430–500 VA depending on frequency and voltage. These specs support stable switching with predictable coil torque.
AC-1 ratings reach up to 180 A at 690 V (and up to 250 A at 690 V with 40–70 °C, depending on ambient). AC-3 ratings include 145 A at 415–500 V and up to 120 A at 690 V, with higher current available in some configurations. These values guide starter sizing for conveyors and pumps.
The product holds CE conformity and UL/CSA listings, along with CCC, CB, RINA, GL, BV, DNV GL and other certifications across several regions. This multi-label certification suite supports global deployments while meeting safety and environmental standards such as RoHS and WEEE requirements.
Installation benefits include a compact 111.5 mm width, 160 mm depth, and 196 mm height with Bar terminals and 18 N·m tightening torque, enabling neat panel layouts. Lifecycle advantages include 5 million mechanical cycles, IP20 coil terminals, IP00 main terminals, and wide operating temperature ranges, reducing maintenance downtime and extending equipment uptime.
