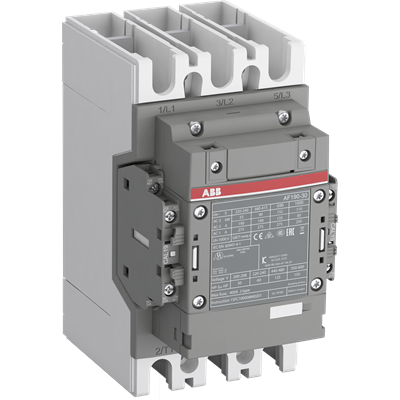

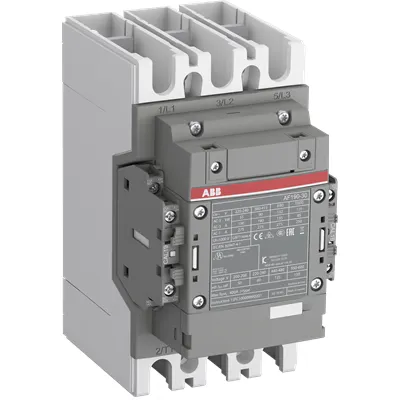

ABB AF190-30-22-42 Block Contactor - UL/CSA Certified
Part Number: 1SFL487002R4222
Quick Summary
AF190-30-22-42 Block Contactor is a three-pole switch designed to control motors up to 90 kW at 400 V AC (AC-3), and up to 125 hp at 480 V UL. This device combines robust AF technology for rapid operation with built-in surge protection to improve panel efficiency. In networks with voltage fluctuations, fast make-break action reduces electrical stress and extends motor life, while a compact block design simplifies installation and future expansion. The unit supports add-on auxiliary contact blocks and a wide range of accessories to tailor control logic. Certified for CE, UL/CSA, and UKCA, it aligns with RoHS and EPD declarations to support sustainable procurement and compliant manufacturing processes. For OEMs and panel builders, standardized sizing and easy integration translate to lower project risk and faster value realization.
Product Information
Extended Description
1SFL487002R4222 ABB: The AF190-30-22-42 is a 3 pole - 1000 V IEC or 600 V UL contactor with Main Circuit Bars, controlling motors up to 90 kW / 400 V AC (AC-3) or 125 hp / 480 V UL and switching power circuits up to 275 A (AC-1) or 250 A UL general use. Thanks to the AF technology, the contactor has a control voltage range (110-120 V 50/60 Hz),faster operation time, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536490099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
125 mm
Product Net Depth / Length
152 mm
Product Net Height
196 mm
Product Net Weight
2.4 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 275 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 250 A | (1000 V) 60 °C 225 A | (1000 V) 70 °C 185 A | (690 V) 40 °C 275 A | (690 V) 60 °C 250 A | (690 V) 70 °C 200 A
Rated Operational Current AC-3 (Ie)
(415 V) 60 °C 190 A | (440 V) 60 °C 190 A | (500 V) 60 °C 156 A | (690 V) 60 °C 135 A | (1000 V) 60 °C 85 A | (380 / 400 V) 60 °C 190 A | (220 / 230 / 240 V) 60 °C 190 A
Rated Operational Current AC-3e (Ie)
(415 V) 60 °C 190 A | (440 V) 60 °C 190 A | (500 V) 60 °C 135 A | (690 V) 60 °C 135 A | (1000 V) 60 °C 85 A | (380 / 400 V) 60 °C 190 A | (220 / 230 / 240 V) 60 °C 190 A
Rated Operational Power AC-3 (Pe)
(415 V) 90 kW | (440 V) 110 kW | (500 V) 110 kW | (690 V) 132 kW | (1000 V) 110 kW | (380 / 400 V) 90 kW | (220 / 230 / 240 V) 55 kW
Rated Operational Power AC-3e (Pe)
(415 V) 90 kW | (440 V) 110 kW | (500 V) 110 kW | (690 V) 132 kW | (1000 V) 110 kW | (380 / 400 V) 90 kW | (220 / 230 / 240 V) 55 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Breaking Capacity AC-3e
8.5 x Ie AC-3e
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Making Capacity AC-3e
12 x Ie AC-3e
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1520 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 275 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 621 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1900 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 878 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 3300 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 2200 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 300 cycles per hour | (AC-2 / AC-4) 150 cycles per hour | (AC-3) 300 cycles per hour
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz 110 ... 120 V | 60 Hz 110 ... 120 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 6 V·A | Holding at Max. Rated Control Circuit Voltage 50 Hz 2 W | Holding at Max. Rated Control Circuit Voltage 60 Hz 6 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 2 W | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 180 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 180 V·A
Power Loss
at Rated Operating Conditions AC-1 per Pole 15 W | at Rated Operating Conditions AC-3 per Pole 7 W
Operate Time
Between Coil De-energization and NO Contact Opening 15 ... 30 ms | Between Coil Energization and NO Contact Closing 20 ... 35 ms
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 1x 0.75 ... 2.5 mm² | Flexible 2x 0.75 ... 2.5 mm² | Solid 1x 1 ... 4 mm² | Solid 2x 1 ... 4 mm² | Stranded 1x 1 ... 4 mm² | Stranded 2x 1 ... 4 mm²
Connecting Capacity
Flexible 2 x 50 ... 95 mm² | Rigid Al-Cable 1 x 95 ... 185 mm² | Rigid Cu-Cable 1 x 6 ... 150 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm | Control Circuit 9 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Recommended Screw Driver
Main Circuit M8 | Control Circuit M3.5
Tightening Torque
Auxiliary Circuit 1 N·m | Cable Lug 18 N·m | Control Circuit 1 N·m | Main Circuit 14 ... 31 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 250 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 50 hp | (220 ... 240 V AC) Three Phase 60 hp | (440 ... 480 V AC) Three Phase 125 hp | (550 ... 600 V AC) Three Phase 150 hp
Tightening Torque UL/CSA
Auxiliary Circuit 9 in·lb | Control Circuit 9 in·lb | Main Circuit 301 in·lb
Full Load Amps Motor Use
(200 ... 208 V AC) Three Phase 150 A | (220 ... 240 V AC) Three Phase 154 A | (440 ... 480 V AC) Three Phase 156 A | (550 ... 600 V AC) Three Phase 144 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)116(B)-**(RT) to AF(S)205(B)-**(RT)
Environmental Product Declaration - EPD
Environmental Product Declaration, AF190-AF205 (SE) Contactors
Improved Energy Efficiency for Customers
Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 79.2 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 35 %
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF190 - AF370
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116...AF370
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
UL Certificate
cULus Certificate, Contactor, AF190-30, AF205-30, AFS190-30, AFS205-30
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Depth / Length
258 mm
Package Level 1 Height
235 mm
Package Level 1 Gross Weight
3 kg
Package Level 1 EAN
7320500560921
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Feature AF technology provides faster operation and lower energy consumption, delivering a tangible business impact through reduced panel heat and energy bills. This supports applications in demanding motor control where efficiency and reliability matter, such as pumps, fans, and conveyors. Application: motor starters enjoy improved energy performance and quicker fault isolation, helping plants meet energy targets and reliability SLAs. Feature Built-in surge protection enhances system resilience by limiting overvoltage stress on drives and cables, reducing downtime and maintenance costs. Application: DC bus and motor feed lines in harsh environments benefit from improved protection and longer service life. Feature Three-pole main contacts with 3 NO and 2 NO/2 NC auxiliary contacts enable complex interlocking and control schemes, streamlining start/stop sequencing and fault signaling. Business impact: simpler wiring, fewer external relays, and faster commissioning. Application: control logic for multi-motor starters and PLC integrations. Feature Coil voltage 110–120 V at 50/60 Hz with defined pull-in and release times, enabling seamless integration with common control circuits and minimizing interface issues. Business impact: predictability in coil response and reduced control panel cross-talk. Application: centralized control cabinets and machine tacts requiring dependable coil behavior. Feature Compact block-type design with accessible terminals and compatibility with add-on accessories, delivering installation flexibility and scalable upgrades. Application: panel builders gain modularity for future expansions and reduced change orders. Feature IP20 coil terminals and IP00 main terminals provide workable environmental protection in typical panel enclosures, supporting standard factory layouts. Application: safe, code-compliant installations with straightforward maintenance and troubleshooting; compatible with standard screw drivers and terminal blocks. Feature Comprehensive certifications including CE, UL/CSA, and UKCA, plus RoHS and EPD declarations, backing regulatory compliance and sustainability goals. Application: procurement teams can source a globally recognized motor control solution with clear environmental data and lifecycle impact.
Get a Quick Quote for a ABB 1SFL487002R4222
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL487002R4222?
Enquire Now
FAQs
The AF190-30-22-42 is a 3P block contactor designed for standard panel mounting with main circuit bars and coil terminals rated IP20. It supports flexible and rigid wiring for auxiliary circuits (0.75–2.5 mm² ferrule or solid 1–4 mm²) and accepts add-on auxiliary contact blocks to tailor interlock and signaling schemes. For installation, use the recommended M8 screws for main circuit connections and follow the tightening torques (Main Circuit 14–31 N·m; Auxiliary Circuit 1 N·m) to ensure reliable, code-compliant assembly and long service life in industrial environments.
The AF190-30-22-42 provides AC-3 and AC-3e ratings suitable for motor starting and power switching. At 415–690 V, AC-3 current is 190 A (approximate across various voltages), with AC-1 ratings up to 250 A at 1000 V depending on temperature and voltage. The device supports high breaking capacity and motor protection in line with IEC 60947-4-1 standards. For design, refer to specific I_e values at target voltages and ambient temperatures to ensure the selected contactor meets your motor’s full-load current and surge requirements.
Yes, the AF190-30-22-42 carries CE and UKCA declarations of conformity and UL/cUL certificates for universal use in North American and other markets. It also aligns with RoHS II requirements and has an Environmental Product Declaration (EPD) for AF190–AF205 models. These certifications support compliance in regulated industries and facilitate global procurement, installation in safety systems, and responsibility in eco-conscious projects.
AF technology yields faster operation and reduced panel energy consumption, improving overall machine efficiency and lowering energy-related operating costs. With a mechanical durability of up to 5 million cycles and a robust 1000 V insulation rating, maintenance intervals can be extended, and downtime minimized. The integrated surge protection reduces wear on drives and cables, contributing to a lower total cost of ownership over the equipment lifecycle, particularly in high-cycle or demanding motor-drive applications.
The AF190 family supports add-on auxiliary contact blocks and a wide range of accessories to customize control logic, interlocking, and signaling for motor control schemes. Compatibility includes flexible connection options for auxiliary circuits and main circuit extensions, enabling engineers to tailor the contactor to specific machine control architectures and PLC interfaces, while preserving the compact footprint and streamlined wiring that reduce installation and commissioning time.
