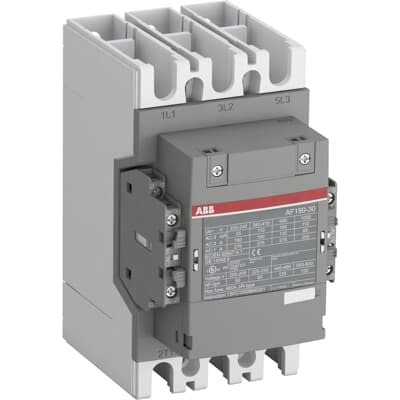

ABB AF190B-30-22RT-14 Contactor - UL/CSA Certified
Part Number: 1SFL487062R1422
Quick Summary
AF190B-30-22RT-14 Contactor is a 3-pole motor starter used to control heavy industrial motors in drive systems. In real-world panels, voltage fluctuations and surges can cause nuisance trips and wasted energy, so a robust solution is essential. This ABB device is CE, UL/CSA, and UR certified, featuring AF technology with a wide control voltage range and built-in surge protection to ensure reliable operation in unstable networks. Compatible with add-on auxiliary contact blocks and a broad accessory ecosystem, it offers scalable, energy-efficient motor control for diverse industrial applications.
Product Information
Extended Description
1SFL487062R1422 ABB: The AF190B-30-22RT-14 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and ring tongue ferrules, controlling motors up to 90 kW / 400 V AC (AC-3) or 125 hp / 480 V UL and switching power circuits up to 275 A (AC-1) or 250 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz ), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
105 mm
Product Net Depth / Length
153 mm
Product Net Height
196 mm
Product Net Weight
2.4 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 250 A | (1000 V) 55 °C 225 A | (1000 V) 60 °C 225 A | (1000 V) 70 °C 185 A | (690 V) 40 °C 275 A | (690 V) 55 °C 250 A | (690 V) 60 °C 250 A | (690 V) 70 °C 200 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 190 A | (440 V) 55 °C 190 A | (500 V) 55 °C 135 A | (690 V) 55 °C 135 A | (1000 V) 55 °C 85 A | (380 / 400 V) 55 °C 190 A | (220 / 230 / 240 V) 55 °C 190 A
Rated Operational Current AC-3e (Ie)
(415 V) 60 °C 190 A | (440 V) 60 °C 190 A | (500 V) 60 °C 135 A | (690 V) 60 °C 135 A | (1000 V) 60 °C 85 A | (380 / 400 V) 60 °C 190 A | (220 / 230 / 240 V) 60 °C 190 A
Rated Operational Current DC-1 (Ie)
(100 V) 1 Pole, 40 °C 250 A | (100 V) 1 Pole, 60 °C 250 A | (100 V) 1 Pole, 70 °C 200 A | (110 V) 2 Poles in Series, 40 °C 250 A | (110 V) 2 Poles in Series, 60 °C 250 A | (110 V) 2 Poles in Series, 70 °C 200 A | (110 V) 3 Poles in Series, 40 °C 250 A | (110 V) 3 Poles in Series, 60 °C 250 A | (110 V) 3 Poles in Series, 70 °C 200 A | (175 V) 2 Poles in Series, 40 °C 250 A | (175 V) 2 Poles in Series, 60 °C 250 A | (175 V) 2 Poles in Series, 70 °C 200 A | (200 V) 2 Poles in Series, 40 °C 250 A | (200 V) 2 Poles in Series, 60 °C 250 A | (200 V) 2 Poles in Series, 70 °C 200 A | (220 V) 3 Poles in Series, 40 °C 250 A | (220 V) 3 Poles in Series, 60 °C 250 A | (220 V) 3 Poles in Series, 70 °C 200 A | (260 V) 3 Poles in Series, 40 °C 250 A | (260 V) 3 Poles in Series, 60 °C 250 A | (260 V) 3 Poles in Series, 70 °C 200 A | (300 V) 3 Poles in Series, 40 °C 250 A | (300 V) 3 Poles in Series, 60 °C 250 A | (300 V) 3 Poles in Series, 70 °C 200 A | (72 V) 1-Pole, 40 °C 250 A | (72 V) 1-Pole, 60 °C 250 A | (72 V) 1-Pole, 70 °C 200 A | (72 V) 2 Poles in Series, 40 °C 250 A | (72 V) 2 Poles in Series, 60 °C 250 A | (72 V) 2 Poles in Series, 70 °C 200 A | (72 V) 3 Poles in Series, 40 °C 250 A | (72 V) 3 Poles in Series, 60 °C 250 A | (72 V) 3 Poles in Series, 70 °C 200 A | (90 V) 1 Pole, 40 °C 250 A | (90 V) 1 Pole, 60 °C 250 A | (90 V) 1 Pole, 70 °C 200 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 250 A | (110 V) 2 Poles in Series, 60 °C 250 A | (110 V) 2 Poles in Series, 70 °C 200 A | (110 V) 3 Poles in Series, 40 °C 250 A | (110 V) 3 Poles in Series, 60 °C 250 A | (110 V) 3 Poles in Series, 70 °C 200 A | (220 V) 3 Poles in Series, 40 °C 250 A | (220 V) 3 Poles in Series, 60 °C 250 A | (220 V) 3 Poles in Series, 70 °C 200 A | (72 V) 2 Poles in Series, 40 °C 250 A | (72 V) 2 Poles in Series, 60 °C 250 A | (72 V) 2 Poles in Series, 70 °C 200 A | (72 V) 3 Poles in Series, 40 °C 250 A | (72 V) 3 Poles in Series, 60 °C 250 A | (72 V) 3 Poles in Series, 70 °C 200 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 250 A | (110 V) 2 Poles in Series, 60 °C 250 A | (110 V) 2 Poles in Series, 70 °C 200 A | (110 V) 3 Poles in Series, 40 °C 250 A | (110 V) 3 Poles in Series, 60 °C 250 A | (110 V) 3 Poles in Series, 70 °C 200 A | (220 V) 3 Poles in Series, 40 °C 250 A | (220 V) 3 Poles in Series, 60 °C 250 A | (220 V) 3 Poles in Series, 70 °C 200 A | (72 V) 2 Poles in Series, 40 °C 250 A | (72 V) 2 Poles in Series, 60 °C 250 A | (72 V) 2 Poles in Series, 70 °C 200 A | (72 V) 3 Poles in Series, 40 °C 250 A | (72 V) 3 Poles in Series, 60 °C 250 A | (72 V) 3 Poles in Series, 70 °C 200 A
Rated Operational Power AC-3 (Pe)
(415 V) 90 kW | (440 V) 110 kW | (500 V) 110 kW | (690 V) 132 kW | (1000 V) 110 kW | (380 / 400 V) 90 kW | (220 / 230 / 240 V) 55 kW
Rated Operational Power AC-3e (Pe)
(415 V) 90 kW | (440 V) 110 kW | (500 V) 110 kW | (690 V) 132 kW | (1000 V) 110 kW | (380 / 400 V) 90 kW | (220 / 230 / 240 V) 55 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Breaking Capacity AC-3e
8.5 x Ie AC-3e
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Making Capacity AC-3e
12 x Ie AC-3e
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1520 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 275 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 621 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1900 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 878 A
Rated Insulation Voltage (Ui)
acc. to UL/CSA 1000 V
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 250 ... 500 V | DC Operation 250 ... 500 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 16.1 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 16.1 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 260 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 260 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 230 W
Power Loss
7 W | at Rated Operating Conditions per Pole 7 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 250 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 50 hp | (220 ... 240 V AC) Three Phase 60 hp | (440 ... 480 V AC) Three Phase 125 hp | (550 ... 600 V AC) Three Phase 150 hp
Full Load Amps Motor Use
(200 ... 208 V AC) Three Phase 150 A | (220 ... 240 V AC) Three Phase 154 A | (440 ... 480 V AC) Three Phase 156 A | (550 ... 600 V AC) Three Phase 144 A
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)116(B)-**(RT) to AF(S)205(B)-**(RT)
Environmental Product Declaration - EPD
Environmental Product Declaration, AF190-AF205 (SE) Contactors
Improved Energy Efficiency for Customers
Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 79.2 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 35 %
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF190 - AF370
CB Certificate
SE-82315
CQC Certificate
CQC Certificate, AC Contactor, AF190-*-*-*, AF205-*-*-*, AF190B-*-*-*, AF205B-*-*-*, AFS190-30-*-*, AFS205-30-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF190-*-*-*, AF205-*-*-*, AF190B-*-*-*, AF205B-*-*-*, AFS190-30-*-*, AFS205-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116B...RT to AF370B...RT
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A - Rail application
EAC Certificate
9AKK107046A8618
UR Certificate
cURus certificate, Contactor, AF190B..RT - AF205B-30...RT
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Depth / Length
258 mm
Package Level 1 Height
235 mm
Package Level 1 Gross Weight
3 kg
Package Level 1 EAN
7320500510186
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: AF technology provides a wide control voltage range of 250–500 V for both AC and DC operation. Benefit: This reduces wiring complexity and panel energy consumption while tolerating supply variations, delivering predictable start/stop behavior in motor control applications. Application: Drive panels in packaging lines and conveyors where control power can fluctuate across shifts. Feature: Built-in surge protection guards the main load and control circuits from transients, extending component life and reducing downtime. Benefit: Lower maintenance costs and higher plant availability in high-dV/dt environments. Application: Heavy-duty conveyors and pumps in mining or process industries where electrical noise is common. Feature: 3 main NO contacts plus 2 auxiliary NO and 2 auxiliary NC contacts. Benefit: Flexible interlocking, feedback, and control circuits without extra hardware. Application: Motor control with interlock logic and remote signaling in multi-motor stations. Feature: Block-type, modular design with easy add-on auxiliary contact blocks and accessories. Benefit: Scales with evolving automation needs, reduces engineering time, and simplifies spare parts management. Application: New line installations and retrofits across automotive, food & beverage, and material handling sectors. Feature: High-temperature and voltage ratings with AC-1, AC-3 and AC-3e current paths, plus 110 kW rated power at 1000 V. Benefit: Supports large motors with reliable switching, enabling energy-efficient drive systems. Application: Industrial fans, pumps, and compressors where powerful, controlled motor starting is required. Feature: Mechanical durability rated at 5 million cycles and a maximum switching frequency of 300 cycles per hour. Benefit: Long service life and predictable maintenance planning in high-demand environments. Application: High-duty-cycle packaging lines and continuous-flow conveyors.
Get a Quick Quote for a ABB 1SFL487062R1422
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL487062R1422?
Enquire Now
FAQs
This model uses main circuit bars for connections, so plan panel layout to accommodate bar terminals and required clearance. The 3P configuration with 2 NO and 2 NC auxiliary contacts supports flexible wiring for interlocking and signaling. Ensure compatible add-on auxiliary contact blocks are available and that mounting aligns with standard ABB accessory kits to maintain reliability and serviceability.
The AF190B-30-22RT-14 coil operates from 250 to 500 V, available for both 50/60 Hz AC and DC control. Holding current is specified at 16.1 V·A, while pull-in values reach up to 260 V·A depending on frequency. This wide range supports varied control supplies without compromising switching performance or reliability.
Yes. The contactor provides AC-3 rated performance up to 110 kW at 1000 V, with 132 kW available at 690 V in the AC-3 path. For practical installations, a 90 kW motor at common industrial voltages (e.g., 380–415 V) is well within the device’s AC-3 capability, delivering reliable starting and switching with robust protection.
This ABB contactor carries CE and UL/CSA certifications, with UR, CCC, UKCA, and EAC documentation as applicable. It aligns with IEC/EN 60947-1 and 60947-4-1 standards, and ABB provides corresponding conformity declarations, ensuring compliance for global installations and formal qualification for safety and performance in diverse markets.
Built-in surge protection mitigates transient overcurrents, reducing wear on contacts and extending life. The wide control voltage range minimizes panel power losses by tolerating supply variations, decreasing energyefficiency costs over time. Together, these features lower maintenance intervals, reduce downtime, and improve overall equipment effectiveness (OEE) in continuous-production environments.
