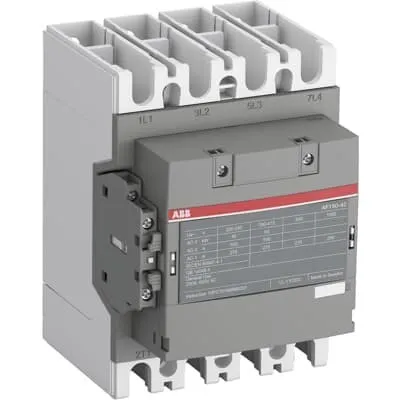

ABB 1SFL487263R1322 Block Contactor - UL/CSA 250A
Part Number: 1SFL487263R1322
Quick Summary
ABB Block Contactor 1SFL487263R1322 is a 4-pole motor starter designed for demanding industrial motor control. In many automation panels, voltage swings and energy waste erode performance and increase operating costs; this device mitigates that by leveraging AF technology with a wide control voltage range and built-in surge protection. CE and UL/CSA approvals ensure broad compliance, while UKCA and RoHS declarations support modern global deployments. The product also aligns with ABB EcoSolutions goals, delivering reliability, long life, and lower lifecycle costs. For engineers and procurement teams, this combination translates into easier sourcing, consistent performance, and a clear path to energy-efficient propulsion of industrial processes.
Product Information
Extended Description
1SFL487263R1322 ABB: The AF190B-40-22-13 is a 4 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 90 kW / 400 V AC (AC-3) / and switching power circuits up to 275 A (AC-1) or 230 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
140 mm
Product Net Depth / Length
153 mm
Product Net Height
196 mm
Product Net Weight
3.3 kg
Number of Main Contacts NO
4
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
4P
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 250 A | (1000 V) 55 °C 225 A | (1000 V) 60 °C 225 A | (1000 V) 70 °C 185 A | (690 V) 40 °C 275 A | (690 V) 55 °C 250 A | (690 V) 60 °C 250 A | (690 V) 70 °C 200 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 190 A | (440 V) 55 °C 190 A | (380 / 400 V) 55 °C 190 A | (220 / 230 / 240 V) 55 °C 190 A
Rated Operational Current DC-1 (Ie)
(100 V) 1 Pole, 40 °C 250 A | (100 V) 1 Pole, 60 °C 250 A | (100 V) 1 Pole, 70 °C 200 A | (110 V) 2 Poles in Series, 40 °C 250 A | (110 V) 2 Poles in Series, 60 °C 250 A | (110 V) 2 Poles in Series, 70 °C 200 A | (110 V) 3 Poles in Series, 40 °C 250 A | (110 V) 3 Poles in Series, 60 °C 250 A | (110 V) 3 Poles in Series, 70 °C 200 A | (175 V) 2 Poles in Series, 40 °C 250 A | (175 V) 2 Poles in Series, 60 °C 250 A | (175 V) 2 Poles in Series, 70 °C 200 A | (200 V) 2 Poles in Series, 40 °C 250 A | (200 V) 2 Poles in Series, 60 °C 250 A | (200 V) 2 Poles in Series, 70 °C 200 A | (220 V) 3 Poles in Series, 40 °C 250 A | (220 V) 3 Poles in Series, 60 °C 250 A | (220 V) 3 Poles in Series, 70 °C 200 A | (260 V) 3 Poles in Series, 40 °C 250 A | (260 V) 3 Poles in Series, 60 °C 250 A | (260 V) 3 Poles in Series, 70 °C 200 A | (300 V) 3 Poles in Series, 40 °C 250 A | (300 V) 3 Poles in Series, 60 °C 250 A | (300 V) 3 Poles in Series, 70 °C 200 A | (350 V) 4 Poles in Series, 40 °C 250 A | (350 V) 4 Poles in Series, 60 °C 250 A | (350 V) 4 Poles in Series, 70 °C 200 A | (400 V) 4 Poles in Series, 40 °C 250 A | (400 V) 4 Poles in Series, 60 °C 250 A | (400 V) 4 Poles in Series, 70 °C 200 A | (72 V) 1-Pole, 40 °C 250 A | (72 V) 1-Pole, 60 °C 250 A | (72 V) 1-Pole, 70 °C 200 A | (72 V) 2 Poles in Series, 40 °C 250 A | (72 V) 2 Poles in Series, 60 °C 250 A | (72 V) 2 Poles in Series, 70 °C 200 A | (72 V) 3 Poles in Series, 40 °C 250 A | (72 V) 3 Poles in Series, 60 °C 250 A | (72 V) 3 Poles in Series, 70 °C 200 A | (90 V) 1 Pole, 40 °C 250 A | (90 V) 1 Pole, 60 °C 250 A | (90 V) 1 Pole, 70 °C 200 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 250 A | (110 V) 2 Poles in Series, 60 °C 250 A | (110 V) 2 Poles in Series, 70 °C 200 A | (110 V) 3 Poles in Series, 40 °C 250 A | (110 V) 3 Poles in Series, 60 °C 250 A | (110 V) 3 Poles in Series, 70 °C 200 A | (220 V) 3 Poles in Series, 40 °C 250 A | (220 V) 3 Poles in Series, 60 °C 250 A | (220 V) 3 Poles in Series, 70 °C 200 A | (72 V) 2 Poles in Series, 40 °C 250 A | (72 V) 2 Poles in Series, 60 °C 250 A | (72 V) 2 Poles in Series, 70 °C 200 A | (72 V) 3 Poles in Series, 40 °C 250 A | (72 V) 3 Poles in Series, 60 °C 250 A | (72 V) 3 Poles in Series, 70 °C 200 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 250 A | (110 V) 2 Poles in Series, 60 °C 250 A | (110 V) 2 Poles in Series, 70 °C 200 A | (110 V) 3 Poles in Series, 40 °C 250 A | (110 V) 3 Poles in Series, 60 °C 250 A | (110 V) 3 Poles in Series, 70 °C 200 A | (220 V) 3 Poles in Series, 40 °C 250 A | (220 V) 3 Poles in Series, 60 °C 250 A | (220 V) 3 Poles in Series, 70 °C 200 A | (72 V) 2 Poles in Series, 40 °C 250 A | (72 V) 2 Poles in Series, 60 °C 250 A | (72 V) 2 Poles in Series, 70 °C 200 A | (72 V) 3 Poles in Series, 40 °C 250 A | (72 V) 3 Poles in Series, 60 °C 250 A | (72 V) 3 Poles in Series, 70 °C 200 A
Rated Operational Power AC-3 (Pe)
(415 V) 90 kW | (440 V) 110 kW | (500 V) 110 kW | (690 V) 132 kW | (1000 V) 110 kW | (380 / 400 V) 90 kW | (220 / 230 / 240 V) 55 kW
Rated Operational Power AC-3e (Pe)
(415 V) 90 kW | (440 V) 110 kW | (500 V) 110 kW | (690 V) 132 kW | (1000 V) 110 kW | (380 / 400 V) 90 kW | (220 / 230 / 240 V) 55 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1520 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 275 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 621 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1900 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 878 A
Rated Insulation Voltage (Ui)
acc. to UL/CSA 1000 V
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 7 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 7 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 220 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 220 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 190 W
Power Loss
15 W | at Rated Operating Conditions per Pole 15 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 250 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 20 Hp | (200 V AC) Three Phase 50 hp | (208 V AC) Three Phase 50 hp | (220 ... 240 V AC) Three Phase 25 Hp | (220 ... 240 V AC) Three Phase 60 hp | (440 ... 480 V AC) Three Phase 60 Hp | (440 ... 480 V AC) Three Phase 125 hp | (550 ... 600 V AC) Three Phase 75 Hp | (550 ... 600 V AC) Three Phase 150 hp
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)116(B)-**(RT) to AF(S)205(B)-**(RT)
Environmental Product Declaration - EPD
Environmental Product Declaration, AF190-AF205 (SE) Contactors
Improved Energy Efficiency for Customers
Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 79.2 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 35 %
CB Certificate
SEMKO_SE-77322
CQC Certificate
CQC Certificate, AC Contactor, AF190-*-*-*, AF205-*-*-*, AF190B-*-*-*, AF205B-*-*-*, AFS190-30-*-*, AFS205-30-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF190-*-*-*, AF205-*-*-*, AF190B-*-*-*, AF205B-*-*-*, AFS190-30-*-*, AFS205-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116B...RT to AF370B...RT
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A - Rail application
EAC Certificate
9AKK107046A8618
UL Certificate
cULus Certificate, Contactor, AF190-40, AF205-40 (4-pole)
Package Level 1 Units
box 1 piece
Package Level 1 Width
166 mm
Package Level 1 Depth / Length
238 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
3.9 kg
Package Level 1 EAN
7320500511244
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
E-Number (Sweden)
3210470
Feature → Business Impact → Application: Four-pole main contacts with 4 NO and 0 NC, plus 2 NO auxiliary and 2 NC auxiliary contacts, enabling compact yet versatile motor control with expanded wiring options. This reduces cabinet space and simplifies control wiring, delivering lower installation time and cost in large-panel applications. Feature → Wide control voltage range (100-250 V AC/DC, 50/60 Hz) minimizes panel energy fluctuations and reduces panel energy consumption, improving reliability in unstable networks and lowering energy footprint in conveyors and pump stations. Feature → Built-in surge protection and AF technology enhance switching reliability and lifetime, reducing unplanned downtime and maintenance costs in high-load machines like presses and extruders. Feature → 4-pole design supports motors up to 90 kW at 400 V AC (AC-3) with ratings up to 275 A at 690 V, ensuring compatibility with common plant motors and enabling scalable deployments in growing automation lines. Feature → Pre-mounted auxiliary contacts and standard ferrules streamline installation and future expansion, enabling quick add-on blocks for fault-tolerant control in automation cells. Feature → Mechanical durability rated at 5 million operations and a maximum switching frequency of 300 cycles per hour, delivering predictable lifecycle costs for continuous operation equipment in manufacturing lines. Feature → Broadly certified (CE, UL/CSA, UKCA, RoHS) and supported by ABB documentation, ensuring compliance across regions and simplifying cross-border procurement and audits. Feature → Compact block design and the option to extend with add-on contact blocks support flexible machine layouts and easy retrofits in existing control cabinets, reducing downtime during upgrades and expansions.
