ABB 1SFL501074R8011 Contactor - UL Certified
Part Number: 1SFL501074R8011
Quick Summary
The ABB 1SFL501074R8011 Contactor is designed to switch motor circuits in industrial automation applications. Engineers often face tradeoffs between protection, reliability, and installation footprint; this unit mitigates those by delivering high current capability in a compact envelope. It complies with CE, UL, and RoHS requirements, supporting 690 V insulation and robust AC-3 performance for safe, regulatory-compliant motor starting in a wide range of plants. CAD-friendly data, a 3-pole design, and 3 NO main contacts plus 1 NO and 1 NC auxiliary contact streamline commissioning, maintenance, and spare parts planning, delivering measurable improvements in uptime and lifecycle cost.
Product Information
Extended Description

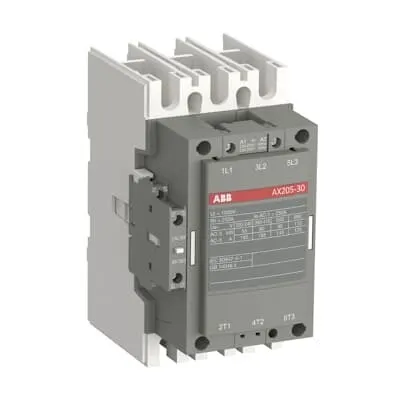

1SFL501074R8011 ABB: AX205-30-11-80 Contactor
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
AX 185~205A instructions
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
111.5 mm
Product Net Depth / Length
162.3 mm
Product Net Height
196 mm
Product Net Weight
3.2 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 250 A
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 275 A | (690 V) 55 °C 250 A | (690 V) 70 °C 180 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 205 A | (440 V) 55 °C 185 A | (500 V) 55 °C 170 A | (690 V) 55 °C 170 A | (380 / 400 V) 55 °C 205 A | (220 / 230 / 240 V) 55 °C 205 A
Rated Operational Power AC-3 (Pe)
(415 V) 110 kW | (440 V) 90 kW | (500 V) 110 kW | (690 V) 132 kW | (380 / 400 V) 110 kW | (220 / 230 / 240 V) 59 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1200 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 280 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 600 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 1800 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 800 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (Uimp)
8 kV
Maximum Electrical Switching Frequency
300 cycles per hour
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
3600 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 220 ... 230 V | 60 Hz 230 ... 240 V
Power Loss
at Rated Operating Conditions per Pole 5 W
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CQC Certificate
CQC Certificate, Contactor, AX185, AX205, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AX185, AX205, Made in China
Declaration of Conformity - CE
CE Declaration of conformity - Contactor - AX95...AX370
UL Certificate
cULus Certificate, Contactor, A145...A185, AX185...AX205
Package Level 1 Units
box 1 piece
Package Level 1 Width
180 mm
Package Level 1 Depth / Length
245 mm
Package Level 1 Height
175 mm
Package Level 1 Gross Weight
3.8 kg
Package Level 1 EAN
7320500500323
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature → Business Impact → Application: 3P Block Contactor with 3 NO main contacts and 1 NO + 1 NC auxiliary contact provides robust motor control with compact form factor, reducing panel size and wiring complexity for machine tools and conveyors. This improves installation efficiency and creates space for future expansions. Application: use in centralized motor control centers where space is at a premium and high switching reliability is required in harsh environments. Feature → Business Impact → Application: Rated Operational Voltage up to 1000 V main circuit and 690 V insulation ensures safe operation across global installations, lowering insulation failures and enabling cross-border projects. Application: suitable for multi-site automotive assembly lines or packaging machinery with diverse voltage standards. Feature → Business Impact → Application: Coil operating limits and dual frequency compatibility (50/60 Hz, 220–240 V) support seamless integration with existing control circuits, reducing wiring changes and retrofit costs. Application: worldwide plant modernization and retrofits. Feature → Business Impact → Application: 5 million mechanical cycles of durability and 3, 4, 5 million potential operations translate to longer service life and lower replacement frequency. Application: long-running conveyors and pump systems with high duty cycles. Feature → Business Impact → Application: High short-time withstand currents (up to 1800 A for short durations) protect upstream breakers and motors during startup transients, reducing nuisance tripping. Application: critical gear motors and fans in demanding processes. Feature → Business Impact → Application: Comprehensive compliance package including CE, UL, RoHS, REACH, TSCA, and WEEE support reduces regulatory risk and accelerates procurement approvals. Application: OEMs seeking certified hardware for medical, packaging, or material handling lines. Feature → Business Impact → Application: CAD dimensional drawings and data sheets (2D/3D CAD) enable faster engineering, accurate panel layouts, and seamless BIM/CAD workflows. Application: new machine builds and panel shop integration, minimizing costly rework.
