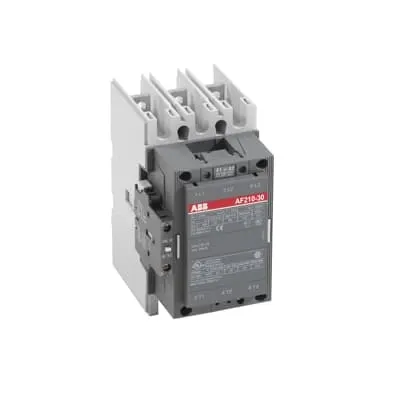

ABB 1SFL517001R7000 Block Contactor - CE Certified
Part Number: 1SFL517001R7000
Quick Summary
Block Contactor ABB 1SFL517001R7000 delivers reliable motor control for demanding industrial automation. Engineers often confront coil voltage mismatches, overheating, and frequent contact wear in harsh environments, leading to downtime and maintenance costs. This device carries CE conformity, plus ABS and BV certifications, underscoring safety, marine reliability, and structural integrity for heavy-duty applications. With 3P operation and robust AC-3 switching, it integrates smoothly with standard PLCs and drives, simplifying wiring and control schemes. The combination of 100–250 V control across AC, DC, and 60 Hz options ensures flexible deployment in diverse plants, while optimized coil consumption and low power loss support energy efficiency and cooler operation in continuous-running duties.
Product Information
Extended Description
1SFL517001R7000 ABB: AF210-30-00 100-250V 50/60Hz / DC Contactor
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Replacement Product ID (NEW)
1SFL527002R1300
Instructions and Manuals
N/A
Product Net Width
140 mm
Product Net Depth / Length
180.5 mm
Product Net Height
227 mm
Product Net Weight
5.05 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
0
Number of Auxiliary Contacts NC
0
Number of Poles
3P
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 350 A | (690 V) 55 °C 300 A | (690 V) 70 °C 240 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 210 A | (440 V) 55 °C 210 A | (500 V) 55 °C 210 A | (690 V) 55 °C 210 A | (380 / 400 V) 55 °C 210 A | (220 / 230 / 240 V) 55 °C 210
Rated Operational Power AC-3 (Pe)
(415 V) 110 kW | (440 V) 110 kW | (500 V) 132 kW | (690 V) 160 kW | (380 / 400 V) 110 kW | (220 / 230 / 240 V) 59 kW
Maximum Electrical Switching Frequency
300 cycles per hour
Mechanical Durability
5 million
Rated Control Circuit Voltage (Uc)
50 Hz 100...250 V | 60 Hz 100...250 V | DC Operation 100...250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 10 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 10 V·A | Holding at Max. Rated Control Circuit Voltage DC 2 W | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 470 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 470 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 500 W
Power Loss
18 W | at Rated Operating Conditions per Pole 9 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Horsepower Rating UL/CSA
(200 V AC) Three Phase 60 hp | (208 V AC) Three Phase 60 hp | (220 ... 240 V AC) Three Phase 75 hp | (440 ... 480 V AC) Three Phase 150 hp | (550 ... 600 V AC) Three Phase 200 hp
RoHS Information
CE Declaration of Conformity - Contactor - A(F)95...A(F)300, AM110...AM300, UA95...UA110, (T)AE95....(T)AE110
RoHS Status
Following EU Directive 2011/65/EU
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SEMKO_SE-69491A1
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, Contactor, AF210, AF210B…RT, AF260, AF260B…RT, AF300, AF300B…RT, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AF210, AF210B…RT, AF260, AF260B…RT, AF300, AF300B…RT, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - A(F)95...A(F)300, AM110...AM300, UA95...UA110, (T)AE95....(T)AE110
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
Package Level 1 Units
box 1 piece
Package Level 1 Width
203 mm
Package Level 1 Depth / Length
245 mm
Package Level 1 Height
188 mm
Package Level 1 Gross Weight
5.75 kg
Package Level 1 EAN
7320500381113
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Three-pole construction with three main NO contacts and no NC contacts provides straightforward, high-reliability motor control for 3-phase loads, reducing wiring complexity and improving diagnostic clarity. Business impact: lower mis-wiring risk and fewer fault sources, enabling faster commissioning and less downtime. Application: ideal for conveyors, pumps, and machine tools where AC-3 switching and consistent current handling are critical. The device supports 100–250 V control across AC, 60 Hz, and DC operation, delivering flexible installation and reliable actuation even in variable supply environments. Coil consumption is optimized for holding and pull-in operations, contributing to cooler operation and energy efficiency in continuous-duty cycles. With 3P contacts and robust mechanical durability (up to 5 million cycles), customers gain extended service intervals and reduced maintenance costs. Compatibility with standard drives and PLCs simplifies integration into existing automation architectures. Addressing objections, the design minimizes heat rise at rated currents and offers predictable performance across a wide voltage window, ensuring reliable operation in mixed-voltage facilities. This translates to lower total cost of ownership and improved overall plant reliability.
Get a Quick Quote for a ABB 1SFL517001R7000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL517001R7000?
Enquire Now
FAQs
The coil control voltage spans 100–250 V across 50 Hz, 60 Hz, and DC operation. This wide window supports flexible integration with diverse control circuits and PLCs, reducing the need for additional adapters and ensuring reliable coil pull-in across common industrial mains and DC supplies.
This unit features a three-pole (3P) arrangement with three NO main contacts and zero NC contacts. The 3P configuration provides robust three-phase switching suitable for motor control, while the absence of NC contacts simplifies wiring and reduces potential contact wear in normal operation.
The device is rated for AC-3 operation at 210 A across multiple voltages, including 415 V, 440 V, 500 V, 690 V, and 380/400 V, 55°C, with 210 A also specified for 220/230/240 V variants. This performance supports reliable motor starting and switching for common industrial motors up to the 210 A class.
Key certifications include CE conformity for European safety compliance, ABS and BV for marine and heavy-duty reliability, and additional declarations and certifications (CCS, CQC, RINA, DNV GL) as listed in the product data. These certifications signal validated safety, mechanical robustness, and regulatory alignment, which reduce compliance risk and support procurement approvals across regulated industries.
With main circuit bars as the terminal type, 3P configuration, and a compact footprint, installation is straightforward and compatible with standard enclosures and push-in wiring schemes. Coil consumption is optimized (holding and pull-in values) to minimize heat generation, and the device offers high mechanical durability (up to 5 million cycles) to lower maintenance頻 downtime and extend service intervals in demanding lines.
