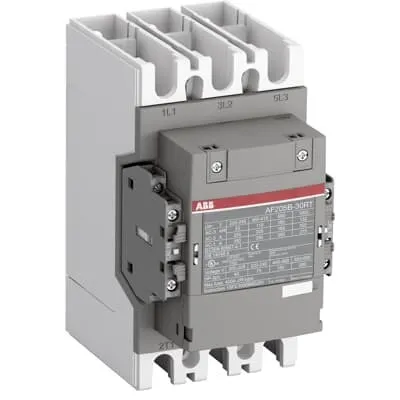

ABB 1SFL527062R1322 Contactor - AF Technology, 1000 V IEC
Part Number: 1SFL527062R1322
Quick Summary
ABB 1SFL527062R1322 Contactor is a three-pole motor controller designed to switch motors up to 110 kW at 400 V AC. In practical panel installations, voltage fluctuations and transient spikes can cause nuisance trips and wasted energy; AF technology accommodates a wide control voltage range and built-in surge protection to keep operations stable. This device carries CE, UKCA, UL/cURus certifications and RoHS/REACH declarations, supporting global compliance. The compact block design and support for add-on auxiliary contact blocks help reduce panel footprint and engineering time, delivering reliable, scalable control for industrial automation. Designed for easy integration with ABB's protection and control ecosystem, it offers predictable performance and lower total cost of ownership.
Product Information
Extended Description
1SFL527062R1322 ABB: The AF205B-30-22RT-13 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and ring tongue ferrules, controlling motors up to 110 kW / 400 V AC (AC-3) or 150 hp / 480 V UL and switching power circuits up to 350 A (AC-1) or 300 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
105 mm
Product Net Depth / Length
152 mm
Product Net Height
196 mm
Product Net Weight
2.4 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 275 A | (1000 V) 60 °C 250 A | (1000 V) 70 °C 200 A | (690 V) 40 °C 350 A | (690 V) 60 °C 300 A | (690 V) 70 °C 240 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 205 A | (440 V) 55 °C 205 A | (500 V) 55 °C 165 A | (690 V) 55 °C 165 A | (1000 V) 55 °C 100 A | (380 / 400 V) 55 °C 205 A | (220 / 230 / 240 V) 55 °C 205 A
Rated Operational Current DC-1 (Ie)
(100 V) 1 Pole, 40 °C 350 A | (100 V) 1 Pole, 60 °C 300 A | (100 V) 1 Pole, 70 °C 240 A | (110 V) 2 Poles in Series, 40 °C 350 A | (110 V) 2 Poles in Series, 60 °C 300 A | (110 V) 2 Poles in Series, 70 °C 240 A | (110 V) 3 Poles in Series, 40 °C 350 A | (110 V) 3 Poles in Series, 60 °C 300 A | (110 V) 3 Poles in Series, 70 °C 240 A | (175 V) 2 Poles in Series, 40 °C 350 A | (175 V) 2 Poles in Series, 60 °C 300 A | (175 V) 2 Poles in Series, 70 °C 240 A | (200 V) 2 Poles in Series, 40 °C 350 A | (200 V) 2 Poles in Series, 60 °C 300 A | (200 V) 2 Poles in Series, 70 °C 240 A | (220 V) 3 Poles in Series, 40 °C 350 A | (220 V) 3 Poles in Series, 60 °C 300 A | (220 V) 3 Poles in Series, 70 °C 240 A | (260 V) 3 Poles in Series, 40 °C 350 A | (260 V) 3 Poles in Series, 60 °C 300 A | (260 V) 3 Poles in Series, 70 °C 240 A | (300 V) 3 Poles in Series, 40 °C 350 A | (300 V) 3 Poles in Series, 60 °C 300 A | (300 V) 3 Poles in Series, 70 °C 240 A | (72 V) 1-Pole, 40 °C 350 A | (72 V) 1-Pole, 60 °C 300 A | (72 V) 1-Pole, 70 °C 240 A | (72 V) 2 Poles in Series, 40 °C 350 A | (72 V) 2 Poles in Series, 60 °C 300 A | (72 V) 2 Poles in Series, 70 °C 240 A | (72 V) 3 Poles in Series, 40 °C 350 A | (72 V) 3 Poles in Series, 60 °C 300 A | (72 V) 3 Poles in Series, 70 °C 240 A | (90 V) 1 Pole, 40 °C 350 A | (90 V) 1 Pole, 60 °C 300 A | (90 V) 1 Pole, 70 °C 240 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 275 A | (110 V) 2 Poles in Series, 60 °C 275 A | (110 V) 2 Poles in Series, 70 °C 240 A | (110 V) 3 Poles in Series, 40 °C 275 A | (110 V) 3 Poles in Series, 60 °C 275 A | (110 V) 3 Poles in Series, 70 °C 240 A | (220 V) 3 Poles in Series, 40 °C 275 A | (220 V) 3 Poles in Series, 60 °C 275 A | (220 V) 3 Poles in Series, 70 °C 240 A | (72 V) 2 Poles in Series, 40 °C 275 A | (72 V) 2 Poles in Series, 60 °C 275 A | (72 V) 2 Poles in Series, 70 °C 240 A | (72 V) 3 Poles in Series, 40 °C 275 A | (72 V) 3 Poles in Series, 60 °C 275 A | (72 V) 3 Poles in Series, 70 °C 240 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 275 A | (110 V) 2 Poles in Series, 60 °C 275 A | (110 V) 2 Poles in Series, 70 °C 240 A | (110 V) 3 Poles in Series, 40 °C 275 A | (110 V) 3 Poles in Series, 60 °C 275 A | (110 V) 3 Poles in Series, 70 °C 240 A | (220 V) 3 Poles in Series, 40 °C 275 A | (220 V) 3 Poles in Series, 60 °C 275 A | (220 V) 3 Poles in Series, 70 °C 240 A | (72 V) 2 Poles in Series, 40 °C 275 A | (72 V) 2 Poles in Series, 60 °C 275 A | (72 V) 2 Poles in Series, 70 °C 240 A | (72 V) 3 Poles in Series, 40 °C 275 A | (72 V) 3 Poles in Series, 60 °C 275 A | (72 V) 3 Poles in Series, 70 °C 240 A
Rated Operational Power AC-3 (Pe)
(415 V) 110 kW | (440 V) 132 kW | (500 V) 110 kW | (690 V) 160 kW | (1000 V) 132 kW | (380 / 400 V) 110 kW | (220 / 230 / 240 V) 55 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1640 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 350 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 670 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2050 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 947 A
Rated Insulation Voltage (Ui)
acc. to UL/CSA 1000 V
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 7 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 7 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 220 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 220 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 190 W
Power Loss
8 W | at Rated Operating Conditions per Pole 8 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 275 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 60 hp | (220 ... 240 V AC) Three Phase 75 hp | (440 ... 480 V AC) Three Phase 150 hp | (550 ... 600 V AC) Three Phase 200 hp
Full Load Amps Motor Use
(200 ... 208 V AC) Three Phase 177 A | (220 ... 240 V AC) Three Phase 192 A | (440 ... 480 V AC) Three Phase 180 A | (550 ... 600 V AC) Three Phase 192 A
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)116(B)-**(RT) to AF(S)205(B)-**(RT)
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF190 - AF370
CB Certificate
SE-82315
CQC Certificate
CQC Certificate, AC Contactor, AF190-*-*-*, AF205-*-*-*, AF190B-*-*-*, AF205B-*-*-*, AFS190-30-*-*, AFS205-30-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF190-*-*-*, AF205-*-*-*, AF190B-*-*-*, AF205B-*-*-*, AFS190-30-*-*, AFS205-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116B...RT to AF370B...RT
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A - Rail application
EAC Certificate
9AKK107046A8618
UR Certificate
cURus certificate, Contactor, AF190B..RT - AF205B-30...RT
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Depth / Length
258 mm
Package Level 1 Height
235 mm
Package Level 1 Gross Weight
3 kg
Package Level 1 EAN
7320500510247
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
AF technology provides a wide control voltage range of 100–250 V AC/DC, enabling reliable coil operation despite supply variations. This reduces panel energy consumption and nuisance trips, improving line availability and uptime. The AF approach also supports DC operation, making it suitable for mixed-control environments in material handling and packaging lines. For new builds, the robust coil performance simplifies supplier selection and lowers risk during installation. Three main NO contacts plus two NO and two NC auxiliary contacts enable full motor control and signaling without extra hardware. This reduces wiring complexity, minimizes interconnection errors, and shortens commissioning times. In practice, engineers wire start/stop loops and PLC feedback in a single housing, enabling straightforward integration with ABB protection devices and the broader motor control ecosystem. Rated operational power and current are designed for demanding AC-3 duty; for example, up to 132 kW at 1000 V and 205 A at 440–480 V, with 165 A at 690 V and 100 A at 1000 V depending on voltage class. This performance supports reliable motor starts and acceleration without oversizing components. Paired with surge protection, the contactor handles transients typical in pumps and extruders, reducing fault rates and maintenance. Add-on auxiliary contacts allow expansion without reorganizing the cabinet, and the block design makes retrofits straightforward. The compatibility with multiple accessories and standard DIN rail architecture accelerates installation and future upgrades, while main-circuit bars offer robust current handling and compact footprint. Durability figures include 5 million mechanical operations and 8 W power loss per pole under rated conditions, delivering predictable life-cycle costs. With a maximum of 300 cycles per hour for switching, it suits mid- to high-demand manufacturing lines where reliability matters and maintenance windows are limited.
