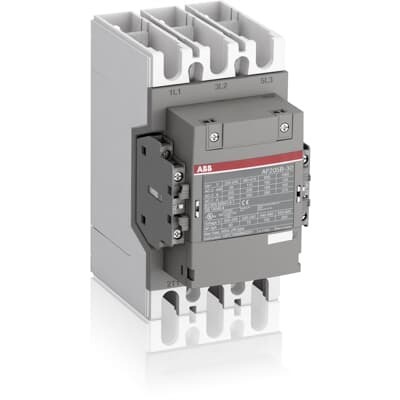

ABB 1SFL527063R1322 Contactor - CE/UL Certified
Part Number: 1SFL527063R1322
Quick Summary
ABB 1SFL527063R1322 Contactor is a 3-pole motor starter designed to switch three-phase motors up to 110 kW at 400 V AC in industrial drives. In practice, engineers contend with voltage variation and energy waste that degrade efficiency and reliability. AF technology in this model broadens the control voltage range and includes built-in surge protection to maintain stable operation even in unstable networks. The block design supports easy expansion with add-on auxiliary contact blocks, enabling scalable automation without rewiring. It complies with IEC/EN 60947-1, IEC/EN 60947-4-1, UL/CSA, CE, and UKCA standards, delivering reliable performance and cross-regional certifications for global assemblies.
Product Information
Extended Description
1SFL527063R1322 ABB: The AF205B-30-22-13 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 110 kW / 400 V AC (AC-3) or 150 hp / 480 V UL and switching power circuits up to 350 A (AC-1) or 300 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (100-250 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
105 mm
Product Net Depth / Length
152 mm
Product Net Height
196 mm
Product Net Weight
2.4 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 275 A | (1000 V) 60 °C 250 A | (1000 V) 70 °C 200 A | (690 V) 40 °C 350 A | (690 V) 60 °C 300 A | (690 V) 70 °C 240 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 205 A | (440 V) 55 °C 205 A | (500 V) 55 °C 165 A | (690 V) 55 °C 165 A | (1000 V) 55 °C 100 A | (380 / 400 V) 55 °C 205 A | (220 / 230 / 240 V) 55 °C 205 A
Rated Operational Current DC-1 (Ie)
(100 V) 1 Pole, 40 °C 350 A | (100 V) 1 Pole, 60 °C 300 A | (100 V) 1 Pole, 70 °C 240 A | (110 V) 2 Poles in Series, 40 °C 350 A | (110 V) 2 Poles in Series, 60 °C 300 A | (110 V) 2 Poles in Series, 70 °C 240 A | (110 V) 3 Poles in Series, 40 °C 350 A | (110 V) 3 Poles in Series, 60 °C 300 A | (110 V) 3 Poles in Series, 70 °C 240 A | (175 V) 2 Poles in Series, 40 °C 350 A | (175 V) 2 Poles in Series, 60 °C 300 A | (175 V) 2 Poles in Series, 70 °C 240 A | (200 V) 2 Poles in Series, 40 °C 350 A | (200 V) 2 Poles in Series, 60 °C 300 A | (200 V) 2 Poles in Series, 70 °C 240 A | (220 V) 3 Poles in Series, 40 °C 350 A | (220 V) 3 Poles in Series, 60 °C 300 A | (220 V) 3 Poles in Series, 70 °C 240 A | (260 V) 3 Poles in Series, 40 °C 350 A | (260 V) 3 Poles in Series, 60 °C 300 A | (260 V) 3 Poles in Series, 70 °C 240 A | (300 V) 3 Poles in Series, 40 °C 350 A | (300 V) 3 Poles in Series, 60 °C 300 A | (300 V) 3 Poles in Series, 70 °C 240 A | (72 V) 1-Pole, 40 °C 350 A | (72 V) 1-Pole, 60 °C 300 A | (72 V) 1-Pole, 70 °C 240 A | (72 V) 2 Poles in Series, 40 °C 350 A | (72 V) 2 Poles in Series, 60 °C 300 A | (72 V) 2 Poles in Series, 70 °C 240 A | (72 V) 3 Poles in Series, 40 °C 350 A | (72 V) 3 Poles in Series, 60 °C 300 A | (72 V) 3 Poles in Series, 70 °C 240 A | (90 V) 1 Pole, 40 °C 350 A | (90 V) 1 Pole, 60 °C 300 A | (90 V) 1 Pole, 70 °C 240 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 275 A | (110 V) 2 Poles in Series, 60 °C 275 A | (110 V) 2 Poles in Series, 70 °C 240 A | (110 V) 3 Poles in Series, 40 °C 275 A | (110 V) 3 Poles in Series, 60 °C 275 A | (110 V) 3 Poles in Series, 70 °C 240 A | (220 V) 3 Poles in Series, 40 °C 275 A | (220 V) 3 Poles in Series, 60 °C 275 A | (220 V) 3 Poles in Series, 70 °C 240 A | (72 V) 2 Poles in Series, 40 °C 275 A | (72 V) 2 Poles in Series, 60 °C 275 A | (72 V) 2 Poles in Series, 70 °C 240 A | (72 V) 3 Poles in Series, 40 °C 275 A | (72 V) 3 Poles in Series, 60 °C 275 A | (72 V) 3 Poles in Series, 70 °C 240 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 275 A | (110 V) 2 Poles in Series, 60 °C 275 A | (110 V) 2 Poles in Series, 70 °C 240 A | (110 V) 3 Poles in Series, 40 °C 275 A | (110 V) 3 Poles in Series, 60 °C 275 A | (110 V) 3 Poles in Series, 70 °C 240 A | (220 V) 3 Poles in Series, 40 °C 275 A | (220 V) 3 Poles in Series, 60 °C 275 A | (220 V) 3 Poles in Series, 70 °C 240 A | (72 V) 2 Poles in Series, 40 °C 275 A | (72 V) 2 Poles in Series, 60 °C 275 A | (72 V) 2 Poles in Series, 70 °C 240 A | (72 V) 3 Poles in Series, 40 °C 275 A | (72 V) 3 Poles in Series, 60 °C 275 A | (72 V) 3 Poles in Series, 70 °C 240 A
Rated Operational Power AC-3 (Pe)
(415 V) 110 kW | (440 V) 132 kW | (500 V) 110 kW | (690 V) 160 kW | (1000 V) 132 kW | (380 / 400 V) 110 kW | (220 / 230 / 240 V) 55 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1640 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 350 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 670 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2050 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 947 A
Rated Insulation Voltage (Ui)
acc. to UL/CSA 1000 V
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 7 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 7 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 220 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 220 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 190 W
Power Loss
8 W | at Rated Operating Conditions per Pole 8 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 275 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 60 hp | (220 ... 240 V AC) Three Phase 75 hp | (440 ... 480 V AC) Three Phase 150 hp | (550 ... 600 V AC) Three Phase 200 hp
Full Load Amps Motor Use
(200 ... 208 V AC) Three Phase 177 A | (220 ... 240 V AC) Three Phase 192 A | (440 ... 480 V AC) Three Phase 180 A | (550 ... 600 V AC) Three Phase 192 A
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)116(B)-**(RT) to AF(S)205(B)-**(RT)
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF190 - AF370
CB Certificate
SE-82315
CQC Certificate
CQC Certificate, AC Contactor, AF190-*-*-*, AF205-*-*-*, AF190B-*-*-*, AF205B-*-*-*, AFS190-30-*-*, AFS205-30-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF190-*-*-*, AF205-*-*-*, AF190B-*-*-*, AF205B-*-*-*, AFS190-30-*-*, AFS205-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116B...RT to AF370B...RT
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A - Rail application
EAC Certificate
9AKK107046A8618
KC Certificate
KC Certificate, Contactor, AF190-30...AF205-30 (Sweden)
UL Certificate
cULus Certificate, Contactor, AF190-30, AF205-30, AFS190-30, AFS205-30
Package Level 1 Units
box 1 piece
Package Level 1 Width
160 mm
Package Level 1 Depth / Length
258 mm
Package Level 1 Height
235 mm
Package Level 1 Gross Weight
3 kg
Package Level 1 EAN
7320500511206
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
E-Number (Sweden)
3210446
AF technology broadens the coil control range and provides built-in surge protection, enabling stable operation despite supply fluctuations. This reduces panel energy waste and eliminates unnecessary coil re-energization. Ideal for packaging lines and conveyor systems where control signals vary and reliability matters. 3-pole main circuit rated up to 1000 V and high current (AC-1 up to 275 A; AC-3 up to 165 A) supports motors up to 110 kW at 400 V, simplifying panel design and reducing the need for oversized components in general-purpose drives. The result is a compact, cost-efficient installation with easier wiring and maintenance. Two auxiliary NO/NC contacts provide immediate feedback and interlock capabilities without separate modules, improving machine safety and diagnostics. The AF block design allows seamless expansion with add-on contact blocks, minimizing wiring changes during upgrades or reconfigurations. Coil consumption values indicate pull-in at 190 W (DC) and holding at rated voltage around 7 VA, with total power loss near 8 W per pole under rated conditions, contributing to cooler cabinets and lower energy bills in continuous operation. Block-type design enables easy expansion with add-on auxiliary contact blocks and a wide range of accessories, supporting scalable automation without rewiring existing panels. This design reduces install time and inventory complexity for machine builders and system integrators.
