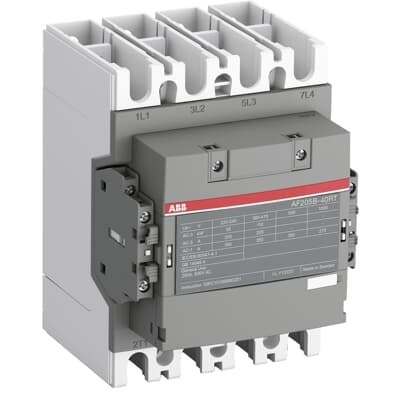

ABB AF205B-40-22RT-12 Contactor - UL/CSA 1000V 275A
Part Number: 1SFL527262R1222
Quick Summary
ABB AF205B-40-22RT-12 Contactor is a 4-pole motor starter for AC motors up to 110 kW at 400 V. In industrial panels, control voltage swings often cause nuisance tripping; AF technology tolerates wide control voltages, reducing misoperation. It carries CE and UL/CSA approvals with cURus and CCC declarations for global compliance. Designed for reliable energy-efficient motor control in harsh environments, it supports easy expansion and robust diagnostics. Leveraging ABB's AF technology alongside 48–130 V control ranges helps simplify panel design and procurement. This model combines surge protection with a compact block design to deliver dependable performance in demanding automation environments. Overall, it supports scalable, efficient motor control across multiple regions and applications.
Product Information
Extended Description
1SFL527262R1222 ABB: The AF205B-40-22RT-12 is a 4 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and ring tongue ferrules, controlling motors up to 110 kW / 400 V AC (AC-3) / and switching power circuits up to 350 A (AC-1) or 250 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
140 mm
Product Net Depth / Length
152.5 mm
Product Net Height
196 mm
Product Net Weight
3.3 kg
Number of Main Contacts NO
4
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
4P
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 275 A | (1000 V) 60 °C 250 A | (1000 V) 70 °C 200 A | (690 V) 40 °C 350 A | (690 V) 60 °C 300 A | (690 V) 70 °C 240 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 205 A | (440 V) 55 °C 205 A | (380 / 400 V) 55 °C 205 A | (220 / 230 / 240 V) 55 °C 205 A
Rated Operational Current DC-1 (Ie)
(100 V) 1 Pole, 40 °C 350 A | (100 V) 1 Pole, 60 °C 300 A | (100 V) 1 Pole, 70 °C 240 A | (110 V) 2 Poles in Series, 40 °C 350 A | (110 V) 2 Poles in Series, 60 °C 300 A | (110 V) 2 Poles in Series, 70 °C 240 A | (110 V) 3 Poles in Series, 40 °C 350 A | (110 V) 3 Poles in Series, 60 °C 300 A | (110 V) 3 Poles in Series, 70 °C 240 A | (175 V) 2 Poles in Series, 40 °C 350 A | (175 V) 2 Poles in Series, 60 °C 300 A | (175 V) 2 Poles in Series, 70 °C 240 A | (200 V) 2 Poles in Series, 40 °C 350 A | (200 V) 2 Poles in Series, 60 °C 300 A | (200 V) 2 Poles in Series, 70 °C 240 A | (220 V) 3 Poles in Series, 40 °C 350 A | (220 V) 3 Poles in Series, 60 °C 300 A | (220 V) 3 Poles in Series, 70 °C 240 A | (260 V) 3 Poles in Series, 40 °C 350 A | (260 V) 3 Poles in Series, 60 °C 300 A | (260 V) 3 Poles in Series, 70 °C 240 A | (300 V) 3 Poles in Series, 40 °C 350 A | (300 V) 3 Poles in Series, 60 °C 300 A | (300 V) 3 Poles in Series, 70 °C 240 A | (350 V) 4 Poles in Series, 40 °C 350 A | (350 V) 4 Poles in Series, 60 °C 300 A | (350 V) 4 Poles in Series, 70 °C 240 A | (400 V) 4 Poles in Series, 40 °C 350 A | (400 V) 4 Poles in Series, 60 °C 300 A | (400 V) 4 Poles in Series, 70 °C 240 A | (72 V) 1-Pole, 40 °C 350 A | (72 V) 1-Pole, 60 °C 300 A | (72 V) 1-Pole, 70 °C 240 A | (72 V) 2 Poles in Series, 40 °C 350 A | (72 V) 2 Poles in Series, 60 °C 300 A | (72 V) 2 Poles in Series, 70 °C 240 A | (72 V) 3 Poles in Series, 40 °C 350 A | (72 V) 3 Poles in Series, 60 °C 300 A | (72 V) 3 Poles in Series, 70 °C 240 A | (90 V) 1 Pole, 40 °C 350 A | (90 V) 1 Pole, 60 °C 300 A | (90 V) 1 Pole, 70 °C 240 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 275 A | (110 V) 2 Poles in Series, 60 °C 275 A | (110 V) 2 Poles in Series, 70 °C 240 A | (110 V) 3 Poles in Series, 40 °C 275 A | (110 V) 3 Poles in Series, 60 °C 275 A | (110 V) 3 Poles in Series, 70 °C 240 A | (220 V) 3 Poles in Series, 40 °C 275 A | (220 V) 3 Poles in Series, 60 °C 275 A | (220 V) 3 Poles in Series, 70 °C 240 A | (72 V) 2 Poles in Series, 40 °C 275 A | (72 V) 2 Poles in Series, 60 °C 275 A | (72 V) 2 Poles in Series, 70 °C 240 A | (72 V) 3 Poles in Series, 40 °C 275 A | (72 V) 3 Poles in Series, 60 °C 275 A | (72 V) 3 Poles in Series, 70 °C 240 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 275 A | (110 V) 2 Poles in Series, 60 °C 275 A | (110 V) 2 Poles in Series, 70 °C 240 A | (110 V) 3 Poles in Series, 40 °C 275 A | (110 V) 3 Poles in Series, 60 °C 275 A | (110 V) 3 Poles in Series, 70 °C 240 A | (220 V) 3 Poles in Series, 40 °C 275 A | (220 V) 3 Poles in Series, 60 °C 275 A | (220 V) 3 Poles in Series, 70 °C 240 A | (72 V) 2 Poles in Series, 40 °C 275 A | (72 V) 2 Poles in Series, 60 °C 275 A | (72 V) 2 Poles in Series, 70 °C 240 A | (72 V) 3 Poles in Series, 40 °C 275 A | (72 V) 3 Poles in Series, 60 °C 275 A | (72 V) 3 Poles in Series, 70 °C 240 A
Rated Operational Power AC-3 (Pe)
(415 V) 110 kW | (440 V) 132 kW | (500 V) 132 kW | (690 V) 160 kW | (1000 V) 132 kW | (380 / 400 V) 110 kW | (220 / 230 / 240 V) 55 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 1640 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 350 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 670 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2050 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 947 A
Rated Insulation Voltage (Ui)
acc. to UL/CSA 1000 V
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 48 ... 130 V | DC Operation 48 ... 130 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 4 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 4 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 180 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 180 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 150 W
Power Loss
25 W | at Rated Operating Conditions per Pole 25 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 275 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 30 Hp | (200 V AC) Three Phase 60 hp | (208 V AC) Three Phase 60 hp | (220 ... 240 V AC) Three Phase 30 Hp | (220 ... 240 V AC) Three Phase 75 hp | (440 ... 480 V AC) Three Phase 75 Hp | (440 ... 480 V AC) Three Phase 150 hp | (550 ... 600 V AC) Three Phase 100 Hp | (550 ... 600 V AC) Three Phase 200 hp
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)116(B)-**(RT) to AF(S)205(B)-**(RT)
Environmental Product Declaration - EPD
Environmental Product Declaration, AF190-AF205 (SE) Contactors
Improved Energy Efficiency for Customers
Product Efficiency - Product requires less energy to operate compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 79.2 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 35 %
CB Certificate
SEMKO_SE-77322
CQC Certificate
CQC Certificate, AC Contactor, AF190-*-*-*, AF205-*-*-*, AF190B-*-*-*, AF205B-*-*-*, AFS190-30-*-*, AFS205-30-*-*, Made in Sweden
cURus Certificate
cURus certificate, Contactor, AF190B..RT-AF205B-40...RT
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF190-*-*-*, AF205-*-*-*, AF190B-*-*-*, AF205B-*-*-*, AFS190-30-*-*, AFS205-30-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116B...RT to AF370B...RT
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A - Rail application
EAC Certificate
9AKK107046A8618
UR Certificate
cURus certificate, Contactor, AF190B..RT-AF205B-40...RT
Package Level 1 Units
box 1 piece
Package Level 1 Width
166 mm
Package Level 1 Depth / Length
238 mm
Package Level 1 Height
180 mm
Package Level 1 Gross Weight
3.9 kg
Package Level 1 EAN
7320500510278
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
