ABB 1SFL547062R1122 Block Contactor - IEC/UL 1000 V
Part Number: 1SFL547062R1122
Quick Summary
ABB 1SFL547062R1122 Block Contactor enables reliable motor control for three-phase industrial drives in automation and processing plants. This AF technology-based device accommodates wide control voltage variations, reducing panel energy consumption and preventing nuisance trips in unstable networks. It carries essential global certifications such as IEC/EN 60947-1, IEC/EN 60947-4-1, and UL 60947-4-1, with CE and UKCA declarations to support worldwide deployment. By combining a compact footprint with pre-mounted auxiliary contacts and surge protection, it simplifies panel design and installation. For engineers seeking scalable motor protection and control in demanding environments, this contactor delivers predictable performance and improved ROI through extended life and flexible expansion options.
Product Information
Extended Description

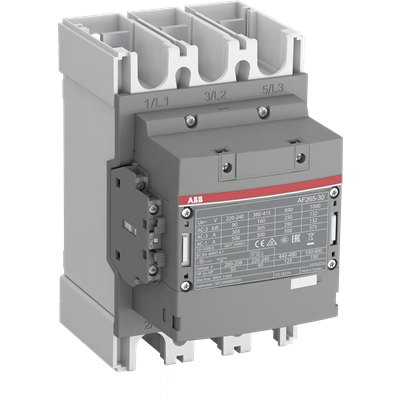

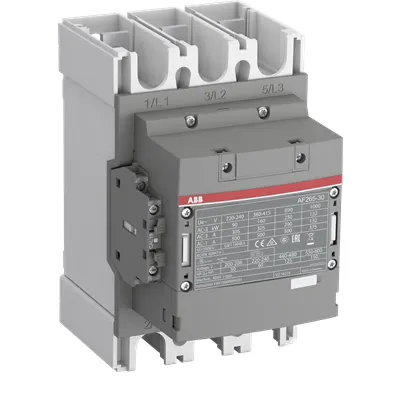

1SFL547062R1122 ABB: The AF265B-30-22RT-11 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and ring tongue ferrules, controlling motors up to 132 kW / 400 V AC (AC-3) or 200 hp / 480 V UL and switching power circuits up to 400 A (AC-1) or 350 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (24-60 V 50/60 Hz and 20-60 V DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing, Contactor, AF265, AF305,AF370
Product Net Width
140 mm
Product Net Depth / Length
180 mm
Product Net Height
225 mm
Product Net Weight
3.9 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 350 A | (1000 V) 60 °C 300 A | (1000 V) 70 °C 240 A | (690 V) 40 °C 400 A | (690 V) 60 °C 350 A | (690 V) 70 °C 290 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 265 A | (440 V) 55 °C 265 A | (500 V) 55 °C 250 A | (690 V) 55 °C 250 A | (1000 V) 55 °C 100 A | (380 / 400 V) 55 °C 265 A | (220 / 230 / 240 V) 55 °C 265 A
Rated Operational Current DC-1 (Ie)
(100 V) 1 Pole, 40 °C 400 A | (100 V) 1 Pole, 60 °C 350 A | (100 V) 1 Pole, 70 °C 290 A | (110 V) 1-Pole, 40 °C 400 A | (110 V) 1-Pole, 60 °C 350 A | (110 V) 1-Pole, 70 °C 290 A | (110 V) 2 Poles in Series, 40 °C 400 A | (110 V) 2 Poles in Series, 60 °C 350 A | (110 V) 2 Poles in Series, 70 °C 290 A | (110 V) 3 Poles in Series, 40 °C 400 A | (110 V) 3 Poles in Series, 60 °C 350 A | (110 V) 3 Poles in Series, 70 °C 290 A | (175 V) 2 Poles in Series, 40 °C 400 A | (175 V) 2 Poles in Series, 60 °C 350 A | (175 V) 2 Poles in Series, 70 °C 290 A | (200 V) 2 Poles in Series, 40 °C 400 A | (200 V) 2 Poles in Series, 60 °C 350 A | (200 V) 2 Poles in Series, 70 °C 290 A | (220 V) 2 Poles in Series, 40 °C 400 A | (220 V) 2 Poles in Series, 60 °C 350 A | (220 V) 2 Poles in Series, 70 °C 290 A | (220 V) 3 Poles in Series, 40 °C 400 A | (220 V) 3 Poles in Series, 60 °C 350 A | (220 V) 3 Poles in Series, 70 °C 290 A | (260 V) 3 Poles in Series, 40 °C 400 A | (260 V) 3 Poles in Series, 60 °C 350 A | (260 V) 3 Poles in Series, 70 °C 290 A | (300 V) 3 Poles in Series, 40 °C 400 A | (300 V) 3 Poles in Series, 60 °C 350 A | (300 V) 3 Poles in Series, 70 °C 290 A | (340 V) 3 Poles in Series, 40 °C 400 A | (340 V) 3 Poles in Series, 60 °C 350 A | (340 V) 3 Poles in Series, 70 °C 290 A | (72 V) 1-Pole, 40 °C 400 A | (72 V) 1-Pole, 60 °C 350 A | (72 V) 1-Pole, 70 °C 290 A | (72 V) 2 Poles in Series, 40 °C 400 A | (72 V) 2 Poles in Series, 60 °C 350 A | (72 V) 2 Poles in Series, 70 °C 290 A | (72 V) 3 Poles in Series, 40 °C 400 A | (72 V) 3 Poles in Series, 60 °C 350 A | (72 V) 3 Poles in Series, 70 °C 290 A | (90 V) 1 Pole, 40 °C 400 A | (90 V) 1 Pole, 60 °C 350 A | (90 V) 1 Pole, 70 °C 290 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 350 A | (110 V) 2 Poles in Series, 60 °C 350 A | (110 V) 2 Poles in Series, 70 °C 290 A | (110 V) 3 Poles in Series, 40 °C 350 A | (110 V) 3 Poles in Series, 60 °C 350 A | (110 V) 3 Poles in Series, 70 °C 290 A | (220 V) 3 Poles in Series, 40 °C 350 A | (220 V) 3 Poles in Series, 60 °C 350 A | (220 V) 3 Poles in Series, 70 °C 290 A | (72 V) 2 Poles in Series, 40 °C 350 A | (72 V) 2 Poles in Series, 60 °C 350 A | (72 V) 2 Poles in Series, 70 °C 290 A | (72 V) 3 Poles in Series, 40 °C 350 A | (72 V) 3 Poles in Series, 60 °C 350 A | (72 V) 3 Poles in Series, 70 °C 290 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 350 A | (110 V) 2 Poles in Series, 60 °C 350 A | (110 V) 2 Poles in Series, 70 °C 290 A | (110 V) 3 Poles in Series, 40 °C 350 A | (110 V) 3 Poles in Series, 60 °C 350 A | (110 V) 3 Poles in Series, 70 °C 290 A | (220 V) 3 Poles in Series, 40 °C 350 A | (220 V) 3 Poles in Series, 60 °C 350 A | (220 V) 3 Poles in Series, 70 °C 290 A | (72 V) 2 Poles in Series, 40 °C 350 A | (72 V) 2 Poles in Series, 60 °C 350 A | (72 V) 2 Poles in Series, 70 °C 290 A | (72 V) 3 Poles in Series, 40 °C 350 A | (72 V) 3 Poles in Series, 60 °C 350 A | (72 V) 3 Poles in Series, 70 °C 290 A
Rated Operational Power AC-3 (Pe)
(415 V) 132 kW | (440 V) 160 kW | (500 V) 200 kW | (690 V) 200 kW | (1000 V) 132 kW | (380 / 400 V) 132 kW | (220 / 230 / 240 V) 75 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2120 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 400 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 865 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2650 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1224 A
Rated Insulation Voltage (Ui)
acc. to UL/CSA 1000 V
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 24 ... 60 V | DC Operation 20 ... 60 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 8.5 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 8.5 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 475 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 475 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 400 W
Power Loss
14 W | at Rated Operating Conditions per Pole 14 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
NEMA Size
5
Continuous Current Rating NEMA
270 A
Horsepower Rating NEMA
(200 V AC) Three Phase 75 Hp | (230 V AC) Three Phase 100 Hp | (460 V AC) Three Phase 200 Hp | (575 V AC) Three Phase 200 Hp
General Use Rating UL/CSA
(1000 V AC) 350 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 75 hp | (220 ... 240 V AC) Three Phase 100 hp | (440 ... 480 V AC) Three Phase 200 hp | (550 ... 600 V AC) Three Phase 250 hp
Full Load Amps Motor Use
(200 ... 208 V AC) Three Phase 221 A | (220 ... 240 V AC) Three Phase 248 A | (440 ... 480 V AC) Three Phase 240 A | (550 ... 600 V AC) Three Phase 242 A
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)265(B)-**(RT) to AF(S)370(B)-**(RT)
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)265-AF(S)370 (SE)
Improved Energy Efficiency for Customers
Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 76.3 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 33 %
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF190 - AF370
CB Certificate
SE-89316
CQC Certificate
CQC Certificate, AC Contactor, AF265-*-*-*,AF305-*-*-*,AF370-*-*-*,AF265B-*-*-*,AF305B-*-*-*,AF370B-*-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF265-*-*-*,AF305-*-*-*,AF370-*-*-*,AF265B-*-*-*,AF305B-*-*-*,AF370B-*-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116B...RT to AF370B...RT
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A - Rail application
EAC Certificate
9AKK107046A8618
UR Certificate
cURus certificate, Contactors, AF265B...RT - AF370B-30...RT
Package Level 1 Units
box 1 piece
Package Level 1 Width
263 mm
Package Level 1 Depth / Length
203 mm
Package Level 1 Height
289 mm
Package Level 1 Gross Weight
4.6 kg
Package Level 1 EAN
7320500510308
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Feature: 3-pole main circuit rated for up to 1000 V. Business Impact: Enables motor control for high-voltage applications up to 132 kW AC-3, delivering robust switching for conveyors, pumps, and machine tools. Application: Ideal for heavy-duty automation where reliability and high voltage isolation are required. Feature: AF technology with wide control voltage range (24-60 V AC, 20-60 V DC). Business Impact: Tolerates large control voltage variations, reducing panel energy consumption and trip incidents in networks with fluctuating supply. Application: Suitable for systems with varying control signals, improving uptime and reducing wiring complexity. Feature: Built-in surge protection and compact, block-type design. Business Impact: Protects coils and load while saving panel space and enabling quick installation. Application: Useful in compact control cabinets and retrofit projects. Feature: Pre-mounted auxiliary contacts (2 NO + 2 NC) and compatibility with add-on blocks. Business Impact: Accelerates wiring, simplifies expansion, and enables flexible control logic without separate accessories. Application: Commonly used for interlocking, feedback, and remote signaling in machine control. Feature: Mechanical durability rated at 5 million cycles and 14 W per pole power loss. Business Impact: Lower maintenance costs and consistent performance over long service life. Application: Ideal for high-cycle applications and continuous operation environments. Feature: Dimensions 140 mm × 180 mm × 225 mm with 3.9 kg weight. Business Impact: Space-efficient installation, easy handling, and simplified procurement. Application: Suitable for integrated motor control panels where space is at a premium.
