ABB 1SFL547074R8111 Contactor - UL/CE Certified
Part Number: 1SFL547074R8111
Quick Summary
ABB 1SFL547074R8111 Contactor is a high‑current motor switch ideal for conveyors, pumps, and processing lines in industrial plants. This model helps address crowded control panels and tight wiring by delivering a compact footprint and reliable switching performance. It carries CE, UL, and CCC certifications, and features IP40 protection for auxiliary terminals, supporting safe operation in challenging environments. Designers benefit from a 24 V control circuit and insulation up to 690 V, enabling straightforward integration with standard automation architectures. With solid lifetime ratings and predictable electrical behavior, it translates into measurable uptime, reduced maintenance, and lower total cost of ownership for motor-driven systems.
Product Information
Extended Description

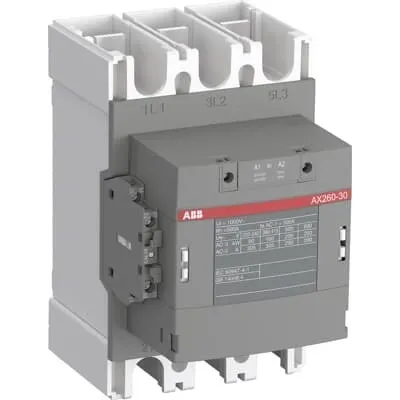

1SFL547074R8111 ABB: AX260-30-11-81 Contactor
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
1SFC101062M0201_E
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
140 mm
Product Net Depth / Length
180 mm
Product Net Height
225 mm
Product Net Weight
4.7 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 250 A
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 400 A | (690 V) 55 °C 350 A | (690 V) 70 °C 290 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 265 A | (440 V) 55 °C 265 A | (500 V) 55 °C 250 A | (690 V) 55 °C 250 A | (380 / 400 V) 55 °C 265 A | (220 / 230 / 240 V) 55 °C 265 A
Rated Operational Power AC-3 (Pe)
(415 V) 132 kW | (440 V) 160 kW | (500 V) 160 kW | (690 V) 200 kW | (380 / 400 V) 132 kW | (220 / 230 / 240 V) 75 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2120 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 400 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 865 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 2650 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1224 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (Uimp)
8 kV
Maximum Electrical Switching Frequency
300 cycles per hour
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 24 V | 60 Hz 24 V
Power Loss
at Rated Operating Conditions per Pole 14 W
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CQC Certificate
CQC Certificate, Contactor, AX260, AX300, AX370, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AX260, AX300, AX370, Made in China
Declaration of Conformity - CE
CE Declaration of conformity - Contactor - AX95...AX370
UL Certificate
cULus Certificate, Contactor, AF265, AF305, AF370, AX260, AX300, AX370, AFS265, AFS305, AFS370
Package Level 1 Units
box 1 piece
Package Level 1 Width
175 mm
Package Level 1 Depth / Length
270 mm
Package Level 1 Height
223 mm
Package Level 1 Gross Weight
5.4 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature: Three main NO contacts and one auxiliary NO + one NC contact provide flexible motor control for three‑phase loads. Benefit: Enables reliable start/stop sequences and control logic, reducing wiring complexity and enabling smoother start-ups in packaging lines and material handling applications. Application: Suitable for three‑pole motor circuits in manufacturing lines. Feature: Rated operational voltage up to 1000 V mains, with insulation rated at 690 V. Benefit: Supports high‑voltage motor drives and robust insulation margins, improving system safety and reducing the need for oversized accessories. Application: Heavy-duty conveyors and pumps operating near high voltage thresholds. Feature: AC‑3 rated current up to 265 A (various voltages), plus up to 400 A at 690 V for AC‑1. Benefit: Handles high inrush and continuous running loads with predictable thermal performance, increasing line uptime and reducing failure rates. Application: Large motor starters and driven equipment in process industries. Feature: 24 V control circuit (U_c) with compatibility for 50 Hz and 60 Hz systems. Benefit: Simplifies integration with common PLCs and automation cabinets, lowering wiring costs and_time to commissioning_. Application: Standard industrial control panels and PLC interfaces. Feature: Mechanical durability rated at 5 million cycles and electrical switching capability up to 300 cycles per hour, plus IP40 protection. Benefit: Delivers long service life and dependable operation in busy factory environments, minimizing maintenance windows. Application: Continuous operation environments with frequent switching. Feature: Compact dimensions (W 140 mm x D 180 mm x H 225 mm) and weight 4.7 kg with a 3P design. Benefit: Easier installation in compact control cabinets and on standard mounting rails, saving panel space and installation time. Application: OEM and retrofit projects where space is at a premium.
