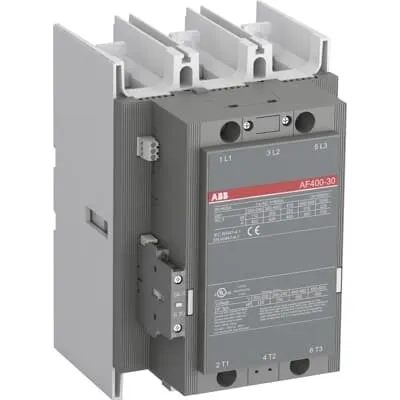

ABB 1SFL577001R9103 Block Contactor - UL/CE Certified
Part Number: 1SFL577001R9103
Quick Summary
Block Contactor ABB 1SFL577001R9103 controls three-phase motors in industrial drive systems. Fluctuating control voltages and surge transients can cause nuisance trips and premature wear. CE and UKCA markings support regulatory compliance, while UL/CSA certification confirms safe North American use; RoHS and REACH declarations ensure material compliance. With AF technology delivering a wide control voltage range of 100–250 V and built-in surge protection, this block contactor helps reduce panel energy use and simplify integration in demanding environments.
Product Information
Extended Description
1SFL577001R9103 ABB: The AF400F-30-11 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, for Fire Pump applications, controlling motors up to 200 kW / 400 V AC (AC-3) or 350 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 550 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (220-240 V 50/60 Hz), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
1SFC380023-en
Instructions and Manuals (Part 2)
FirePump Contactors AF400F, AF460F, AF580F, AF750F
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
186 mm
Product Net Depth / Length
216 mm
Product Net Height
278 mm
Product Net Weight
10.6 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 600 A | (1000 V) 55 °C 500 A | (1000 V) 70 °C 400 A | (690 V) 40 °C 600 A | (690 V) 55 °C 500 A | (690 V) 70 °C 400 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 400 A | (440 V) 55 °C 400 A | (500 V) 55 °C 400 A | (690 V) 55 °C 350 A | (1000 V) 55 °C 155 A | (380 / 400 V) 55 °C 400 A | (220 / 230 / 240 V) 55 °C 400 A
Rated Operational Power AC-3 (Pe)
(415 V) 220 kW | (440 V) 220 kW | (500 V) 250 kW | (690 V) 315 kW | (1000 V) 220 kW | (380 / 400 V) 200 kW | (220 / 230 / 240 V) 110 kW
Mechanical Durability
3 million
Rated Control Circuit Voltage (Uc)
50 Hz 100 ... 250 V | 60 Hz 100 ... 250 V | DC Operation 100 ... 250 V
Power Loss
at Rated Operating Conditions per Pole 16 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 550 A
Horsepower Rating UL/CSA
(200 V AC) Three Phase 125 hp | (208 V AC) Three Phase 125 hp | (220 ... 240 V AC) Three Phase 150 hp | (440 ... 480 V AC) Three Phase 350 hp | (550 ... 600 V AC) Three Phase 400 hp
Full Load Amps Motor Use
(440 ... 480 V AC) Three Phase 414 A | (550 ... 600 V AC) Three Phase 382 A
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)400(B)-**;AF(S)460(B)-**;AF460N6
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)400-AF(S)460 (SE)
CB Certificate
SE-82316
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400...AF2850
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
PRS Certificate
PRS Certificate - AF116...AF1650
UL Certificate
cULus Certificate, Contactor, AF400, AF460, AFS400, AFS460
Package Level 1 Units
box 1 piece
Package Level 1 Width
280 mm
Package Level 1 Depth / Length
375 mm
Package Level 1 Height
310 mm
Package Level 1 Gross Weight
12 kg
Package Level 1 EAN
7320500223130
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
Feature: 3P block contactor with pre-mounted auxiliary contacts and main circuit bars. Business Impact: Simplified wiring, faster panel assembly, and reduced footprint in control cabinets, enabling tighter layouts and lower installation costs. Application: Motor control and fire pump circuits in industrial plants. Feature: AF technology provides a wide control voltage range of 100–250 V AC/DC and robust performance in unstable networks. Business Impact: Fewer nuisance trips, improved reliability, and enhanced energy efficiency in variable power conditions. Application: HVAC and process motors where supply voltage fluctuates. Feature: Built-in surge protection and compact block design. Business Impact: Enhanced protection of control circuits and reduced need for external protection devices, lowering BOM and maintenance costs. Application: OEM and retrofit projects requiring durable, maintenance-friendly starters. Feature: Add-on auxiliary contact blocks supported by a block-type design. Business Impact: Flexible expansion for monitoring and interlock schemes without reconfiguring the control panel. Application: Safety interlocks and remote signaling in heavy-duty machinery. Feature: Global certifications and compliance (CE, UKCA, UL) plus RoHS/REACH. Business Impact: Easy regulatory approvals across markets, accelerating time-to-production. Application: Global deployment in automotive, water treatment, and manufacturing facilities. Feature: Rated performance data (AC-1 and AC-3, power ratings, and torque specs) aligned with UL/CSA guidelines. Business Impact: Predictable motor starting torque and reliable overload protection, reducing downtime. Application: High-demand motors up to 200 kW and 600 A, across 380–1000 V systems.
Get a Quick Quote for a ABB 1SFL577001R9103
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL577001R9103?
Enquire Now
FAQs
Install as a 3P device using main circuit bars for the load connections and mount add-on auxiliary contact blocks if signaling or interlocking is required. Ensure the main circuit rating supports up to 1000 V and choose control voltage within 100–250 V. Use proper torque on terminals and provide adequate ventilation to prevent overheating in continuous duty applications.
AC‑1 rated current at 1000 V ranges up to 600 A at 40–70 °C depending on ambient. AC‑3 ratings vary by voltage (e.g., 415–690 V ranges with currents from 155–400 A) and correspond to motor starting and switching duties. Power ratings span up to 315 kW at higher voltages, aligning with UL/CSA guidelines for motor control.
Yes. The AF400F family design, including AF contactors with pre-mounted auxiliary contacts and robust surge protection, is intended for fire pump applications, offering reliable switching and protection in critical pumps where steady control is essential.
The device carries CE and UKCA markings, UL/cULus certification, and supporting declarations for RoHS, REACH, and CMRT. It is designed for global deployment with compliance aligned to North American and European standards.
AF technology provides a wide control voltage range, reducing tripping risk in networks with voltage variations and enabling energy efficiency. Built-in surge protection lowers external protection needs, while the compact, modular block design simplifies installation and future upgrades, contributing to lower maintenance costs and faster mean time to repair.
