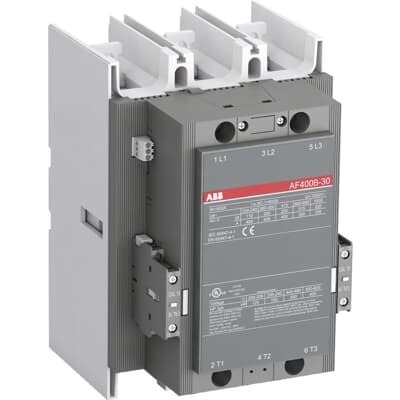

ABB AF400B-30-22-71 Block Contactor - 1000 V IEC
Part Number: 1SFL577063R7122
Quick Summary
ABB AF400B-30-22-71 is a 3-pole contactor for motor control up to 200 kW at 400 V AC. In demanding panels, wide control voltage variation can cause nuisance trips and energy waste; AF technology mitigates this by tolerating 250–500 V AC, plus DC, with built‑in surge protection. The device carries CE and UL/cULus approvals along with several additional certificates, enabling global deployment. Its compact block design, pre-mounted auxiliary contacts, and easy expansion with add-on contact blocks deliver scalable control for factory automation. This combination provides reliable motor switching, simplified installation, and lower maintenance costs in industrial applications such as conveyors, pumps, and fans.
Product Information
Extended Description
1SFL577063R7122 ABB: The AF400B-30-22-71 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 200 kW / 400 V AC (AC-3) or 350 hp / 480 V UL and switching power circuits up to 600 A (AC-1) or 550 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100192C0206
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
1SFC380023-en
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
53540919-59
Product Net Width
186 mm
Product Net Depth / Length
216 mm
Product Net Height
278 mm
Product Net Weight
10.6 kg
Rated Control Circuit Voltage (Uc)
50 Hz 250 ... 500 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 12 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 885 V·A
Connecting Capacity Main Circuit
Bar 47 mm² | Rigid Al-Cable 2x240 mm² | Rigid Cu-Cable 240 mm²
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 1x 0.75 ... 2.5 mm² | Solid 2x 1 ... 4 mm² | Stranded 2x 1 ... 4 mm²
Connecting Capacity
Bar 47 mm² | Rigid Al-Cable 2x240 mm² | Rigid Cu-Cable 240 mm²
Recommended Screw Driver
Control Circuit M3.5 | Control Circuit Pozidriv 2
Tightening Torque
Cable Lug 35 N·m | Main Circuit 35 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 550 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 50 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)400(B)-**;AF(S)460(B)-**;AF460N6
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)400-AF(S)460 (SE)
Improved Energy Efficiency for Customers
Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 63.1 %
ABS Certificate
ABS Certificate, Contactor, AF400...AF2050 (Sweden)
BV Certificate
BV Certificate, Contactor, AF400 ... AF2850
CB Certificate
SE-82316
CCS Certificate
CCS Certificate, Contactor, AF116 to AF2850 (Sweden)
CQC Certificate
CQC Certificate, AC Contactor, AF400-30-*-*,AF460-30-*-*,AFS400-30-*-*, AFS460-30-*-*, Made in Sweden | CQC Certificate, Contactor, AF400, AF460, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF400-30-*-*,AF460-30-*-*,AFS400-30-*-*, AFS460-30-*-*, Made in Sweden | CCC Declaration of Conformity, Contactor, AF400, AF460, Made in China
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF400B...AF2850B
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
DNV Certificate
DNV_E-10966
DNV GL Certificate
DNV Certificate, Contactor, AF400...AF2850
EAC Certificate
9AKK107046A8618
GL Certificate
GL_42988-02HH
LR Certificate
Lloyds register Certificate, Contactor, AF400...AF2850
RINA Certificate
RINA Certificate, AF95, AF110, AF145, AF185, AF210, AF260, AF300, AF400, AF460, AF580, AF750, AF1250, AF1350, AF1650, AF2050, AF2650, AF116, AF140, AF146, AF190, AF205, AF265, AF305, AF370
RMRS Certificate
9AKK107045A6978
UL Certificate
cULus Certificate, Contactor, AF400, AF460, AFS400, AFS460
Package Level 1 Units
box 1 piece
Package Level 1 Width
280 mm
Package Level 1 Depth / Length
375 mm
Package Level 1 Height
310 mm
Package Level 1 Gross Weight
12 kg
Package Level 1 EAN
7320500217870
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
Feature: 3-pole design with capability to control motors up to 200 kW at 400 V AC. Impact: Supports large motor loads with a single device, reducing inventory and enabling compact switchgear. Application: Suitable for heavy conveyors and pumping systems in manufacturing. Feature: AF technology with a wide control voltage range of 250–500 V (AC) and DC. Impact: Tolerates voltage fluctuations in unstable networks, minimizing trips and improving reliability. Application: Industrial motor control in environments with voltage variations. Feature: Built‑in surge protection. Impact: Protects the coil and contacts from transient spikes, extending component life and reducing maintenance. Application: Harsh factory floors and high‑transient switching applications. Feature: Pre-mounted auxiliary contacts and block-type design, with easy expansion via add‑on blocks. Impact: Simplifies wiring, enables scalable control schemes, and lowers installation time. Application: Control logic for multi‑stage motor protection schemes. Feature: High current and AC‑1/AC‑3 ratings (600 A UL/550 A UL general use; 600 A AC‑1). Impact: Ensures robust switching of large power circuits with compliant protection. Application: Industrial motor starters and power circuits in process industries. Feature: Main circuit connection via bars and support for large cross-sections (Bar 47 mm²; rigid Al/Cu cables up to 240 mm²). Impact: Provides solid, low-resistance connections with predictable thermal performance. Application: Panel and switchgear assemblies demanding reliable terminations.
Get a Quick Quote for a ABB 1SFL577063R7122
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL577063R7122?
Enquire Now
FAQs
This device is a 3-pole block contactor designed for main circuits using bar or large-diameter conductors, with a 186 mm width, 216 mm depth, and 278 mm height. It supports pre-mounted auxiliary contacts and can be extended with add-on blocks, making it compatible with standard ABB AF400 accessory ecosystems and common switchgear layouts.
The AF400B-30-22-71 features a wide control circuit voltage range of 250–500 V AC (50/60 Hz) and compatible DC operation. Coil consumption is 12 VA holding at max rated voltage and 885 VA pull-in, enabling stable operation in networks with fluctuating control signals while maintaining reliable pickup and release performance.
Yes. With a 3-pole configuration, 600 A UL/AC‑1 ratings, and motor control capability up to 200 kW at 400 V, it is well-suited for conveyors, pumps, fans, and other high‑demand loads. Built-in surge protection and AF technology help maintain performance in fluctuating supply conditions typical of these applications.
The AF400B-30-22-71 carries CE declarations of conformity and UL/cULus listings, plus multiple third‑party certifications such as CB, BV, GL, LR, DNV, and RINA. These approvals support global deployment and regulatory compliance across markets with strict electrical safety and performance requirements.
The design includes pre-mounted auxiliary contacts and a block style that is easy to extend with add-on blocks, enabling scalable control without replacing the base unit. Built‑in surge protection and AF technology reduce nuisance trips and wear on components, contributing to lower maintenance costs and longer service intervals in industrial environments.
