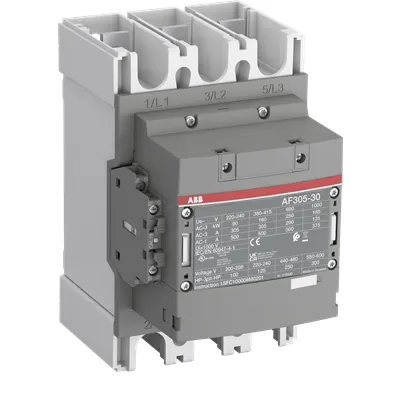

ABB AF305-30-22-43 Block Contactor - UL/CSA
Part Number: 1SFL587002R4322
Quick Summary
The ABB AF305-30-22-43 Block Contactor is designed for safe motor switching in industrial drives. In systems with voltage fluctuations, coil lag can lead to nuisance tripping; AF technology delivers faster operate times and reliable operation, reducing downtime. This device carries CE and UL/CSA certifications, plus UKCA marking, reflecting robust regulatory compliance for global installations. Its compact block design, built-in surge protection, and compatibility with auxiliary contact blocks simplify panel wiring and future expansion, lowering installation and maintenance costs. Coil consumption is optimized for holding and pulldown currents, contributing to lower energy use in control circuits.
Product Information
Extended Description
1SFL587002R4322 ABB: The AF305-30-22-43 is a 3 pole - 1000 V IEC or 600 V UL contactor with Main Circuit Bars, controlling motors up to 160 kW / 400 V AC (AC-3) or 250 hp / 480 V UL and switching power circuits up to 500 A (AC-1) or 400 A UL general use. Thanks to the AF technology, the contactor has a control voltage range (220-240 V 50/60 Hz),faster operation time, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
8536490099
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
160 mm
Product Net Depth / Length
180 mm
Product Net Height
225 mm
Product Net Weight
3.9 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 50 / 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 500 A
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 375 A | (1000 V) 60 °C 325 A | (1000 V) 70 °C 260 A | (690 V) 40 °C 500 A | (690 V) 60 °C 400 A | (690 V) 70 °C 325 A
Rated Operational Current AC-3 (Ie)
(415 V) 60 °C 305 A | (440 V) 60 °C 305 A | (500 V) 60 °C 290 A | (690 V) 60 °C 290 A | (1000 V) 60 °C 131 A | (380 / 400 V) 60 °C 305 A | (220 / 230 / 240 V) 60 °C 305 A
Rated Operational Power AC-3 (Pe)
(415 V) 160 kW | (440 V) 160 kW | (500 V) 200 kW | (690 V) 250 kW | (1000 V) 185 kW | (380 / 400 V) 160 kW | (220 / 230 / 240 V) 90 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2440 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 996 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3050 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1409 A
Maximum Breaking Capacity
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 4600 A | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 3800 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V | acc. to UL/CSA 1000 V
Rated Impulse Withstand Voltage (Uimp)
Main Circuit 8 kV
Maximum Electrical Switching Frequency
(AC-1) 300 cycles per hour | (AC-2 / AC-4) 150 cycles per hour | (AC-3) 300 cycles per hour
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz 220 ... 240 V | 60 Hz 220 ... 240 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 20 V·A | Holding at Max. Rated Control Circuit Voltage 50 Hz 4.5 W | Holding at Max. Rated Control Circuit Voltage 60 Hz 20 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 4.5 W | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 385 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 385 V·A
Power Loss
at Rated Operating Conditions AC-1 per Pole 50 W | at Rated Operating Conditions AC-3 per Pole 19 W
Operate Time
Between Coil De-energization and NO Contact Opening 20 ... 30 ms | Between Coil Energization and NO Contact Closing 20 ... 35 ms
Connecting Capacity Auxiliary Circuit
Flexible with Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Ferrule 2x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm² | Flexible with Insulated Ferrule 2x 0.75 ... 2.5 mm² | Flexible 1x 0.75 ... 2.5 mm² | Flexible 2x 0.75 ... 2.5 mm² | Solid 1x 1 ... 4 mm² | Solid 2x 1 ... 4 mm² | Stranded 1x 1 ... 4 mm² | Stranded 2x 1 ... 4 mm²
Connecting Capacity
Flexible 2 x 70 ... 185 mm² | Rigid Al-Cable 1 x 185 ... 240 mm² | Rigid Cu-Cable 2 x 70 ... 185 mm²
Wire Stripping Length
Auxiliary Circuit 9 mm | Control Circuit 9 mm
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20 | acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP00
Recommended Screw Driver
Main Circuit M10 | Control Circuit M3.5
Tightening Torque
Auxiliary Circuit 1 N·m | Cable Lug 28 N·m | Control Circuit 1 N·m | Main Circuit 22 ... 43 N·m
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Maximum Operating Voltage UL/CSA
Main Circuit 1000 V
General Use Rating UL/CSA
(1000 V AC) 400 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 100 hp | (220 ... 240 V AC) Three Phase 125 hp | (440 ... 480 V AC) Three Phase 250 hp | (550 ... 600 V AC) Three Phase 300 hp
Tightening Torque UL/CSA
Auxiliary Circuit 9 in·lb | Control Circuit 9 in·lb | Main Circuit 372 in·lb
Full Load Amps Motor Use
(200 ... 208 V AC) Three Phase 285 A | (220 ... 240 V AC) Three Phase 312 A | (440 ... 480 V AC) Three Phase 302 A | (550 ... 600 V AC) Three Phase 289 A
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)265(B)-**(RT) to AF(S)370(B)-**(RT)
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)265-AF(S)370 (SE)
Improved Energy Efficiency for Customers
Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 76.3 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 33 %
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF190 - AF370
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116...AF370
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A
UL Certificate
cULus Certificate, Contactor, AF265, AF305, AF370, AX260, AX300, AX370, AFS265, AFS305, AFS370
Package Level 1 Units
box 1 piece
Package Level 1 Width
263 mm
Package Level 1 Depth / Length
203 mm
Package Level 1 Height
289 mm
Package Level 1 Gross Weight
4.6 kg
Package Level 1 EAN
7320500561164
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4758 >> Iec Contactors
The AF305-30-22-43 Block Contactor leverages AF technology with built-in surge protection to deliver faster switching and more stable operation, translating into measurable uptime improvements and reduced panel energy consumption. This 3-pole (3P) device uses main circuit bars for robust, low-resistance connections, handling main circuit voltages up to 1000 V and operating currents suitable for AC-3 motor loads up to 305 A at higher voltages, or 375 A in AC-1 configurations, supporting motors up to 160 kW. The 220-240 V control coil at 50/60 Hz enables reliable activation across typical European and North American networks, while the 2 NO auxiliary contacts provide flexible control logic around the main circuit. The unit is designed for easy expansion with add-on auxiliary contact blocks, simplifying future automation upgrades without rewiring. Its compact footprint, protected terminals (IP20 coil, IP00 main), and standardized torque specs (Main Circuit 22–43 N·m) reduce installation time and torque-related failures. In practice, this means lower lifecycle costs, easier maintenance, and improved compliance with industrial safety and energy-efficiency targets. The block design also supports efficient panel layouts, while the ability to operate in harsh environments up to 70 °C and up to 3,000 m altitude without derating ensures reliability in a wide range of facilities. Compatibility with a broad ecosystem of ABB accessories, including 2x auxiliary NO/NC and block-type expansion options, makes retrofits and upgrades straightforward for existing motor control centers. Industry professionals increasingly favor the AF-series for its balance of rugged performance, regulatory alignment (CE, UL/CSA, UKCA), and a clear path to scalable automation.
Get a Quick Quote for a ABB 1SFL587002R4322
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL587002R4322?
Enquire Now
FAQs
Yes. The AF305-30-22-43 is designed for high-voltage main circuits up to 1000 V and supports AC-3 motor control duty. It uses 3 main NO contacts and 2 auxiliary NO/NC contacts, with main circuit bars for robust connections. Coil voltage is 220–240 V at 50/60 Hz, and it accepts flexible or rigid conductors with appropriate lugs and torque values.
The device provides AC-3 rated current up to 305 A at 690–1000 V depending on temperature, and AC-1 up to 375 A at 1000 V. Rated operating power reaches up to 250 kW at 690 V for AC-3, with a maximum breaking capacity of 4600 A cos phi=0.45 at 440 V and 3800 A at 690 V. Short-time withstand currents reach several kiloamperes for brief pulses.
Ideal for heavy-duty motor control in HVAC, pumping, conveying, and material handling applications, especially where 3P motor loads up to 160 kW are used. Its compact block design, surge protection, and add-on auxiliary contact capability support scalable automation projects across manufacturing, packaging lines, water treatment, and process industries requiring reliable AC-3 and AC-1 operation.
This model is CE declared and UL/CSA listed, with UKCA marking for the UK market. It complies with RoHS and REACH requirements, and ABB provides related declarations. The device carries IP ratings for coil and main terminals (IP20 and IP00 respectively) and meets standard electrical and safety guidelines for industrial installations.
AF technology delivers faster operate times and built-in surge protection, reducing nuisance trips and downtime. Coil consumption is optimized (holding and pull-in values provided for 50/60 Hz operation), contributing to lower control-circuit energy use. The ability to extend with auxiliary contact blocks simplifies future upgrades, lowering maintenance complexity and improving return on investment through reduced wiring changes and faster commissioning.
