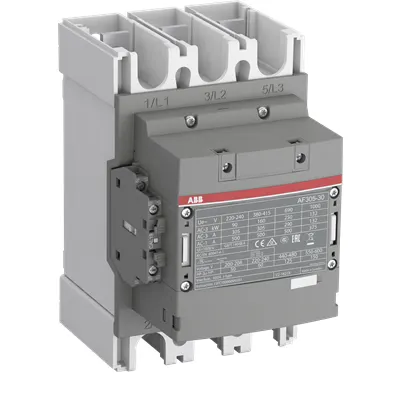

ABB 1SFL587063R1222 Contactor - IEC/UL 1000V Rated
Part Number: 1SFL587063R1222
Quick Summary
ABB 1SFL587063R1222 Contactor is a three-pole motor starter for reliable AC-3/AC-1 motor control in industrial drives. In variable networks and fluctuating control voltages, many panel-mounted starters trip or waste energy; this AF-based design maintains stable operation and reduces energy use. This device carries CE and UL/CSA listings with RoHS and REACH declarations, and is compatible with UKCA and EAC where required. Designed for easy extension with add-on auxiliary blocks, it simplifies panel integration and reduces spare parts inventory while delivering consistent performance in demanding environments. Its compact block form and wide voltage range support scalable, energy-efficient automation solutions.
Product Information
Extended Description
1SFL587063R1222 ABB: The AF305B-30-22-12 is a 3 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and standard ferrules, controlling motors up to 160 kW / 400 V AC (AC-3) or 250 hp / 480 V UL and switching power circuits up to 500 A (AC-1) or 400 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Data Sheet, Technical Information (Part 2)
Contactors and Overload relays guide
Instructions and Manuals
Operating instruction, Contactor, AF(S)190 ... AF(S)370
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Dimension Diagram
Dimension Drawing, Contactor, AF265, AF305,AF370
Product Net Width
140 mm
Product Net Depth / Length
180 mm
Product Net Height
225 mm
Product Net Weight
3.9 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
2
Number of Auxiliary Contacts NC
2
Number of Poles
3P
Standards
IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1, IEC 60077-1 (applicable parts), IEC 60077-2 (applicable parts), EN 50155 (applicable parts), TR CU 001/2011, IEC 61373, For compliance confirmation on applicable parts based on your application and combination, please consult your ABB sales representatives.
Rated Operational Voltage
Main Circuit 1000 V
Rated Operational Current AC-1 (Ie)
(1000 V) 40 °C 375 A | (1000 V) 60 °C 325 A | (1000 V) 70 °C 260 A | (690 V) 40 °C 500 A | (690 V) 60 °C 400 A | (690 V) 70 °C 325 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 305 A | (440 V) 55 °C 305 A | (500 V) 55 °C 290 A | (690 V) 55 °C 290 A | (1000 V) 55 °C 100 A | (380 / 400 V) 55 °C 305 A | (220 / 230 / 240 V) 55 °C 305 A
Rated Operational Current DC-1 (Ie)
(100 V) 1 Pole, 40 °C 500 A | (100 V) 1 Pole, 60 °C 400 A | (100 V) 1 Pole, 70 °C 325 A | (110 V) 1-Pole, 40 °C 500 A | (110 V) 1-Pole, 60 °C 400 A | (110 V) 1-Pole, 70 °C 325 A | (110 V) 2 Poles in Series, 40 °C 500 A | (110 V) 2 Poles in Series, 60 °C 400 A | (110 V) 2 Poles in Series, 70 °C 325 A | (110 V) 3 Poles in Series, 40 °C 500 A | (110 V) 3 Poles in Series, 60 °C 400 A | (110 V) 3 Poles in Series, 70 °C 325 A | (175 V) 2 Poles in Series, 40 °C 500 A | (175 V) 2 Poles in Series, 60 °C 400 A | (175 V) 2 Poles in Series, 70 °C 325 A | (200 V) 2 Poles in Series, 40 °C 500 A | (200 V) 2 Poles in Series, 60 °C 400 A | (200 V) 2 Poles in Series, 70 °C 325 A | (220 V) 2 Poles in Series, 40 °C 500 A | (220 V) 2 Poles in Series, 60 °C 400 A | (220 V) 2 Poles in Series, 70 °C 325 A | (220 V) 3 Poles in Series, 40 °C 500 A | (220 V) 3 Poles in Series, 60 °C 400 A | (220 V) 3 Poles in Series, 70 °C 325 A | (260 V) 3 Poles in Series, 40 °C 500 A | (260 V) 3 Poles in Series, 60 °C 400 A | (260 V) 3 Poles in Series, 70 °C 325 A | (300 V) 3 Poles in Series, 40 °C 500 A | (300 V) 3 Poles in Series, 60 °C 400 A | (300 V) 3 Poles in Series, 70 °C 325 A | (340 V) 3 Poles in Series, 40 °C 500 A | (340 V) 3 Poles in Series, 60 °C 400 A | (340 V) 3 Poles in Series, 70 °C 325 A | (72 V) 1-Pole, 40 °C 500 A | (72 V) 1-Pole, 60 °C 400 A | (72 V) 1-Pole, 70 °C 325 A | (72 V) 2 Poles in Series, 40 °C 500 A | (72 V) 2 Poles in Series, 60 °C 400 A | (72 V) 2 Poles in Series, 70 °C 325 A | (72 V) 3 Poles in Series, 40 °C 500 A | (72 V) 3 Poles in Series, 60 °C 400 A | (72 V) 3 Poles in Series, 70 °C 325 A | (90 V) 1 Pole, 40 °C 500 A | (90 V) 1 Pole, 60 °C 400 A | (90 V) 1 Pole, 70 °C 325 A
Rated Operational Current DC-3 (Ie)
(110 V) 2 Poles in Series, 40 °C 400 A | (110 V) 2 Poles in Series, 60 °C 400 A | (110 V) 2 Poles in Series, 70 °C 325 A | (110 V) 3 Poles in Series, 40 °C 400 A | (110 V) 3 Poles in Series, 60 °C 400 A | (110 V) 3 Poles in Series, 70 °C 325 A | (220 V) 3 Poles in Series, 40 °C 400 A | (220 V) 3 Poles in Series, 60 °C 400 A | (220 V) 3 Poles in Series, 70 °C 325 A | (72 V) 2 Poles in Series, 40 °C 400 A | (72 V) 2 Poles in Series, 60 °C 400 A | (72 V) 2 Poles in Series, 70 °C 325 A | (72 V) 3 Poles in Series, 40 °C 400 A | (72 V) 3 Poles in Series, 60 °C 400 A | (72 V) 3 Poles in Series, 70 °C 325 A
Rated Operational Current DC-5 (Ie)
(110 V) 2 Poles in Series, 40 °C 400 A | (110 V) 2 Poles in Series, 60 °C 400 A | (110 V) 2 Poles in Series, 70 °C 325 A | (110 V) 3 Poles in Series, 40 °C 400 A | (110 V) 3 Poles in Series, 60 °C 400 A | (110 V) 3 Poles in Series, 70 °C 325 A | (220 V) 3 Poles in Series, 40 °C 400 A | (220 V) 3 Poles in Series, 60 °C 400 A | (220 V) 3 Poles in Series, 70 °C 325 A | (72 V) 2 Poles in Series, 40 °C 400 A | (72 V) 2 Poles in Series, 60 °C 400 A | (72 V) 2 Poles in Series, 70 °C 325 A | (72 V) 3 Poles in Series, 40 °C 400 A | (72 V) 3 Poles in Series, 60 °C 400 A | (72 V) 3 Poles in Series, 70 °C 325 A
Rated Operational Power AC-3 (Pe)
(415 V) 160 kW | (440 V) 160 kW | (500 V) 200 kW | (690 V) 250 kW | (1000 V) 185 kW | (380 / 400 V) 160 kW | (220 / 230 / 240 V) 90 kW
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2440 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 996 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3050 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1409 A
Rated Insulation Voltage (Ui)
acc. to UL/CSA 1000 V
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Rated Control Circuit Voltage (Uc)
50 Hz / 60 Hz 48 ... 130 V | DC Operation 48 ... 130 V
Coil Consumption
Holding at Max. Rated Control Circuit Voltage 50 Hz 17 V·A | Holding at Max. Rated Control Circuit Voltage 60 Hz 17 V·A | Pull-in at Max. Rated Control Circuit Voltage 50 Hz 340 V·A | Pull-in at Max. Rated Control Circuit Voltage 60 Hz 340 V·A | Pull-in at Max. Rated Control Circuit Voltage DC 360 W
Power Loss
19 W | at Rated Operating Conditions per Pole 19 W
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
General Use Rating UL/CSA
(1000 V AC) 400 A
Horsepower Rating UL/CSA
(200 ... 208 V AC) Three Phase 100 hp | (220 ... 240 V AC) Three Phase 125 hp | (440 ... 480 V AC) Three Phase 250 hp | (550 ... 600 V AC) Three Phase 300 hp
Full Load Amps Motor Use
(200 ... 208 V AC) Three Phase 285 A | (220 ... 240 V AC) Three Phase 312 A | (440 ... 480 V AC) Three Phase 302 A | (550 ... 600 V AC) Three Phase 289 A
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
ABB EcoSolutions
Yes
ABB Site Meeting Group Waste To Landfill Target
Non-hazardous waste is sent to a landfill, where there is no alternative option available within 100km of a facility
End Of Life Disassembling Instructions
End-of-life instruction - AF(S)265(B)-**(RT) to AF(S)370(B)-**(RT)
Environmental Product Declaration - EPD
Environmental Product Declaration, Contactors, AF(S)265-AF(S)370 (SE)
Improved Energy Efficiency for Customers
Product Efficiency - Product considered more energy-efficient compared to similar product on market or older products from the same line
Recyclability Rate of the Product acc. to EN45555
Design for Closing Resource Loops - Standard EN45555 - 76.3 %
Sustainable Material Content in Product (wt. %)
Recycled Metal - 33 %
A2L Certificate – UL
UL Certificate of Compliance A2L, Contactor, AF190 - AF370
CB Certificate
SE-89316
CQC Certificate
CQC Certificate, AC Contactor, AF265-*-*-*,AF305-*-*-*,AF370-*-*-*,AF265B-*-*-*,AF305B-*-*-*,AF370B-*-*-*, Made in Sweden
Declaration of Conformity - CCC
CCC Declaration of Conformity, AC Contactor, AF265-*-*-*,AF305-*-*-*,AF370-*-*-*,AF265B-*-*-*,AF305B-*-*-*,AF370B-*-*-*, Made in Sweden
Declaration of Conformity - CE
CE Declaration of Conformity - Contactor - AF116B...RT to AF370B...RT
Declaration of Conformity - UKCA
UK Declaration of Conformity - Contactors >100A - Rail application
EAC Certificate
9AKK107046A8618
UL Certificate
cULus Certificate, Contactor, AF265, AF305, AF370, AX260, AX300, AX370, AFS265, AFS305, AFS370
Package Level 1 Units
box 1 piece
Package Level 1 Width
263 mm
Package Level 1 Depth / Length
203 mm
Package Level 1 Height
289 mm
Package Level 1 Gross Weight
4.6 kg
Package Level 1 EAN
7320500511053
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
E-Number (Sweden)
3210453
