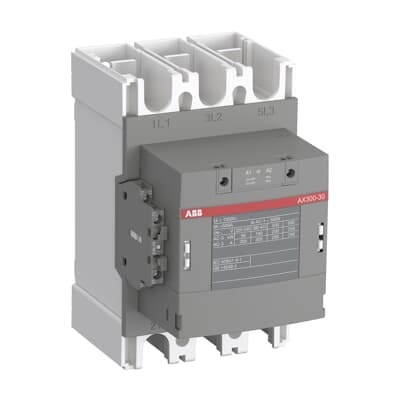

ABB 1SFL587074R8011 Block Contactor - UL & CE Certified
Part Number: 1SFL587074R8011
Quick Summary
ABB 1SFL587074R8011 Block Contactor provides robust motor switching for industrial drives and machinery. It helps minimize downtime by delivering reliable operation under demanding temperatures and frequent switching. UL certified, CE marked, and RoHS compliant, it aligns with global safety, environmental, and regulatory expectations. Engineered for 3P main circuits with a 1000 V insulation rating and 60 Hz control voltage, it integrates smoothly into standard ABB AX300 motor protection and control assemblies, reducing installation time and lifecycle costs while improving uptime and predictability in critical processes.
Product Information
Extended Description
1SFL587074R8011 ABB: AX300-30-11-80 Contactor
Minimum Order Quantity
1 piece
Customs Tariff Number
85364900
Data Sheet, Technical Information
1SBC100214C0202 - Main catalog Motor protection and control Manual motor starters, contactors and overload relays (PDF) - Edition 2024
Instructions and Manuals
1SFC101062M0201_E
CAD Dimensional Drawing
Information - 2D and 3D files for CAD systems
Product Net Width
140 mm
Product Net Depth / Length
180 mm
Product Net Height
225 mm
Product Net Weight
4.7 kg
Number of Main Contacts NO
3
Number of Main Contacts NC
0
Number of Auxiliary Contacts NO
1
Number of Auxiliary Contacts NC
1
Number of Poles
3P
Rated Operational Voltage
Main Circuit 1000 V
Rated Frequency (f)
Main Circuit 60 Hz
Conventional Free-air Thermal Current (Ith)
acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 250 A
Rated Operational Current AC-1 (Ie)
(690 V) 40 °C 500 A | (690 V) 55 °C 400 A | (690 V) 70 °C 325 A
Rated Operational Current AC-3 (Ie)
(415 V) 55 °C 305 A | (440 V) 55 °C 305 A | (500 V) 55 °C 290 A | (690 V) 55 °C 290 A | (380 / 400 V) 55 °C 305 A | (220 / 230 / 240 V) 55 °C 305 A
Rated Operational Power AC-3 (Pe)
(415 V) 160 kW | (440 V) 160 kW | (500 V) 200 kW | (690 V) 250 kW | (380 / 400 V) 160 kW | (220 / 230 / 240 V) 90 kW
Rated Breaking Capacity AC-3
8 x Ie AC-3
Rated Making Capacity AC-3
10 x Ie AC-3
Rated Short-time Withstand Current Low Voltage (Icw)
at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 2440 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 500 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 996 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 3050 A | at 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 1409 A
Rated Insulation Voltage (Ui)
acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V
Rated Impulse Withstand Voltage (Uimp)
8 kV
Maximum Electrical Switching Frequency
300 cycles per hour
Mechanical Durability
5 million
Maximum Mechanical Switching Frequency
300 cycles per hour
Coil Operating Limits
(acc. to IEC 60947-4-1) Uc (at θ ≤ 70 °C)
Rated Control Circuit Voltage (Uc)
50 Hz 220 ... 230 V | 60 Hz 230 ... 240 V
Power Loss
at Rated Operating Conditions per Pole 19 W
Degree of Protection
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP40
Terminal Type
Main Circuit: Bars
Product Name
Block Contactor
Ambient Air Temperature
Close to Contactor Fitted with Thermal O/L Relay (0.85 ... 1.1 Uc) -25 ... 55 °C | Close to Contactor without Thermal O/L Relay (0.85 ... 1.1 Uc) -40 ... 70 °C | Close to Contactor for Storage -40 ... 70 °C
Maximum Operating Altitude Permissible
Without Derating 3000 m
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
REACH - Letter of Confirmation for block contactors, contactor relays, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Information
RoHS II declaration for block contactors, installation contactors, mini contactors, mini contactor relays, thermal overload relays, electronic overload relays and related accessories
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) declaration for Contactors
WEEE B2C / B2B
Business To Business
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
CQC Certificate
CQC Certificate, Contactor, AX260, AX300, AX370, Made in China
Declaration of Conformity - CCC
CCC Declaration of Conformity, Contactor, AX260, AX300, AX370, Made in China
Declaration of Conformity - CE
CE Declaration of conformity - Contactor - AX95...AX370
UL Certificate
cULus Certificate, Contactor, AF265, AF305, AF370, AX260, AX300, AX370, AFS265, AFS305, AFS370
Package Level 1 Units
box 1 piece
Package Level 1 Width
175 mm
Package Level 1 Depth / Length
270 mm
Package Level 1 Height
223 mm
Package Level 1 Gross Weight
5.4 kg
Object Classification Code
Q
ETIM 7
EC000066 - Power contactor, AC switching
ETIM 8
EC000066 - Power contactor, AC switching
ETIM 9
EC000066 - Power contactor, AC switching
eClass
V11.0 : 27371003
UNSPSC
39121529
IDEA Granular Category Code (IGCC)
4755 >> Contactors
Feature → 3P main contacts and 1 NO auxiliary contact with 1 NC auxiliary contact; Business Impact → Enables integrated control wiring and compact panel layouts, reducing installation time and wiring errors; Application → Ideal for motor protection schemes in conveyors and pumps. Feature → Rated Operational Voltage of 1000 V for Main Circuit; Business Impact → Supports high-voltage motor applications with enhanced insulation margins, enabling broader plant deployment; Application → Suitable for heavy-duty industrial drives in automated lines. Feature → AC-3 and AC-1 current ratings up to 500 A (AC-1) and 305 A (AC-3); Business Impact → Safely drives large motors with predictable thermal performance, lowering overdimensioning and operating costs; Application → Fits demanding load profiles in material handling and process automation. Feature → Mechanical durability of 5 million cycles and maximum switching at 300 cycles per hour; Business Impact → Improves maintenance intervals and reduces spare part frequency, boosting overall uptime; Application → Suited for high-cycle control programs in manufacturing cells. Feature → Compact dimensions (140x180x225 mm) and weight (4.7 kg) with IP40 protection; Business Impact → Eases panel integration and heat management, reducing enclosure footprint and cooling needs; Application → Works in standard electrical cabinets and on DIN rails for efficient deployment. Feature → Comprehensive certifications and compliance (UL, CE, RoHS, REACH, TSCA); Business Impact → Lowers regulatory risk and accelerates procurement for global projects; Application → Ideal for multinational deployments requiring cross-border approvals.
Get a Quick Quote for a ABB 1SFL587074R8011
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SFL587074R8011?
Enquire Now
FAQs
This 3P device uses standard main contacts and a trio of poles with a compact footprint (140x180x225 mm, 4.7 kg). It features accessible auxiliary terminals (1 NO, 1 NC) and bars for the main circuit, simplifying panel mounting and wiring. Ensure adequate clearance for heat dissipation and follow IEC 60947-4-1 guidelines for safe operation.
For AC-1 operation at 690 V, the contactor supports up to 500 A (40 °C) and down to 325 A at 70 °C. For AC-3 operation, ratings vary by voltage: up to 305 A at 55 °C across several voltages (including 380–415–440–500–690 V). These ratings enable reliable motor starting and switching in demanding drives.
Yes. The coil accepts 50 Hz at 220–230 V and 60 Hz at 230–240 V, enabling seamless integration with common regional power systems and ABB AX300 motor protection ecosystems for unified control and protection.
The device carries UL certification and CE declarations, along with RoHS and REACH compliance. Additional standards include CCC and CQC certifications, ensuring regulatory alignment across North America, Europe, and China for global deployments.
With a mechanical durability of 5 million cycles and a rated switching frequency up to 300 cycles per hour, the unit reduces maintenance interruptions and spare-part replacement. Its high-current ratings and insulation margin minimize downtime during peak loads, delivering lower total cost of ownership in high-demand automation environments.
